John Deere 7200

The John Deere 7200 is a tractor produced by John Deere. It is equipped with a 359 ci 5.9 L engine. The rated power output is 94.29 hp 70.3 kW. Transmission: PowrQuad. Operating weight: 12678 lbs 5750 kg.

Overview

	1993 - 1996 7000 SeriesRow-Crop tractor
1993 - 1996
7000 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Original price was $50,000 in 1996

John Deere 7200 Engine
John Deere 5.9L 6-cyl diesel
Fuel tank	54 gal 204.4 L
Engine details ...

John Deere 7200 Power
PTO (claimed)	92 hp 68.6 kW
Drawbar (tested)	85.86 hp 64.0 kW
PTO (tested)	97.88 hp 73.0 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Valves	2 or 3

Tractor hitch
Rear Type	2/3N
Rear lift (at 24"/610mm)	6,858 lbs 3110 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	112.1 inches 284 cm
Weight	12678 lbs 5750 kg
Front tire	10.00x16
Rear tire	18.4x38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	John Deere 6068
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Air cleaner	dual paper elements
Compression	17.8:1
Rated RPM	2100
Starter volts	12

Transmission

Transmission options
12-speed fully synchronized
16-speed four-speed power shift

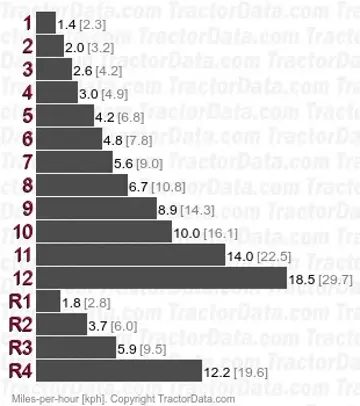

Transmission — SyncroPlus

Transmission	SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet disc
Optional transmission. Three gears, plus reverse, in three ranges.

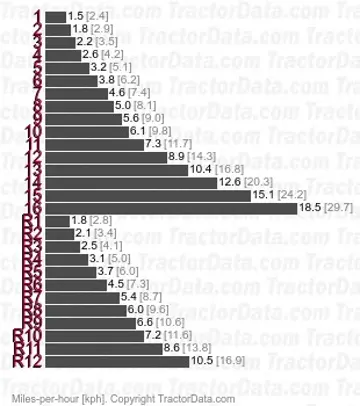

Transmission — PowrQuad

Transmission	PowrQuad
Type	four-speed power shift
Gears	16 forward and 12 reverse
Clutch	hydraulic wet disc
Standard transmission. Four power shift gears in three ranges.

Dimensions

John Deere 7200 Tires
Ag front	10.00x16
Ag rear	18.4x38

Dimensions
Wheelbase	112.1 inches 284 cm
Operating weight	12678 lbs*Four-wheel drive PowrQuad with single rear wheels. 5750 kg

Tests

Tractor Tests
OECD 1678: diesel SyncroPlus 4WD
OECD 1679: diesel PowrQuad 4WD

OCED Tractor Test 1678
Diesel SyncroPlus 4WD May 10 - June 1, 1994 Link: OCED Tractor Test 1678 file
PTO performance
Max power	95.06 hp 70.9 kW
Fuel use	5.2 gal/hour 19.7 l/hour
Power at rated engine speed	94.02 hp 70.1 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Drawbar performance
Max power	82.70 hp 61.7 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Max pull	12,254 lbs 5558 kg

OCED Tractor Test 1679
Diesel PowrQuad 4WD May 11 - June 2, 1994 Link: OCED Tractor Test 1679 file
PTO performance
Max power	97.88 hp 73.0 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Power at rated engine speed	94.29 hp 70.3 kW
Fuel use	5.5 gal/hour 20.8 l/hour
Drawbar performance
Max power	85.86 hp 64.0 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Max pull	12,440 lbs 5642 kg
