John Deere 7200R

The John Deere 7200R is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The rated power output is 200 hp 149.1 kW. Transmission: John Deere AutoPowr IVT. Drive type: 4x2 2WD (optional). Operating weight: 18104 to 26335 pounds.

Overview

	2011 - 2013 7R SeriesRow-Crop tractor
2011 - 2013
7R Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA

John Deere 7200R Engine
John Deere 6.8L 6-cyl diesel
Fuel tank	133 gal (PowrQuad) 503.4 L
	138 gal (IVT) 522.3 L
Engine details ...

John Deere 7200R Power
Engine (gross)	200 hp 149.1 kW
Engine (max)	220 hp 164.1 kW
PTO (claimed)	164 hp 122.3 kW
Drawbar (tested)	154.77 hp 115.4 kW
PTO (tested)	197.02 hp 146.9 kW
Performance test details ...

Mechanical
Drive	4x2 2WD (optional)
	4x4 MFWD 4WD
Differential lock	full-locking electrohydraulic rear. Limited slip 4WD front axle. Electrohydraulic on TLS Plus front axle with front brakes.
Steering	hydrostatic power
	ActiveCommand Steering optional
CommandView II Cab. AutoTrac ready, except on 2WD. ISO 1178.3 ISOBUS connection. JDLink and Service ADVISOR Remote available.

Hydraulics
Type	closed-center pressure and flow compensated (PFC)
Pressure	2958 psi 204.0 bar
Rear valves	6 (max)
Mid valves	0 to 2
Pump flow	32 gpm 121.1 lpm
	43 gpm (optional) 162.8 lpm
	59 gpm (optional) 223.3 lpm
SCV flow	35 gpm 132.5 lpm

Tractor hitch
Rear Type	3/3N
Control	electrohydraulic sensing
Rear lift	12,000 lbs 5443 kg
	15,200 lbs (optional) 6894 kg
Front Hitch	3N (optional)
Front lift	11,464 lbs 5200 kg
Drawbar	Category 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
	540/1000 (1.375/1.75)
	540/540E/1000 (1.375/1.75)
	540/540E/1000/1000E (1.375/1.75)
Engine RPM	540@1950
	540E@1750
	1000@1950
	1000E@1950
Front PTO	optional
Front PTO Type	1000 (1.375)
	1000 (1.75)

Dimensions & Tires
2WD Wheelbase	119.4 inches 303 cm
4WD Wheelbase	115.2 inches 292 cm
Weight	18104 to 26335 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	925
Battery volts	12

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	414 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier 4A
Emission control	exhaust gas recirculation (EGR)
Rated Power (gross)	200 hp 149.1 kW
Maximum Power (gross)	220 hp 164.1 kW
Fuel system	electronic high-pressure common rail
Air cleaner	dual stage dry
Compression	17.2:1
Rated RPM	2100
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed partial power shift
20-speed partial power shift
20-speed power shift
infinitely variable transmission

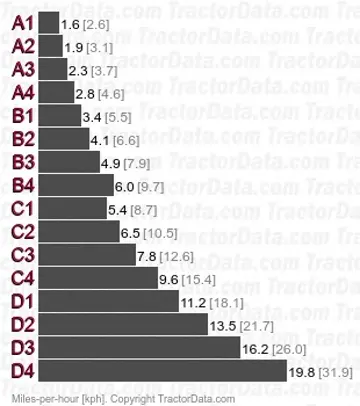

Transmission — John Deere PowrQuad Plus

Transmission	John Deere PowrQuad Plus
Type	partial power shift
Gears	16 forward and reverse
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Push-button power shifting between gears. Synchronized shifting between ranges using the foot clutch, or de-clutch button. Power shuttle shifting between forward and reverse.
With Group 47 rear tires.

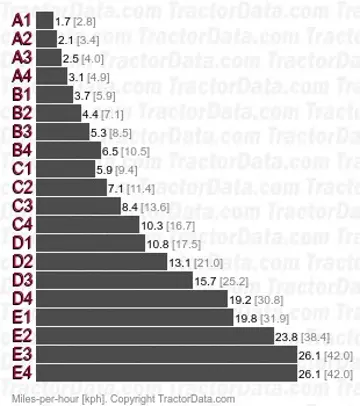

Transmission — John Deere AutoQuad Plus

Transmission	John Deere AutoQuad Plus
Type	partial power shift
Gears	20 forward and reverse
The AutoQuad transmission adds automatic shifting to the PowrQuad. The tractor will automatically shift between two or all four gears within a range to maintain load.
With Group 47 rear tires.

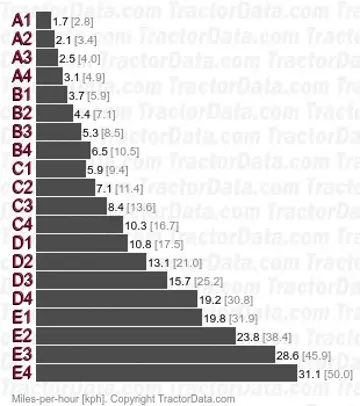

Transmission — John Deere CommandQuad Eco

Transmission	John Deere CommandQuad Eco
Type	power shift
Gears	20 forward and reverse
The CommandQuad transmission uses a single shift control lever, with automatic gear and range shifting. CommandQuad available with 40 kph or 50 kph top speeds.
With Group 47 rear tires. 40 kph transmission has lower speeds in E3 and E4.

Transmission — John Deere AutoPowr IVT

Transmission	John Deere AutoPowr IVT
Type	infinitely variable transmission
Gears	infinite forward and reverse

Dimensions

John Deere 7200R Tires

Dimensions
2WD Wheelbase	119.4 inches 303 cm
4WD Wheelbase	115.2 inches 292 cm
Front axle	1150 Series standard
Front axle	Triple-Link Suspension Plus optional
Front axle	2WD optional inch diameter 50 mm
Standard axle rear axle	3.94 by 118.5 inches 100 by 3009 mm
Rear axle	3.94 by 100.4 inches 100 by 2550 mm
Rear axle	3.94 by 110.5 inches 100 by 2806 mm
Front tread	60 to 88 inches 152 to 223 cm

John Deere 7200R Weight
2WD	18,104 lbs 8211 kg
4WD	23,080 lbs 10469 kg
TLS Plus	26,335 lbs 11945 kg
Max capacity	31,967 lbs 14500 kg
Max front axle	14,330 lbs 6500 kg
Max rear axle	23,149 lbs 10500 kg

Tests

OCED Tractor Test 2021
Diesel Autoquad Plus 4WD April 26 - May 15, 2012 Link: OCED Tractor Test 2021 file
PTO performance
Max power	197.02 hp 146.9 kW
Fuel use	11.1 gal/hour 42.0 l/hour
Power at rated engine speed	169.95 hp 126.7 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Power at rated PTO speed	190.62 hp 142.1 kW
Fuel use	11.0 gal/hour 41.6 l/hour
Drawbar performance
Max power	154.77 hp 115.4 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Max pull	20642 lbs 9363 kg
