John Deere 7215R

2011 - 2013

7R Series

Row-Crop tractor

Manufacturer

John Deere

Row-Crop tractor

Built in Waterloo, Iowa, USA

John Deere 6.8L 6-cyl diesel

Fuel tank

133 gal (PowrQuad) 503.4 L

138 gal (IVT) 522.3 L

Engine (gross)

215 hp 160.3 kW

Engine (max)

237 hp 176.7 kW

PTO (claimed)

178 hp 132.7 kW

Drawbar (tested)

172.34 hp 128.5 kW

PTO (tested)

216.29 hp 161.3 kW

Four-wheel drive

Differential lock

full-locking electrohydraulic rear. Limited slip front axle. Electrohydraulic on TLS Plus front axle with front brakes.

Steering

hydrostatic power

ActiveCommand Steering optional

CommandView II Cab. AutoTrac ready. ISO 1178.3 ISOBUS connection. JDLink and Service ADVISOR Remote available.

Type

closed-center pressure and flow compensated (PFC)

Pressure

2958 psi 204.0 bar

Rear valves

6 (max)

Mid valves

0 to 2

Pump flow

32 gpm 121.1 lpm

43 gpm (optional) 162.8 lpm

59 gpm (optional) 223.3 lpm

SCV flow

35 gpm 132.5 lpm

Rear Type

3/3N

Control

electrohydraulic sensing

Rear lift

12,000 lbs 5443 kg

15,200 lbs (optional) 6894 kg

Front Hitch

3N (optional)

Front lift

11,464 lbs 5200 kg

Drawbar

Category 3 drawbar standard with 4,050 to 6,000 pound rating. High-capacity 10,000 Cat. 3 drawbar optional.

Rear PTO

independent

Rear PTO Type

1000 (1.75)

540/1000 (1.375/1.75)

540/540E/1000 (1.375/1.75)

540/540E/1000/1000E (1.375/1.75)

Engine RPM

540@1950

540E@1750

1000@1950

1000E@1950

Front PTO

optional

Front PTO Type

1000 (1.375)

1000 (1.75)

Wheelbase

115.2 inches 292 cm

Weight

23080 to 26335 pounds

Ground

negative

Charging system

alternator

Charging amps

200

Batteries

2

Battery CCA

925

Battery volts

12

Manufacturer

John Deere PowerTech PSX

Configuration

turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled

Displacement

414 ci 6.8 L

Bore/Stroke

4.19x5.00 inches 106 x 127 mm

Emissions

Tier 4A

Emission control

exhaust gas recirculation (EGR)

Rated Power (gross)

215 hp 160.3 kW

Maximum Power (gross)

237 hp 176.7 kW

Fuel system

electronic high-pressure common rail

Air cleaner

dual stage dry

Compression

17.2:1

Rated RPM

2100

Starter

electric

Starter volts

12

16-speed partial power shift

20-speed partial power shift

20-speed power shift

infinitely variable transmission

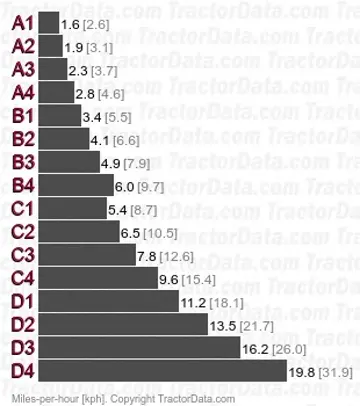

Transmission

John Deere PowrQuad Plus

Type

partial power shift

Gears

16 forward and reverse

Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Push-button power shifting between gears. Synchronized shifting between ranges using the foot clutch, or de-clutch button. Power shuttle shifting between forward and reverse.

With Group 47 rear tires.

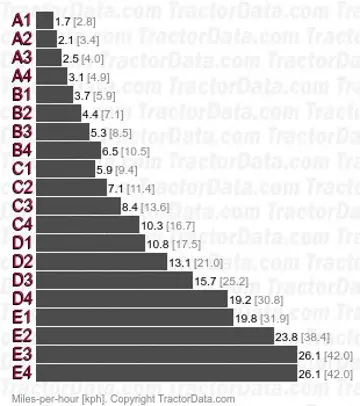

Transmission

John Deere AutoQuad Plus

Type

partial power shift

Gears

20 forward and reverse

The AutoQuad transmission adds automatic shifting to the PowrQuad. The tractor will automatically shift between two or all four gears within a range to maintain load.

With Group 47 rear tires.

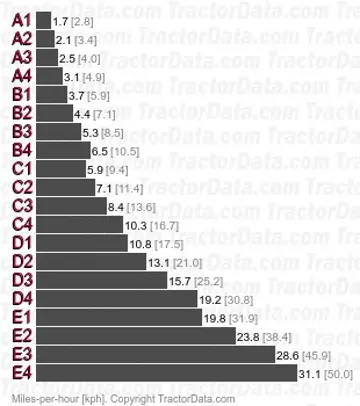

Transmission

John Deere CommandQuad Eco

Type

power shift

Gears

20 forward and reverse

The CommandQuad transmission uses a single shift control lever, with automatic gear and range shifting. CommandQuad available with 40 kph or 50 kph top speeds.

With Group 47 rear tires. 40 kph transmission has lower speeds in E3 and E4.

Transmission

John Deere AutoPowr IVT

Type

infinitely variable transmission

Gears

infinite forward and reverse

Wheelbase

115.2 inches 292 cm

Front axle

1150 Series standard

Front axle

Triple-Link Suspension Plus optional

Standard axle rear axle

3.94 by 118.5 inches 100 by 3009 mm

Rear axle

3.94 by 100.4 inches 100 by 2550 mm

Rear axle

3.94 by 110.5 inches 100 by 2806 mm

Front tread

60 to 88 inches 152 to 223 cm

23,080 lbs 10469 kg

TLS Plus

26,335 lbs 11945 kg

Max capacity

31,967 lbs 14500 kg

Max front axle

14,330 lbs 6500 kg

Max rear axle

23,149 lbs 10500 kg

Diesel CommandQuad 4WD October 12 - 14, 2011 Link: OCED Tractor Test 2055 file

PTO performance

Max power

216.29 hp 161.3 kW

Fuel use

11.7 gal/hour 44.3 l/hour

Power at rated engine speed

190.20 hp 141.8 kW

Fuel use

10.8 gal/hour 40.9 l/hour

Power at rated PTO speed

213.07 hp 158.9 kW

Fuel use

11.7 gal/hour 44.3 l/hour

Drawbar performance

Max power

172.34 hp 128.5 kW

Fuel use

10.9 gal/hour 41.3 l/hour

Max pull

20652 lbs 9367 kg
