John Deere 7230R

The John Deere 7230R is a tractor produced by John Deere. It is equipped with a 415 ci 6.8 L engine. The listed engine power is Diesel (net): 221 hp / 164.8 kW; Diesel (gross): 230 hp / 171.5 kW. Transmission: John Deere AutoPowr IVT. Operating weight: 22893 lbs 10384 kg.

Overview

	2014 - 7R SeriesRow-Crop tractor
2014 -
7R Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA

John Deere 7230R Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 7230R Power
Engine (gross)	230 hp 171.5 kW
Engine (net)	221 hp 164.8 kW
Engine (max)	269 hp 200.6 kW
PTO (claimed)	189 hp 140.9 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
	linked electro-hydraulic front on TLS Plus axle with brakes OptOptional
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab standard with air-conditioning. AutoTrac ready

Capacity
CommandQuad Fuel	151.1 gal 571.9 L
E23 Fuel	143.7 gal 543.9 L
IVT Fuel	155.6 gal 588.9 L
Hydraulic system	42.3 gal 160.1 L

Hydraulics
Type	closed center pressure-flow compensated
Capacity	42.3 gal 160.1 L
Pressure	2958 psi 204.0 bar
Valves	3 to 6
Pump flow	31.9 gpm*Standard 45cc pump 120.7 lpm
	42.8 gpm*Optional 63cc pump 162.0 lpm
	59 gpm*Optional 85cc pump 223.3 lpm
Rear SCV flow	34.9 gpm 132.1 lpm
Front SCV flow	33.3 gpm 126.0 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electro-hydraulic draft sensing
Rear lift	12000 lbs 5443 kg
	15200 lbsOptOptional 6894 kg
Front Hitch	IIIN
Front lift	11464 lbs 5200 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
	540/1000 (1.375)
	540E/1000/1000E (1.375)
Engine RPM	540@1950
	540E@ 1750
	1000@ 1950
	1000E@ 1750
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
	1000 (1.75)
Engine RPM	1000@1940

Dimensions & Tires
Wheelbase	115.2 inches 292 cm
Weight	22893 lbs 10384 kg
Front tire	540/65R34
Rear tire	650/85R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	925
Battery volts	12
Battery Group	31

Engine

Engine Detail — 415 ci / 6.8 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	dual turbochargers diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	415 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Stage IIIB *Stage II version available in select markets
Emission control	cooled exhaust gas recirculation
Rated Power (net)	221 hp 164.8 kW
Rated Power (gross)	230 hp 171.5 kW
Maximum Power (net)	258.6 hp 192.8 kW
Maximum Power (gross)	269 hp 200.6 kW
Fuel system	electronic high-pressure common rail
Compression	16:1
Rated RPM	2100
Operating RPM	1550-2100
Torque	794 lb-ft 1076.7 Nm
Torque RPM	1600
Starter	electric
Starter volts	12
Coolant capacity	41.7 qts 39.5 L
Oil capacity	25.9 qts 24.5 L
Oil change	500 h

Transmission

Transmission options
20-speed partial power shift
23-speed full power shift
infinitely variable transmission

Transmission — John Deere CommandQuad Eco

Transmission	John Deere CommandQuad Eco
Type	partial power shift
Gears	20 forward and reverse
Oil capacity	169.1 qts 160.0 L

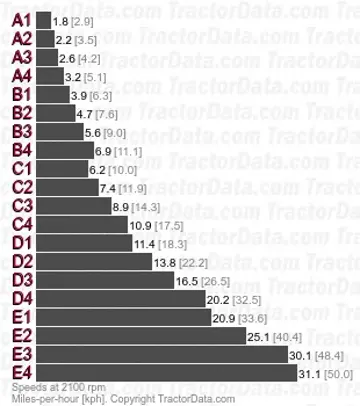

Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand reverser.
With Group 48 rear tires. 50kph transmission shown. Reverse speeds are about 5% faster than forward. Reverse capped at 30 kph (D4).

Transmission — John Deere e23

Transmission	John Deere e23
Type	full power shift
Gears	23 forward and 11 reverse
Oil capacity	169.1 qts 160.0 L

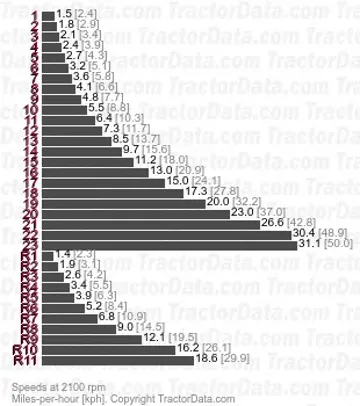

With Group 48 rear tires. Top speed is achieved at reduced engine rpm. F23 at 1855rpm and R11 at 1820rpm.

Transmission — John Deere AutoPowr IVT

Transmission	John Deere AutoPowr IVT
Type	infinitely variable transmission
Gears	infinite forward and reverse
Oil capacity	169.1 qts 160.0 L

Dimensions

John Deere 7230R Tires
Ag front	540/65R34
Ag rear	650/85R38
Ag front	320/85R38
	380/85R34
	420/90R30
	480/70R30
	600/65R28
	320/80R42
	380/80R38
	420/85R34
	480/70R34
	600/70R30
Ag rear	320/90R54
	380/90R50
	480/80R46
	520/85R42
	620/70R42
	650/65R42
	710/70R38
	320/105R54
	380/90R54
	480/80R50
	520/85R46
	620/70R46
	710/70R42
	800/70R38

Dimensions
Wheelbase	115.2 inches 292 cm
Length	217 inches 551 cm
Height (cab)	132 inches 335 cm
Weight	22893 lbs 10384 kg
Clearance (front axle)	19.5 inches 49 cm
Front axle	1150 MFWD
Front axle	Triple-Link Suspension MFWD
Flange rear axle
Bar rear axle	3.94 by 100.4 inches 100 by 2550 mm
Bar rear axle	3.94 by 110.5 inches 100 by 2806 mm
Bar rear axle	3.94 by 118.5 inches 100 by 3009 mm
Front tread	60 to 88 inches 152 to 223 cm
