CaseIH 8930

The CaseIH 8930 is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 182.08 hp 135.8 kW. Transmission: 24 forward and 6 reverse. Operating weight: 15750 to 17855 pounds.

Overview

	1997 - 1998 Magnum 8900 SeriesRow-Crop tractor
1997 - 1998
Magnum 8900 Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $95,000 in 1998

CaseIH 8930 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH 8930 Power
PTO (claimed)	180 hp 134.2 kW
Drawbar (tested)	156.31 hp 116.6 kW
PTO (tested)	198.35 hp 147.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electric rear
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	117 gal 442.8 L
	104 galOptOptional 393.6 L
Hydraulic system	45.5 gal 172.2 L

Hydraulics
Type	closed center pressure-flow compensated
Capacity	45.5 gal 172.2 L
Pressure	2200 psi 151.7 bar
Valves	2 to 4
Pump flow	29 gpm 109.8 lpm
SCV flow	27 gpm 102.2 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electronic lower-link draft sensing
Rear lift	13000 lbs 5896 kg
	13750 lbsOptOptional 6237 kg
	16000 lbsOptOptional 7257 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)
	540/1000 (dual-shaft 1.375)

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	15750 to 17855 pounds
Front tire	14L-16.1
Rear tire	20.8R-42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	110
Charging volts	12
Batteries	2
Battery CCA	950
Battery volts	12

References
Introducing The New 8900 Series Magnum Tractors published in 1996, by CaseIH
8900 Series Tractors published in 1997, by CaseIH

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Fuel system	mechanical injection
Air cleaner	dual dry element
Compression	16.5:1
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	31 qts 29.3 L

CaseIH 8930 Engine

Transmission

Transmission options
18-speed full power shift
24-speed creeper

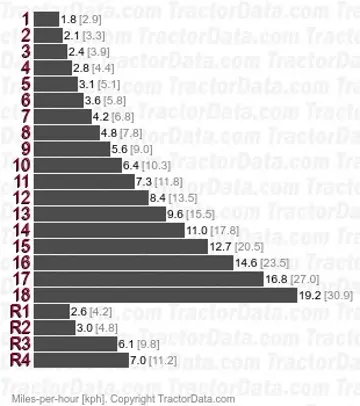

Transmission — 18 forward and 4 reverse full power shift

Type	full power shift
Gears	18 forward and 4 reverse
Clutch	hydraulic wet disc
Transmission
Type	creeper
Gears	24 forward and 6 reverse

Dimensions

CaseIH 8930 Tires
Ag front	14L-16.1
Ag rear	20.8R-42

Dimensions
Wheelbase	118.3 inches 300 cm
2WD Clearance (front axle)	22.8 inches 57 cm
4WD Clearance (front axle)	17.6 inches 44 cm
Rear axle	4 by 120 inches 101 by 3048 mm
Rear axle	4 by 114 inches 101 by 2895 mm
Front tread	60 to 88 inches 152 to 223 cm

CaseIH 8930 Weight
2WD Shipping	15750 lbs 7144 kg
4WD Shipping	16750 lbs 7597 kg
Operating	17,855 lbs 8099 kg
Ballasted	22,146 lbs 10045 kg

Tests

OCED Tractor Test 1735
Diesel 18-speed 4WD September 8 - 25, 1997 Link: OCED Tractor Test 1735 file
PTO performance
Max power	198.35 hp 147.9 kW
Fuel use	11.2 gal/hour 42.4 l/hour
Power at rated engine speed	182.08 hp 135.8 kW
Fuel use	11.3 gal/hour 42.8 l/hour
Drawbar performance
Max power	156.31 hp 116.6 kW
Fuel use	11.3 gal/hour 42.8 l/hour
Gear 8 used for power test.
Max pull	17533 lbs 7952 kg
Gear 5 used for pull test.

Photos

CaseIH 8930 tractor photo
