John Deere 7530 Premium

2007 - 2011

7030 Small-Frame Series

Row-Crop tractor

Manufacturer

John Deere

Row-Crop tractor

Factories

Waterloo, Iowa, USA

Mannheim, Baden-Württemberg, Germany

Original price

$135,731 (2010)

The John Deere 7530 was introduced in 2007 but not available in the United States until 2009.

John Deere 6.8L 6-cyl diesel

Fuel tank

92.5 gal 350.1 L

Engine (gross)

180 hp 134.2 kW

PTO (claimed)

153 hp 114.1 kW

Drawbar (tested)

142.8 hp 106.5 kW

PTO (tested)

175.8 hp 131.1 kW

Four-wheel drive

Steering

hydrostatic power

Differential hydraulic wet disc brakes

ComfordGard cab standard. Optional Deluxe, Premium, and Premium Plus option packages add radio, automatic temperature control and hydraulic suspension.

Type

closed center, pressure and flow compensated

Pressure

3135 psi 216.2 bar

Valves

2 to 4

Pump flow

29 gpm 109.8 lpm

Rear Type

III

Rear lift (at 24"/610mm)

10,600 lbs 4808 kg

Rear PTO

independent

Rear PTO Type

540/1000

540/540E/1000 (optional)

540E/1000/1000E (optional)

Front PTO

independent

Front PTO Type

1000 (optional)

Wheelbase

105.7 inches 268 cm

Weight

14,600 lbs 6622 kg

Front tire

16.9R28

Rear tire

18.4R42

Ground

negative

Charging system

alternator

Battery volts

12

Manufacturer

John Deere 6068HRW77

Configuration

turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled

Displacement

414.4 ci 6.8 L

Bore/Stroke

4.19x5.00 inches 106 x 127 mm

Rated Power (gross)

180 hp 134.2 kW

Air cleaner

dual paper elements

Compression

17.0:1

Rated RPM

2100

Idle RPM

850-2250

Operating RPM

1300-2100

Torque

642 lb-ft 870.6 Nm

Torque RPM

1600

Firing order

1-5-3-6-2-4

Starter volts

12

Starter power

4 hp 3.0 kW

Oil capacity

20.8 qts 19.7 L

Coolant capacity

37.6 qts 35.6 L

Intake valve clearance

0.014 inches 0.356 mm

Exhaust valve clearance

0.018 inches 0.457 mm

16-speed partial power shift

20-speed partial power shift

infinitely variable transmission

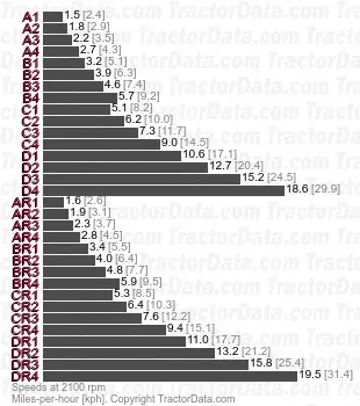

Transmission

PowrQuad Plus

Type

partial power shift

Gears

16 forward and reverse

Oil capacity

59.2 qts 56.0 L

Four ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change.

With 18.4R38 rear tires.

Transmission

AutoQuad Plus

Type

partial power shift

Gears

20 forward and reverse

Oil capacity

59.2 qts 56.0 L

Five ranges, each with four gears. Operated via range shift lever with gear shift buttons plus reverser lever. Clutch must be used to change range, clutchless power shift between gears and for direction change. Automatic mode allows for computer-controlled automatic shifting to match load.

Transmission

John Deere IVT

Type

infinitely variable transmission

Gears

infinite forward and reverse

Oil capacity

59.2 qts 56.0 L

The IVT is operated with a right-hand speed control lever and left-hand reverser lever. The speed control lever is used to select speed in one of two ranges. A dial on the lever sets the maximum speed for the range. If a maximum speed of 2 kph or less is selected then the transmission will shift into creeper mode with a minimum speed of 0.05 kph.

Ag front

16.9R28

Ag rear

18.4R42

Wheelbase

105.7 inches 268 cm

Length

188.9 inches 479 cm

Height (cab)

119.9 inches 304 cm

Clearance (front axle)

22.7 inches 57 cm

Clearance (rear axle)

24.9 inches 63 cm

Clearance (drawbar)

21.2 inches 53 cm

Rear axle

3.622 by 96 inches 91 by 2438 mm

Rear axle

3.622 by 110.5 inches 91 by 2806 mm (long axle)

Front tread

60 to 88 inches 152 to 223 cm

Rear tread

60 to 104.6 inches 152 to 265 cm

Rear tread

60 to 119.2 inches 152 to 302 cm (long axle)

Shipping

14,600 lbs 6622 kg

Max capacity

27,115 lbs 12299 kg

Max Drawbar

5,400 lbs 2449 kg

Max front axle

12,125 lbs 5499 kg

15,650 lbs (with loader) 7098 kg

Max rear axle

20,940 lbs 9498 kg

Diesel 20-speed 4WD May 2007 - July 2007, Link: OCED Tractor Test 2453 file

PTO performance

Max power

175.8 hp 131.1 kW

Fuel use

9.6 gal/hour 36.3 l/hour

Power at rated engine speed

157.6 hp 117.5 kW

Fuel use

9.0 gal/hour 34.1 l/hour

Power at rated PTO speed

174.6 hp 130.2 kW

Fuel use

9.6 gal/hour 36.3 l/hour

Drawbar performance

Max power

142.8 hp 106.5 kW

Fuel use

9.2 gal/hour 34.8 l/hour

Max pull

15,335 lbs 6955 kg
