John Deere 730

The John Deere 730 is a tractor produced by John Deere. It is equipped with a 376 ci 6.2 L engine. Transmission: 6 forward and 1 reverse. Operating weight: 6790 to 7861 pounds.

Fuel & Capacities
Diesel
Transmission
6 forward and 1 reverse
Operating Weight
6790 to 7861 pounds

Overview

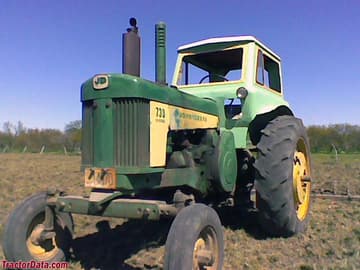

John Deere 730 tractor photo
1961 - 1971 Row-Crop tractor
Production
Manufacturer
John Deere
Row-Crop tractor
Built in Rosario, Argentina
The John Deere model 730, originally built in Waterloo, was also exported to Argentina and assembled at Deere's factory in Rosario. When two-cylinder production ended at Waterloo the tooling for the 730 was moved to Argentina. Production continued until 1971. Argentine model 730s were built in row-crop, standard, and high-crop variants. The paint scheme and hood medallion were different than US-built 730s.
John Deere 730 Transmission
6-speed unsynchronized gear
Transmission details ...
John Deere 730 Power
Drawbar (claimed)
53 hp 39.5 kW
PTO (claimed)
59 hp 44.0 kW
Plows
5
Mechanical
Two-wheel drive
Steering
manual
Differential mechanical drum brakes
Open operator station. Optional Float-Ride seat.
Hydraulics
Type
open center
Valves
1 or 2
Tractor hitch
Rear Type
II (optional)
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Dimensions & Tires
Wheelbase
93.7 inches 237 cm
Weight
6790 to 7861 pounds
Front tire
6.00-16
Rear tire
13.6-38
Full dimensions and tires ...
Belt Pulley
Diameter
12.8 inches 32 cm
Width
7.4 inches 18 cm
RPM
1,125
Speed
3,790 ft/min 1155.19 meters/min
Electrical
Ground
positive
Charging system
generator
Batteries
2
4 (diesel)
Battery volts
6
References
730 references literature
The John Deere 30 Series by J.R. Hobbs

Engine

Engine options
John Deere 5.9L 2-cyl gasoline
John Deere 6.2L 2-cyl diesel

Engine Detail — 360.5 ci / 5.9 L Gasoline

Manufacturer
John Deere
Fuel Type
Gasoline
Configuration
2-cylinder 4-valve, liquid-cooled
Displacement
360.5 ci 5.9 L
Bore/Stroke
6.00x6.375 inches 152 x 162 mm
Fuel use
4.514 gal/hour 17.1 l/hour
Air cleaner
oil bath
Compression
6.14:1
Rated RPM
1125
Starter volts
12
Coolant capacity
29 qts 27.4 L

Engine Detail — 376 ci / 6.2 L Diesel

Manufacturer
John Deere
Fuel Type
Diesel
Configuration
2-cylinder 4-valve, liquid-cooled
Displacement
376 ci 6.2 L
Bore/Stroke
6.125x6.375 inches 156 x 162 mm
Fuel use
3.153 gal/hour 11.9 l/hour
Air cleaner
oil bath
Compression
16:1
Rated RPM
1125
Firing order
1-2
Starter volts
24

Transmission

Transmission — 6 forward and 1 reverse unsynchronized gear

Manufacturer
John Deere
Type
unsynchronized gear
Gears
6 forward and 1 reverse
With 13.6-38 rear tires.
730 unsynchronized gear speeds

Dimensions

John Deere 730 Tires
Ag front
6.00-16
Ag rear
13.6-38
15.5-38
12-38
13-38
Dimensions
Wheelbase
93.7 inches 237 cm
Length
135.25 inches 343 cm
Width
86.625 inches 220 cm
Height
88.25 inches 224 cm
Front tread
48 to 80 inches 121 to 203 cm
Rear tread
60 to 88 inches 152 to 223 cm
Rear tread
60 to 104 inches 152 to 264 cm (long axle)
Rear tread
60 to 122 inches 152 to 309 cm (extra-long axle)
John Deere 730 Weight
Shipping
6,790 lbs (gasoline) 3079 kg
7,105 lbs (diesel) 3222 kg
Operating
7,445 lbs (gasoline) 3377 kg
7,861 lbs (diesel) 3565 kg
Ballasted
9,241 lbs 4191 kg

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 730.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
