John Deere 7310R
The John Deere 7310R is a tractor produced by John Deere. It is equipped with a 549 ci 9.0 L engine. The rated power output is 310 hp 231.2 kW. Transmission: John Deere AutoPowr IVT.
Engine Power
310 hp
231.2 kW
Fuel & Capacities
electronic high pressure common rail
Transmission
John Deere AutoPowr IVT
John Deere 7310R Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2015 - 2019
7R SeriesRow-Crop tractor |
|---|---|
2015 - 2019 | |
7R Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
John Deere 7310R Engine | |
|---|---|
John Deere 9.0L 6-cyl diesel | |
Exhaust fluid (DEF) | 6.8 gal
25.7 L |
Engine details ...  | |
John Deere 7310R Power | |
|---|---|
Engine (gross) | 310 hp
231.2 kW |
PTO (claimed) | 260 hp
193.9 kW |
Drawbar (tested) | 255.61 hp
190.6 kW |
PTO (tested) | 309.83 hp
231.0 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
Differential lock | full-locking electro-hydraulic rear |
limited slip front | |
electro-hydraulic front (optional) | |
Steering | hydrostatic power |
ActiveCommand Steering optional | |
CommandView III cab standard with air-conditioning. Optional premium cab with seat or cab suspension, right-hand windshield wiper, and electric mirror control. | |
Hydraulics | |
|---|---|
Type | closed-center pressure and flow compensated |
Pressure | 2958 psi
204.0 bar |
Rear valves | 3 to 6 |
Pump flow | 43 gpm
162.8 lpm |
59 gpm*Optional. Deere advertised 59 GPM as the flow rate of the 85cc pump but the tested rate was 58.3 GPM.
223.3 lpm | |
Rear SCV flow | 35 gpm
132.5 lpm |
Front SCV flow | 33 gpm
124.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/IIIN |
Control | electro-hydraulic draft sensing |
Rear lift | 22500 lbs
10206 kg |
Rear Arms | hydraulic center link (optional) |
Front Hitch | IIIN (optional) |
Front lift (at ends) | 11464 lbs
5200 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.75) |
Front PTO | independent |
Front PTO Type | 1000 (1.375) |
1000 (1.75) | |
Dimensions & Tires | |
|---|---|
Wheelbase | 115 inches
292 cm |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
240 (optional) | |
Batteries | 2 |
Battery CCA | 925 |
Battery volts | 12 |
Battery Group | 31 |
Engine
Engine Detail — 549 ci / 9.0 L Diesel
Manufacturer | John Deere |
Configuration | turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline |
Displacement | 549 ci
9.0 L |
Bore/Stroke | 4.66x5.35 inches
118 x 136 mm |
Emissions | Tier 4 |
Rated Power (gross) | 310 hp
231.2 kW |
Fuel system | electronic high pressure common rail |
Air cleaner | two stage dry |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
23-speed full power shift | |
infinitely variable transmission |

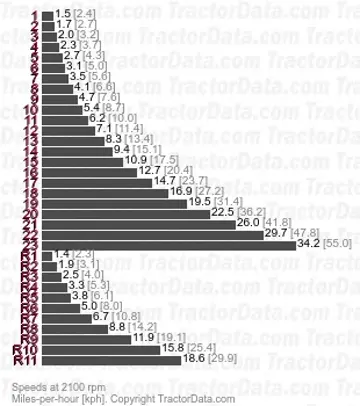

Transmission — John Deere e23
Transmission | John Deere e23 |
Type | full power shift |
Gears | 23 forward and 11 reverse |
Clutch | hydraulic wet disc |
Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions. | |
With Group 48 rear tires and 50 kph option. | |
 | |
Transmission — John Deere AutoPowr IVT
Transmission | John Deere AutoPowr IVT |
Type | infinitely variable transmission |
Gears | infinite forward and reverse |
Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions. | |
 | |
Dimensions
John Deere 7310R Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 115 inches
292 cm |
Length | 218 inches
553 cm |
Clearance (front axle) | 24 inches (G42 tires)
60 cm |
25 inches (G43 tires)
63 cm | |
26 inches (G44 tires)
66 cm | |
Clearance (rear axle) | 23 inches (G47 tires)
58 cm |
25 inches (G48 tires)
63 cm | |
27 inches (G49 tires)
68 cm | |
Clearance (drawbar) | 14 inches (G47 tires)
35 cm |
17 inches (G48 tires)
43 cm | |
18 inches (G49 tires)
45 cm | |
Front axle | 1300 MFWD |
Front axle | Triple-Link Suspension Plus |
Rear axle | 4.33 by 100.4 inches
109 by 2550 mm |
Rear axle | 4.33 by 118.5 inches
109 by 3009 mm |
Rear axle | 4.72 by 100.4 inches
119 by 2550 mm |
Rear axle | 4.72 by 118.5 inches
119 by 3009 mm |
Front tread | 60 to 88 inches
152 to 223 cm |
John Deere 7310R Height | |
|---|---|
Cab | 128 inches (G47 tires)
325 cm |
132 inches (G48 tires)
335 cm | |
136 inches (G49 tires)
345 cm | |
Tests
OCED Tractor Test 2113 | |
|---|---|
Diesel e23 4WD
March 23 - April 2, 2015
Link: OCED Tractor Test 2113 file | |
PTO performance | |
Max power | 309.83 hp
231.0 kW |
Fuel use | 16.0 gal/hour
60.6 l/hour |
Power at rated engine speed | 272.40 hp
203.1 kW |
Fuel use | 14.8 gal/hour
56.0 l/hour |
Power at rated PTO speed | 302.41 hp
225.5 kW |
Fuel use | 16.0 gal/hour
60.6 l/hour |
Drawbar performance | |
Max power | 255.61 hp
190.6 kW |
Fuel use | 14.8 gal/hour
56.0 l/hour |
Gear 11 used for power test. | |
Max pull | 227.62 lbs
103 kg |
Gear 8 used for pull test. | |
