John Deere 7505

The John Deere 7505 is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The rated power output is 140 hp 104.4 kW. Transmission: John Deere PowrQuad. Operating weight: 11660 to 12060 pounds.

Overview

	1998 - 2005 Utility tractor
1998 - 2005
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Montenegro, Brazil

John Deere 7505 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 7505 Transmission
16-speed partial power shift
Transmission details ...

John Deere 7505 Power
Engine	140 hp 104.4 kW
PTO (claimed)	119 hp 88.7 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab optional.

Capacity
Fuel	81.1 gal 307.0 L
Hydraulic system	16.9 gal 64.0 L
Front axle	7.1 qts 6.7 L
Front hubs	0.8 qts (each) 0.8 L

Hydraulics
Type	closed-center flow-compensated
Capacity	16.9 gal 64.0 L
Pressure	2756 psi 190.0 bar
Valves	2 to 3
Pump flow	17.44 gpm 66.0 lpm
	26.42 gpm (optional) 100.0 lpm
SCV flow	15.85 gpm 60.0 lpm
	25.4 gpm (optional) 96.1 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	II
Control	electronic lower link
Rear lift (at ends)	10,690 lbs 4848 kg
Rear lift (at 24"/610mm)	6,504 lbs 2950 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	11660 to 12060 pounds
Front tire	18.4-24
Rear tire	24.5-32
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	52 (ROPS)
	75 (cab)
Battery volts	12
Battery AH	150

Engine

Engine Detail — 414.4 ci / 6.8 L Diesel

Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
John Deere 6068T Series 350
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	140 hp 104.4 kW
Compression	17.8:1
Rated RPM	2100
Torque	446.2 lb-ft 605.0 Nm
Torque RPM	1400
Starter volts	12
Coolant capacity	20.1 qts 19.0 L
Oil capacity	20.1 qts 19.0 L

Transmission

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet disc PermaClutch II
Oil capacity	67.6 qts 64.0 L
Oil type	JD Hy-Gard

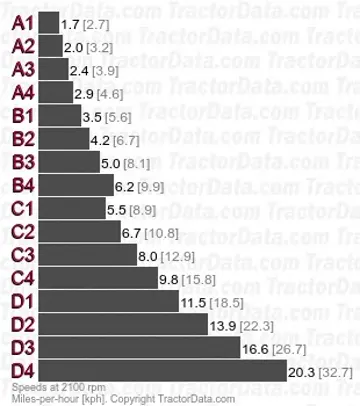

Four power shift gears (1-4) in four synchronized ranges (A-D).
With 18.4-38 R1 rear tires. Reverse speeds are 15% faster than forward speeds.

	JD Hy-Gard

Dimensions

John Deere 7505 Tires
Standard tires (ag)	Front: 18.4-24. Rear: 24.5-32
Optional tires (ag)	Front: 16.9-26. Rear: 18.4-38
	Front: 14.9-28. Rear: 23.1-30
	Front: 18.4-26. Rear: 20.8-38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	184.9 inches 469 cm
Height	112 inches 284 cm
Rack-and-pinion rear axle
Front tread	62.9 to 82.6 inches 159 to 209 cm
Rear tread	62.2 to 107.4 inches 157 to 272 cm
Rear tread	64.5 to 107.4 inches 163 to 272 cm (with cab)

John Deere 7505 Weight
	11,660 lbs 5288 kg
Cab	12,060 lbs 5470 kg
Max capacity	17,640 lbs 8001 kg
