John Deere 6510L

The John Deere 6510L is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The listed engine power is Diesel (gross): 114 hp / 85.0 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: PowrQuad Creeper. Operating weight: 7740 to 8379 pounds.

Overview

	1999 - 2002 6000 TEN SeriesOrchard/Vineyard tractor 6000 TEN Series Orchard/Vineyard tractor

Production
Manufacturer	John Deere
Orchard/Vineyard tractor
Built in Mannheim, Baden-Württemberg, Germany

Variants
6510L	low-profile ROPS
6510S	low-profile cab

John Deere 6510L Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	30.7 gal 116.2 L
Engine details ...

John Deere 6510L Power
Engine (gross)	114 hp 85.0 kW
PTO (claimed)	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic wet disc
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	closed center load sensing
Pressure	2900 psi 200.0 bar
Valves	1 to 4
Pump flow	25.4 gpm 96.1 lpm
	18.9 gpmOptOptional 71.5 lpm

Tractor hitch
Rear Type	II
Control	electronic lower-link draft sensing
Rear lift	5915 lbs 2683 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	7740 to 8379 pounds
Front tire	27/9.5-15
2WD Rear tire	18.4-26
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery CCA	850
	1230 OptOptional
Battery volts	12
Battery AH	110
	154 OptOptional

References
6000 TEN Series published in 1998, by John Deere
6000 TEN Series and Advantage Series Tractors published in 1998, by John Deere
6000 TEN Series Tractors and Advantage Series Tractors Product Information Handbook published in 1998, by John Deere

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045TL057
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power (gross)	114 hp 85.0 kW
Rated RPM	2300
Torque	334 lb-ft 452.9 Nm
Torque RPM	1500
Firing order	1-3-4-2
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	12.7 qts 12.0 L
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
16-speed four-speed power shift
38-speed four-speed power shift

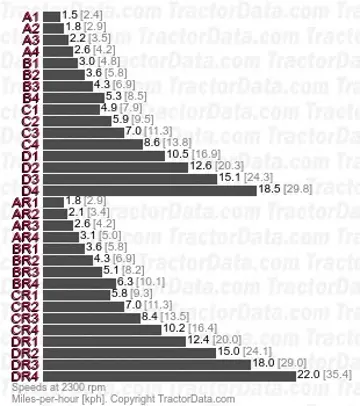

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	four-speed power shift
Gears	16 forward and reverse
Oil capacity	51.6 qts 48.8 L
Oil type	-10oF [-23oC]↑ : JD HY-GARD 86oF [30oC]↓ : Low-Viscosity HY-GARD	-10oF [-23oC]↑	: JD HY-GARD	86oF [30oC]↓	: Low-Viscosity HY-GARD
-10oF [-23oC]↑	: JD HY-GARD
86oF [30oC]↓	: Low-Viscosity HY-GARD
Four power shift gears in four synchronized ranges, with reverser.
With 18.4-30 rear tires.

-10oF [-23oC]↑	: JD HY-GARD
86oF [30oC]↓	: Low-Viscosity HY-GARD

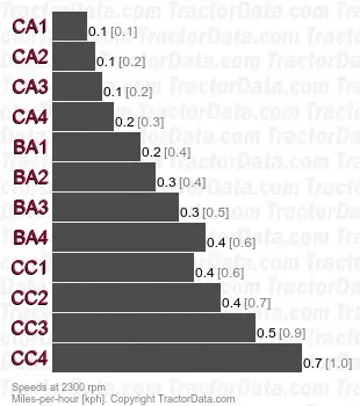

Transmission — PowrQuad Creeper

Transmission	PowrQuad Creeper
Type	four-speed power shift
Gears	38 forward and reverse
Creeper option adds an additional low-speed for ranges A, B, and C.

Dimensions

John Deere 6510L Tires
2WD Standard tires (ag)	Front: 27/9.5-15. Rear: 18.4-26
4WD Standard tires (ag)	Front: 10.5/80-18. Rear: 18.4-26

Dimensions
Wheelbase	94.5 inches 240 cm
Length	162.7 inches 413 cm
Width	56 inches*Width at rear fenders. 142 cm

John Deere 6510L Weight
2WD Shipping	7740 lbs 3510 kg
4WD Shipping	8379 lbs 3800 kg
Max capacity	17,635 lbs 7999 kg

John Deere 6510L Height
Steering wheel	66.4 inches 168 cm
2WD Hood	62.4 inches 158 cm
4WD Hood	60.7 inches 154 cm
ROPS	95.5 inches 242 cm
