John Deere 7515

The John Deere 7515 is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The rated power output is 140 hp 104.4 kW. Transmission: John Deere PowrQuad. Operating weight: 17,640 lbs 8001 kg.

Overview

	2005 - 2010 Utility tractor
2005 - 2010
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Montenegro, Brazil

John Deere 7515 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 7515 Transmission
16-speed partial power shift
Transmission details ...

John Deere 7515 Power
Engine	140 hp 104.4 kW
PTO (claimed)	119 hp 88.7 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab optional.

Capacity
Fuel	81 gal 306.6 L
Hydraulic system	16.9 gal 64.0 L
Front axle	8.7 qts 8.2 L
Front hubs	1.8 qts (each) 1.7 L

Hydraulics
Type	closed-center load sensing
Capacity	16.9 gal 64.0 L
Pressure	2756 psi 190.0 bar
Valves	2 to 3
Pump flow	26.4 gpm 99.9 lpm
SCV flow	25.4 gpm 96.1 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	II
Control	electronic lower link
Rear lift (at ends)	10,690 lbs 4848 kg
Rear lift (at 24"/610mm)	6,500 lbs 2948 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Front tire	18.4-26
Rear tire	24.5-32
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12
Battery AH	150

References
6415, 6615 & 7515 Tractors published in 2004, by John Deere

Engine

Engine Detail — 414.4 ci / 6.8 L Diesel

Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
John Deere 6068T Series 350
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	140 hp 104.4 kW
Rated RPM	2100
Torque	449.9 lb-ft 610.1 Nm
Torque RPM	1500
Starter volts	12
Coolant capacity	26.4 qts 25.0 L
Oil capacity	20.1 qts 19.0 L

Transmission

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet disc PermaClutch II
Oil capacity	67.6 qts 64.0 L
Oil type	JD Hy-Gard

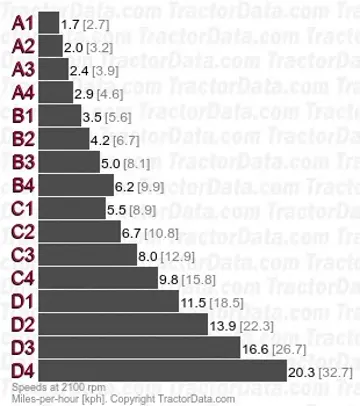

Four power shift gears (1-4) in four synchronized ranges (A-D).
With 18.4-38 R1 rear tires. Reverse speeds are 15% faster than forward speeds.

	JD Hy-Gard

Dimensions

John Deere 7515 Tires
Standard tires (ag)	Front: 18.4-26. Rear: 24.5-32
Optional tires (ag)	Front: 16.9-26. Rear: 18.4-38
	Front: 18.4-26. Rear: 20.8-38
	Front: 18.4R26. Rear: 650/75R32
	Front: 12.4-36. Rear: 320/90R50
	Front: 14.9-28. Rear: 23.1-30

Dimensions
Wheelbase	104.3 inches 264 cm
Length	195.6 inches 496 cm
Height	112 inches 284 cm
Max weight	17,640 lbs 8001 kg
Rack-and-pinion rear axle
Front tread	63.6 to 84.8 inches 161 to 215 cm
Rear tread	62.4 to 75.7 inches 158 to 192 cm
