John Deere 7610

The John Deere 7610 is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The rated power output is 140 hp 104.4 kW. Transmission: John Deere PowrQuad. Operating weight: 12352 to 14540 pounds.

Overview

	1997 - 2002 7010 SeriesRow-Crop tractor
1997 - 2002
7010 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA

John Deere 7610 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 7610 Power
Engine	140 hp 104.4 kW
PTO (claimed)	120 hp 89.5 kW
Drawbar (tested)	108.47 hp 80.9 kW
PTO (tested)	126.83 hp 94.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Cab standard.

Capacity
Fuel	65 gal 246.0 L
	91 gal (optional) 344.4 L
Front axle	15.2 qts 14.4 L
Front hubs	2 qts 1.9 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
Pressure	2900 psi 200.0 bar
Valves	2 to 5
SCV flow	26 gpm 98.4 lpm

Tractor hitch
Rear Type	IIIN/II
Rear lift	7725 lbs 3504 kg
	8925 lbs*Optional with two-wheel drive. 4048 kg
	10050 lbs*Optional with four-wheel drive. 4558 kg
Front Hitch	IIIN/II OptOptional
Front lift	7700 lbs 3492 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet discs
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2100
	1000@2100

Dimensions & Tires
2WD Wheelbase	114.4 inches 290 cm
4WD Wheelbase	110.2 inches 279 cm
Weight	12352 to 14540 pounds
Front tire	11.00-16
2WD Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	140
Batteries	2
Battery CCA	925
Battery volts	12

References
7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1998, by John Deere
7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1999, by John Deere
New 95- to 150-HP 7000 TEN Series Tractors published in 1996, by John Deere
7000 TEN Series published in 1999, by John Deere
New 7000 TEN Series Tractors - Feel The Earth Move published in 1996, by John Deere

Engine

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer	John Deere PowerTech
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	414 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	140 hp 104.4 kW
Fuel system	mechanical direct injection
Air cleaner	dual dry element
Compression	17:1
Rated RPM	2100
Idle RPM	800-2325
Torque	420 lb-ft 569.5 Nm
Firing order	1-5-3-6-2-4
Starter volts	12
Coolant capacity	25 qts 23.7 L
Oil capacity	20 qts 18.9 L

Transmission

Transmission options
16-speed partial power shift
19-speed full power shift
20-speed partial power shift

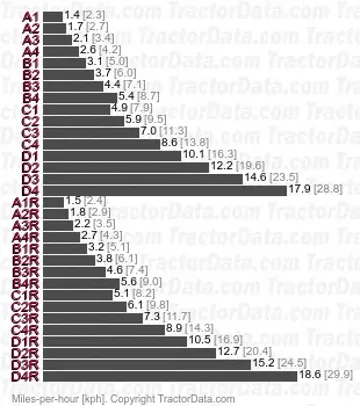

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Oil capacity	91.6 qts (2WD) 86.7 L
	103.6 qts (4WD) 98.0 L
Four speeds (1-4) in four ranges (A-D) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch.
With 18.4-38 rear tires.

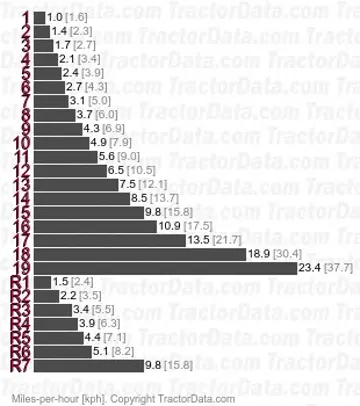

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	19 forward and 7 reverse
Oil capacity	96 qts (2WD) 90.9 L
	108 qts (4WD) 102.2 L
The power shift transmission is operated with a single right-hand shift lever. Transmission can be directly shifted up to gear 11 forward and 7 reverse.
With 18.4-38 rear tires.

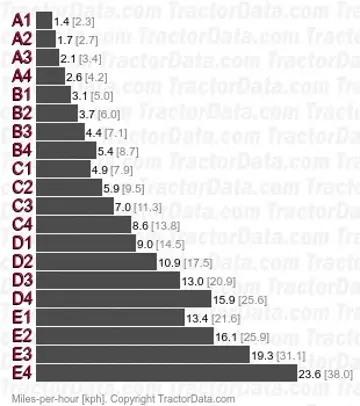

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	20 forward and reverse
Oil capacity	91.6 qts (2WD) 86.7 L
	103.6 qts (4WD) 98.0 L
Four speeds (1-4) in five ranges (A-E) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch.
With 18.4-38 rear tires.

Dimensions

John Deere 7610 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 18.4-38
4WD Standard tires (ag)	Front: 14.9-28. Rear: 18.4-38

Dimensions
2WD Wheelbase	114.4 inches 290 cm
4WD Wheelbase	110.2 inches 279 cm
Length	173 inches 439 cm
Width	117 inches 297 cm
Height	110 inches 279 cm
Rear axle	3.62 by 96 inches 91 by 2438 mm
Rear axle	3.62 by 110.5 inches 91 by 2806 mm
Rear axle	3.62 by 118.6 inches 91 by 3012 mm
Rear tread	60 to 85.7 inches 152 to 217 cm (2.5m axle)
Rear tread	60 to 100.3 inches 152 to 254 cm (2.8m axle)
Rear tread	60 to 108.3 inches 152 to 275 cm (3.0m axle)

John Deere 7610 Weight
2WD Shipping	12352 lbs 5602 kg
4WD Shipping	13237 lbs 6004 kg
Operating	14,540 lbs 6595 kg
Max Drawbar	3,150 lbs (extended) 1428 kg
	6,280 lbs (short) 2848 kg

Tests

Tractor Tests
OECD 1724: diesel PowrQuad 16-speed 4WD
OECD 1725: diesel PowerShift 4WD
OECD 1787: diesel PowrQuad 20-speed 4WD

OCED Tractor Test 1724
Diesel PowrQuad 16-speed 4WD May 27 - June 18, 1997 Link: OCED Tractor Test 1724 file
PTO performance
Max power	118.07 hp 88.0 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Power at rated engine speed	115.94 hp 86.5 kW
Fuel use	6.9 gal/hour 26.1 l/hour
Drawbar performance
Max power	103.19 hp 76.9 kW
Fuel use	6.9 gal/hour 26.1 l/hour
Max pull	13,610 lbs 6173 kg

OCED Tractor Test 1725
Diesel PowerShift 4WD May 22 - June 18, 1997 Link: OCED Tractor Test 1725 file
PTO performance
Max power	117.27 hp 87.4 kW
Fuel use	6.5 gal/hour 24.6 l/hour
Power at rated engine speed	115.96 hp 86.5 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Drawbar performance
Max power	96.26 hp 71.8 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Gear 11 used for power test.
Max pull	14,475 lbs 6565 kg
Gear 5 used for pull test.

OCED Tractor Test 1787
Diesel PowrQuad 20-speed 4WD October 26 - November 7, 2000 Link: OCED Tractor Test 1787 file
PTO performance
Max power	126.83 hp 94.6 kW
Fuel use	7.0 gal/hour 26.5 l/hour
Power at rated engine speed	120.63 hp 90.0 kW
Fuel use	7.1 gal/hour 26.9 l/hour
Drawbar performance
Max power	108.47 hp 80.9 kW
Fuel use	7.1 gal/hour 26.9 l/hour
Max pull	17,738 lbs 8045 kg
