John Deere 8210
The John Deere 8210 is a tractor produced by John Deere. It is equipped with a 496 ci 8.1 L engine. Transmission: PowerShift. Drive type: 4x2 2WD. Operating weight: 17,898 lbs 8118 kg.
Drive & Traction
4x2 2WD
Fuel & Capacities
135 gal
511.0 L
Transmission
PowerShift
Operating Weight
17,898 lbs
8118 kg
John Deere 8210 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1999 - 2002
8000 Ten SeriesRow-Crop tractor |
|---|---|
1999 - 2002 | |
8000 Ten Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
Variants | |
|---|---|
8210 | wheeled tractor |
8210T | crawler tractor |
John Deere 8210 Engine | |
|---|---|
John Deere 8.1L 6-cyl diesel | |
Fuel tank | 135 gal
511.0 L |
Engine details ...  | |
John Deere 8210 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
John Deere 8210 Power | |
|---|---|
PTO (claimed) | 185 hp
138.0 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (optional) | |
Power steering | |
Hydraulics | |
|---|---|
Type | closed center PFC |
Valves | 3 to 5 |
Pump flow | 30 gpm
113.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | III, IIIN |
Rear lift | 10,400 lbs
4717 kg |
14,165 lbsOptOptional
6425 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 116.9 inches
296 cm |
Weight | 17,898 lbs
8118 kg |
Front tire | 16.9R30 |
Rear tire | 18.4R46 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 140 |
Batteries | 2 |
Battery CCA | 1,850 |
Battery volts | 12 |
References | |
|---|---|
 | |
8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere |
Engine
Engine Detail — 496 ci / 8.1 L Diesel
Manufacturer | John Deere |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline |
Displacement | 496 ci
8.1 L |
Bore/Stroke | 4.56x5.06 inches
116 x 129 mm |
Compression | 16.5:1 |
Rated RPM | 2200 |
Torque | 667 lb-ft
904.5 Nm |
Oil capacity | 29.6 qts
28.0 L |
Coolant capacity | 35.9 qts
34.0 L |
Transmission
Transmission — PowerShift
Transmission | PowerShift |

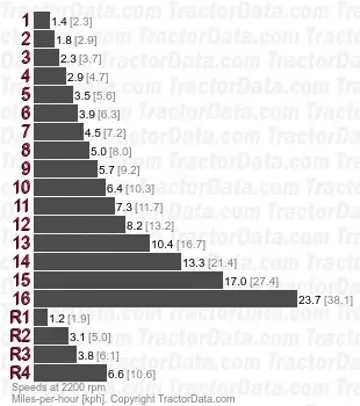

Gears | 16 forward and 4 reverse |
With 20.8-42 rear tires. 16th gear speed at 2400 RPM. R4 speed at 1600 RPM. | |
 | |
Dimensions
John Deere 8210 Tires | |
|---|---|
Ag front | 16.9R30 |
Ag rear | 18.4R46 |
Dimensions | |
|---|---|
Wheelbase | 116.9 inches
296 cm |
Weight | 17,898 lbs
8118 kg |
Ground clearance | 23.2 inches
58 cm |
