John Deere 8310
The John Deere 8310 is a tractor produced by John Deere. It is equipped with a 496 ci 8.1 L engine. Transmission: PowerShift. Drive type: 4x2 2WD. Operating weight: 18,523 lbs 8402 kg.
Drive & Traction
4x2 2WD
Fuel & Capacities
135 gal
511.0 L
Transmission
PowerShift
Operating Weight
18,523 lbs
8402 kg
John Deere 8310 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1999 - 2002
8000 Ten SeriesRow-Crop tractor |
|---|---|
1999 - 2002 | |
8000 Ten Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
Variants | |
|---|---|
8310 | wheeled tractor |
8310T | crawler tractor |
John Deere 8310 Engine | |
|---|---|
John Deere 8.1L 6-cyl diesel | |
Fuel tank | 135 gal
511.0 L |
Engine details ...  | |
John Deere 8310 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
John Deere 8310 Power | |
|---|---|
PTO (claimed) | 205 hp
152.9 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (optional) | |
Hydraulics | |
|---|---|
Type | closed center PFC |
Valves | 3 to 5 |
Pump flow | 30 gpm
113.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | III, IIIN |
Rear lift | 11,700 lbs
5307 kg |
15,650 lbs (optional)
7098 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
540/1000 (optional) | |
Dimensions & Tires | |
|---|---|
Wheelbase | 116.9 inches
296 cm |
Weight | 18,523 lbs
8402 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 140 |
Batteries | 2 |
Battery CCA | 925 |
Battery volts | 12 |
References | |
|---|---|
 | |
8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere |
Engine
Engine Detail — 496 ci / 8.1 L Diesel
Manufacturer | John Deere |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline |
Displacement | 496 ci
8.1 L |
Bore/Stroke | 4.56x5.06 inches
116 x 129 mm |
Compression | 16.5:1 |
Rated RPM | 2200 |
Torque | 741 lb-ft
1004.8 Nm |
Oil capacity | 29.6 qts
28.0 L |
Coolant capacity | 35.9 qts
34.0 L |
Transmission
Transmission — PowerShift
Transmission | PowerShift |
Gears | 16 forward and 4 reverse |

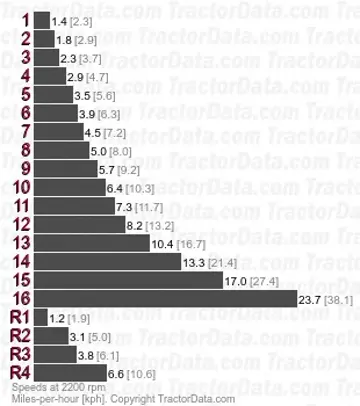

With 620/70R42 rear tires. 16th gear speed at 2400 RPM. R4 speed at 1600 RPM. | |
 | |
Dimensions
John Deere 8310 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 116.9 inches
296 cm |
Weight | 18,523 lbs
8402 kg |
Ground clearance | 23.2 inches
58 cm |
