John Deere 9100

The John Deere 9100 is a tractor produced by John Deere. It is equipped with a 496 ci 8.1 L engine. The rated power output is 260 hp 193.9 kW. Transmission: John Deere PowerShift. Operating weight: 28,380 lbs 12873 kg.

Overview

	1997 - 2001 9000 SeriesFour-wheel Drive (4WD) tractor
1997 - 2001
9000 Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA

John Deere 9100 Engine
John Deere 8.1L 6-cyl diesel
Engine details ...

John Deere 9100 Power
Engine	260 hp 193.9 kW
PTO (claimed)	214 hp 159.6 kW
Drawbar (tested)	199.67 hp 148.9 kW
PTO (tested)	249.38 hp 186.0 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab standard.

Capacity
Fuel	270 gal 1022.0 L
Hydraulic system	26 gal 98.4 L

Hydraulics
Type	closed center PFC
Capacity	26 gal 98.4 L
Pressure	2900 psi 200.0 bar
Valves	3 to 5
Pump flow	35 gpm 132.5 lpm
Total flow	44 gpm 166.5 lpm

Tractor hitch
Rear Type	III
Rear lift	13,871 lbs 6291 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (optional)

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	28,380 lbs 12873 kg
Front tire	20.8R38
Rear tire	20.8R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	140
Batteries	2
Battery CCA	925
Battery volts	12

References
New 9000 Series Tractors published in 1996, by John Deere
Typical Questions & Answers - 9000 Series 4WD Tractor Engines published in 1996, by John Deere
The New World Power - 9000 Series Tractors published in 1996, by John Deere
9000 Series Tractors Product Information Handbook published in 1998, by John Deere
9000/9000T Series Tractors Product Information Handbook published in 1999, by John Deere

Engine

Engine Detail — 496 ci / 8.1 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	496 ci 8.1 L
Bore/Stroke	4.56x5.06 inches 116 x 129 mm
Power	260 hp 193.9 kW
Compression	16.5:1
Rated RPM	2100
Coolant capacity	56 qts 53.0 L
Oil capacity	32 qts 30.3 L

Transmission

Transmission options
12-speed partially synchronized
24-speed partial power shift
12-speed full power shift

Transmission — John Deere Syncro

Transmission	John Deere Syncro
Type	partially synchronized
Gears	12 forward and 3 reverse
Oil capacity	147.2 qts (100mm axle) 139.3 L
	151.6 qts (110mm axle) 143.5 L
	151.2 qts (PTO 100mm axle) 143.1 L
	155.6 qts (PTO 110mm axle) 147.3 L
	140 qts (SN030001+) 132.5 L

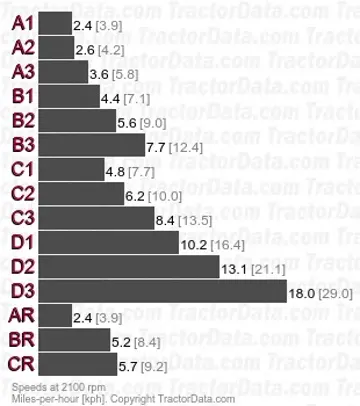

Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.
With 20.8R38 tires.

Transmission — John Deere PowrSync

Transmission	John Deere PowrSync
Type	partial power shift
Gears	24 forward and 6 reverse
Oil capacity	147.2 qts (100mm axle) 139.3 L
	151.6 qts (110mm axle) 143.5 L
	151.2 qts (PTO 100mm axle) 143.1 L
	155.6 qts (PTO 110mm axle) 147.3 L
	140 qts (SN030001+) 132.5 L

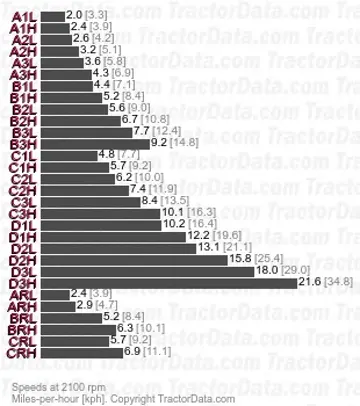

Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.
With 20.8R38 tires.

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	12 forward and 2 reverse
Oil capacity	64 qts (early) 60.6 L
	56 qts (SN030001+) 53.0 L
	60 qts (no PTO early) 56.8 L
	54 qts (no PTO late) 51.1 L
	120 qts (axles early) 113.6 L
	108 qts (axles SN030001+) 102.2 L
With 20.8R38 tires.

Dimensions

John Deere 9100 Tires
Ag front	20.8R38
Ag rear	20.8R38

Dimensions
Wheelbase	137.8 inches 350 cm
Length	274 inches 695 cm
Width	158 inches (duals) 401 cm
Height (cab)	137.5 inches 349 cm
Shipping weight	28,380 lbs 12873 kg
Ground clearance	28.8 inches (axles) 73 cm
Front axle	3.94 by 120 inches 100 by 3048 mm
Rear axle	3.94 by 120 inches 100 by 3048 mm

Tests

OCED Tractor Test 1730
Diesel 24-speed 4WD April 21 - May 1, 1997 Link: OCED Tractor Test 1730 file
PTO performance
Max power	249.38 hp 186.0 kW
Fuel use	13.2 gal/hour 50.0 l/hour
Power at rated engine speed	219.61 hp 163.8 kW
Fuel use	12.7 gal/hour 48.1 l/hour
Power at rated PTO speed	248.23 hp 185.1 kW
Fuel use	13.3 gal/hour 50.3 l/hour
Drawbar performance
Max power	199.67 hp 148.9 kW
Fuel use	12.5 gal/hour 47.3 l/hour
Max pull	33933 lbs 15392 kg
