John Deere 9230

The John Deere 9230 is a tractor produced by John Deere. It is equipped with a 549.2 ci 9.0 L engine. The rated power output is 48 gpm 181.7 lpm. Transmission: John Deere PowerShift. Operating weight: 33542 to 34510 pounds.

Overview

	2007 - 2011 9030 SeriesFour-wheel Drive (4WD) tractor
2007 - 2011
9030 Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA

John Deere 9230 Engine
John Deere 9.0L 6-cyl diesel
Engine details ...

John Deere 9230 Power
Engine	325 hp 242.4 kW
PTO (claimed)	263 hp 196.1 kW
Drawbar (tested)	241.53 hp 180.1 kW
PTO (tested)	312.59 hp 233.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	hydraulic differential lock optional
Steering	hydrostatic power
Hydraulic wet discs brakes
Trailer brakes	hydraulic optional
CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim.

Capacity
Fuel	350 gal 1324.8 L
Hydraulic system	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L

Hydraulics
Type	closed-center pressure and flow compensating
Capacity	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L
Pressure	2900 psi 200.0 bar
Valves	4 to 6
SCV flow	30 gpm 113.6 lpm
PowrSync Total flow	44 gpm 166.5 lpm
PowerShift Total flow	48 gpm 181.7 lpm
Hi-Flow Total flow	78 gpm 295.2 lpm

Tractor hitch
Rear Type	4N/3
	4N/4
Rear lift (at 24"/610mm)	15,300 lbs 6940 kg
Drawbar	Catergory 4 standard with secondary chain support. Optional reinforcement up to 11,000 pounds. Optional 12,000 pounds Catergory 5 drawbar, not available with 3-point hitch or PTO.

Power Take-off (PTO)
Rear PTO	independent (optional)
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	33542 to 34510 pounds
Front tire	620/70
Rear tire	620/70
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	950
Battery volts	12

References
New 9030 Series Tractors published in 2007, by John Deere
9230, 9330, 9430, 9530 and 9630 Tractors (OMAR283034) published in 2009
9230, 9330, 9430, 9530 and 9630 Tractors (OMRE325893) published in 2011

Engine

Engine Detail — 549.2 ci / 9.0 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	549.2 ci 9.0 L
Bore/Stroke	4.661x5.354 inches 118 x 136 mm
Emissions	Tier III
Power	325 hp 242.4 kW
Air cleaner	dual paper elements
Compression	16.3:1
Rated RPM	2100
Starter volts	12
Coolant capacity	50 qts 47.3 L
Oil capacity	33.6 qts 31.8 L

John Deere 9230 Engine

Transmission

Transmission options
24-speed partial power shift
18-speed full power shift

Transmission — John Deere PowrSync

Transmission	John Deere PowrSync
Type	partial power shift
Gears	24 forward and 6 reverse
Clutch	hydraulic wet disc

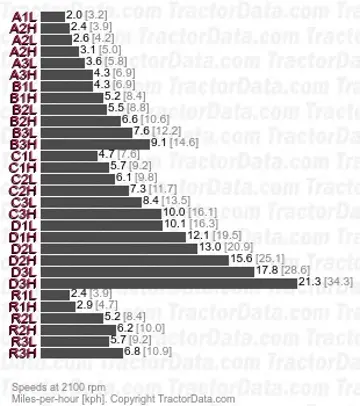

Three gears (1-3) in four ranges (A-D) with high-low power shift. Gears and range shifts are synchronized using the clutch.
With 620/70R42 tires.

Transmission — John Deere PowerShift

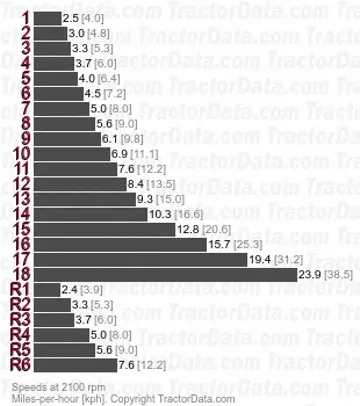

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electronic wet disc
With 620/70R42 tires.

Dimensions

John Deere 9230 Tires
Ag front	620/70 R42
Ag rear	620/70 R42

Dimensions
Wheelbase	137.8 inches 350 cm
Length	270 inches 685 cm
	285 inches (with 3-point) 723 cm
Width	118.6 inches 301 cm
Ground clearance	18.5 inches (hinge pin) 46 cm
Clearance (rear axle)	28.8 inches 73 cm
Rear axle	3.937 by 120 inches 99 by 3048 mm
Rear axle	4.331 by 120 inches 110 by 3048 mm (optional)

John Deere 9230 Weight
Shipping	33542 lbs 15214 kg
Operating	34510 lbs*Weight with 520/85R42 duals. 15653 kg
Max capacity	57000 lbs 25855 kg

John Deere 9230 Height
Hood	105 inches 266 cm
Cab	140 inches 355 cm
Exhaust	154 inches 391 cm

Tests

Nebraska Tractor Test 1940
Diesel 18-speed 4WD October 1 - 14, 2008 Link: Nebraska Tractor Test 1940 file
PTO performance
Max power	312.59 hp 233.1 kW
Fuel use	17.5 gal/hour 66.2 l/hour
Power at rated engine speed	265.73 hp 198.2 kW
Fuel use	15.6 gal/hour 59.0 l/hour
Power at rated PTO speed	306.82 hp 228.8 kW
Fuel use	17.1 gal/hour 64.7 l/hour
Drawbar performance
Max power	241.53 hp 180.1 kW
Fuel use	17.6 gal/hour 66.6 l/hour
Gear 7 used for power test.
Max pull	34,440 lbs 15621 kg
Gear 1 used for pull test.
