John Deere 8410
The John Deere 8410 is a tractor produced by John Deere. It is equipped with a 496 ci 8.1 L engine. The listed engine power is 236.79 hp 176.6 kW. Transmission: PowerShift. Operating weight: 20,440 lbs 9271 kg.
Engine Power
236.79 hp
176.6 kW
Fuel & Capacities
135 gal
511.0 L
Transmission
PowerShift
Operating Weight
20,440 lbs
9271 kg
Overview
 | 1999 - 2002
8000 Ten SeriesRow-Crop tractor
8000 Ten Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Row-Crop tractor | |
Built in Waterloo, Iowa, USA | |
Variants | |
|---|---|
8410 | wheeled tractor |
8410T | crawler tractor |
John Deere 8410 Engine | |
|---|---|
John Deere 8.1L 6-cyl diesel | |
Fuel tank | 135 gal
511.0 L |
Engine details ...  | |
John Deere 8410 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
John Deere 8410 Power | |
|---|---|
PTO (claimed) | 235 hp
175.2 kW |
Drawbar (tested) | 203.49 hp
151.7 kW |
PTO (tested) | 269.98 hp
201.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standard. |
Hydraulics | |
|---|---|
Type | closed center PFC |
Valves | 3 to 5 |
Pump flow | 30 gpm
113.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | III, IIIN |
Rear lift | 11,700 lbs
5307 kg |
15,650 lbs (optional)
7098 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 116.9 inches
296 cm |
Weight | 20,440 lbs
9271 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 140 |
Batteries | 2 |
Battery CCA | 1,850 |
Battery volts | 12 |
References | |
|---|---|
 | |
8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere |
Engine
Engine Detail — 496 ci / 8.1 L Diesel
Manufacturer | John Deere |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline |
Displacement | 496 ci
8.1 L |
Bore/Stroke | 4.56x5.06 inches
116 x 129 mm |
Compression | 16.5:1 |
Rated RPM | 2200 |
Torque | 829 lb-ft
1124.1 Nm |
Starter volts | 12 |
Oil capacity | 29.6 qts
28.0 L |
Coolant capacity | 35.9 qts
34.0 L |
Transmission
Transmission — PowerShift
Transmission | PowerShift |
Gears | 16 forward and 4 reverse |

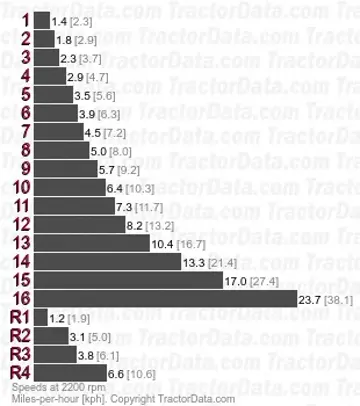

With 710/70R38 rear tires. 16th gear speed at 2400 RPM. R4 speed at 1600 RPM. | |
 | |
Dimensions
John Deere 8410 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 116.9 inches
296 cm |
Length | 206.5 inches
524 cm |
Height | 120.2 inches
305 cm |
Weight | 20,440 lbs
9271 kg |
Ground clearance | 23.2 inches
58 cm |
Tests
OCED Tractor Test 1777 | |
|---|---|
Diesel 16-speed 4WD
April 4 - May 12, 2000
Link: OCED Tractor Test 1777 file | |
PTO performance | |
Max power | 269.98 hp
201.3 kW |
Fuel use | 14.2 gal/hour
53.7 l/hour |
Power at rated engine speed | 236.79 hp
176.6 kW |
Fuel use | 13.2 gal/hour
50.0 l/hour |
Drawbar performance | |
Max power | 203.49 hp
151.7 kW |
Fuel use | 13.1 gal/hour
49.6 l/hour |
Gear 8 used for power test. | |
Max pull | 30,087 lbs
13647 kg |
Gear 3 used for pull test. | |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 8410 based on its 236.79 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 8410.
Estimated Continuous Field Runtime: 11 hrs
Approximately 11 hours of continuous field operation at ~75% rated power on a full tank (135 gal / 511 L).
Estimated 75% Load Fuel Burn~12.3 gal/hr (46.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 8410 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 8410.
Converted Equivalents:
Horsepower (HP)236.8 hp
Kilowatts (kW)176.6 kW
Metric Horsepower (PS / CV)240.1 PS
Direct Competitor Comparison
Compare John Deere 8410 against same-era industry alternatives in the same horsepower class.
Current Model
John Deere
John Deere 8410
Engine Power:236.79 hp
176.6 kW
★ Baseline Reference
