John Deere 9300

The John Deere 9300 is a tractor produced by John Deere. It is equipped with a 765 ci 12.5 L engine. The rated power output is 360 hp 268.5 kW. Transmission: John Deere PowerShift. Operating weight: 31,440 lbs 14261 kg.

Overview

	1997 - 2001 9000 SeriesFour-wheel Drive (4WD) tractor
1997 - 2001
9000 Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA

Variants
9300	wheeled tractor
9300T	crawler

John Deere 9300 Engine
John Deere 12.5L 6-cyl diesel
Engine details ...

John Deere 9300 Power
Engine	360 hp 268.5 kW
PTO (claimed)	302 hp 225.2 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab standard.

Capacity
Fuel	270 gal 1022.0 L
Hydraulic system	26 gal 98.4 L

Hydraulics
Type	closed center PFC
Capacity	26 gal 98.4 L
Pressure	2900 psi 200.0 bar
Valves	3 to 5
Pump flow	35 gpm 132.5 lpm
Total flow	44 gpm 166.5 lpm

Tractor hitch
Rear Type	III
Rear lift	13,871 lbs 6291 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (optional)

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	31,440 lbs 14261 kg
Front tire	620/70R42
Rear tire	620/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	140
Batteries	3
Battery CCA	925
Battery volts	12

References
New 9000 Series Tractors published in 1996, by John Deere
Typical Questions & Answers - 9000 Series 4WD Tractor Engines published in 1996, by John Deere
The New World Power - 9000 Series Tractors published in 1996, by John Deere
9000 Series Tractors Product Information Handbook published in 1998, by John Deere
9000/9000T Series Tractors Product Information Handbook published in 1999, by John Deere

Engine

Engine Detail — 765 ci / 12.5 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	765 ci 12.5 L
Bore/Stroke	5.00x6.50 inches 127 x 165 mm
Power	360 hp 268.5 kW
Compression	16:1
Rated RPM	2100
Coolant capacity	64 qts 60.6 L
Oil capacity	44 qts 41.6 L

John Deere 9300 Engine

Transmission

Transmission options
12-speed partially synchronized
24-speed partial power shift
12-speed full power shift

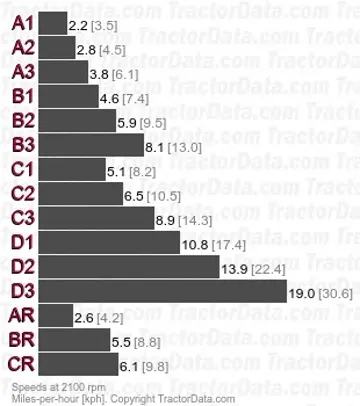

Transmission — John Deere Syncro

Transmission	John Deere Syncro
Type	partially synchronized
Gears	12 forward and 3 reverse
Oil capacity	147.2 qts (100mm axle) 139.3 L
	151.6 qts (110mm axle) 143.5 L
	151.2 qts (PTO 100mm axle) 143.1 L
	155.6 qts (PTO 110mm axle) 147.3 L
	140 qts (SN030001+) 132.5 L
Three speeds (1-3 and reverse) in four ranges (A-D). Synchronized shifting between speeds using the clutch. Tractor must be stopped, and clutch used, to shift ranges. Reverse is not available in the highest (D) range.
With 620/70R42 tires.

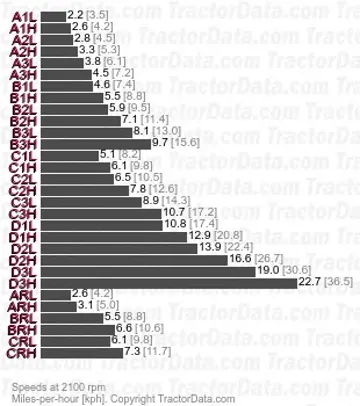

Transmission — John Deere PowrSync

Transmission	John Deere PowrSync
Type	partial power shift
Gears	24 forward and 6 reverse
Oil capacity	147.2 qts (100mm axle) 139.3 L
	151.6 qts (110mm axle) 143.5 L
	151.2 qts (PTO 100mm axle) 143.1 L
	155.6 qts (PTO 110mm axle) 147.3 L
	140 qts (SN030001+) 132.5 L
Three speeds (1, 2, 3 and reverse) in four ranges (A-D) plus high-low power shift. Speeds and ranges may be shifted on the move, using the clutch. High-low power shift for each speed using lever.
With 620/70R42 tires.

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	12 forward and 2 reverse
Oil capacity	64 qts (early) 60.6 L
	56 qts (SN030001+) 53.0 L
	60 qts (no PTO early) 56.8 L
	54 qts (no PTO late) 51.1 L
	120 qts (axles early) 113.6 L
	108 qts (axles SN030001+) 102.2 L
With 620/70R42 tires.

Dimensions

John Deere 9300 Tires
Ag front	620/70R42
Ag rear	620/70R42

Dimensions
Wheelbase	137.8 inches 350 cm
Length	274 inches 695 cm
Width	169 inches (duals) 429 cm
Height (cab)	137.5 inches 349 cm
Shipping weight	31,440 lbs 14261 kg
Ground clearance	28.8 inches (axles) 73 cm
Front axle	3.94 by 120 inches 100 by 3048 mm
Front axle	4.31 by 120 inches 109 by 3048 mm
Rear axle	3.94 by 120 inches 100 by 3048 mm
Rear axle	4.31 by 120 inches 109 by 3048 mm
