John Deere 8295RT

The John Deere 8295RT is a tractor produced by John Deere. It is equipped with a 548 ci 9.0 L engine. The listed engine power is Diesel (net): 284 hp / 211.8 kW; Diesel (gross): 295 hp / 220.0 kW. Transmission: Infinitely Variable Transmission (IVT). Drive type: crawler. Operating weight: 34,460 lbs 15631 kg.

Overview

	2009 - 2010 Agricultural Crawler tractor

Production
Manufacturer	John Deere
Agricultural Crawler tractor
Built in Waterloo, Iowa, USA

Variants
8295R	wheeled tractor

John Deere 8295RT Engine
John Deere 9.0L 6-cyl diesel
Engine details ...

John Deere 8295RT Transmission
16-speed full power shift
Transmission details ...

John Deere 8295RT Power
Engine (gross)	295 hp 220.0 kW
Engine (net)	284 hp 211.8 kW
Engine (max)	322 hp 240.1 kW
PTO (claimed)	235 hp 175.2 kW
Drawbar (tested)	212.62 hp 158.6 kW
PTO (tested)	279.14 hp 208.2 kW
Performance test details ...

Mechanical
Drive	crawler
Steering	electro-hydraulic power
Hydraulic wet disc brakes
CommandView cab standard with heat and air-conditioning. Optional automatic temperature control, mirros, and front/rear windshield wipers.

Capacity
Fuel	200 gal 757.0 L
Hydraulic system	68.3 gal 258.5 L

Hydraulics
Type	closed center pressure-flow compensated
Capacity	68.3 gal 258.5 L
Pressure	2900 psi 200.0 bar
Valves	3 to 5
Pump flow	35 gpm 132.5 lpm
Total flow	44 gpm 166.5 lpm
	60 gpm (optional) 227.1 lpm

Tractor hitch
Rear Type	III/IIIN
	IVN/III
Rear lift (at 24"/610mm)	16,800 lbs 7620 kg
	19,300 lbs (optional) 8754 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1-3/4)

Dimensions & Tracks
Wheelbase	99 inches 251 cm
Weight	34,460 lbs 15631 kg
25-inch tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	925
Battery volts	12

References
8R/8RT Series published in 2009, by John Deere
8R/8RT Series - Top 10 Feature & Benefits, plus Tractor Optimization Tips published in 2009, by John Deere

Engine

Engine Detail — 548 ci / 9.0 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	548 ci 9.0 L
Bore/Stroke	4.661x5.354 inches 118 x 136 mm
Emissions	Tier 3
	Stage IIIA
Rated Power (net)	284 hp 211.8 kW
Rated Power (gross)	295 hp 220.0 kW
Maximum Power (gross)	322 hp 240.1 kW
Air cleaner	dual paper elements
Compression	16.3:1
Rated RPM	2100
Operating RPM	1500-2100
Starter	electric
Starter volts	12
Coolant capacity	42.3 qts 40.0 L
Oil capacity	27 qts 25.6 L
Oil change	250 h
	375 h (JD Plus-50 II oil)

Transmission

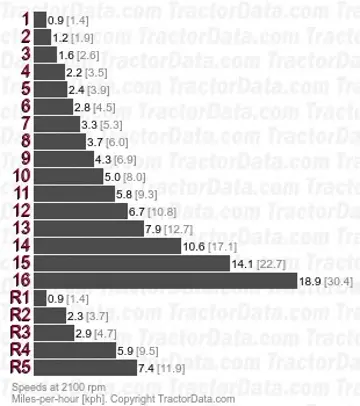

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	16 forward and 4 reverse
Oil capacity	273.2 qts 258.6 L
Oil type	JD Hy-Gard

	JD Hy-Gard

Transmission — Infinitely Variable Transmission (IVT)

Transmission	Infinitely Variable Transmission (IVT)
Gears	infinite forward and reverse
Oil capacity	273.2 qts 258.6 L
Oil type	JD Hy-Gard

	JD Hy-Gard

Dimensions

John Deere 8295RT Tracks
Width	25 inches 63 cm
Width	16 inches 40 cm
Width	18 inches 45 cm
Width	24 inches 60 cm
Width	30 inches 76 cm

Dimensions
Wheelbase	99 inches 251 cm
Length	223.5 inches 567 cm
Width	150 inches 381 cm
Height (cab)	130.8 inches 332 cm
Shipping weight	34,460 lbs 15631 kg
Clearance (rear axle)	24.5 inches 62 cm
Clearance (drawbar)	14.6 inches 37 cm

Tests

OCED Tractor Test 1970
Diesel 16-speed crawler April 28 - May 12, 2010 Link: OCED Tractor Test 1970 file
PTO performance
Max power	279.14 hp 208.2 kW
Fuel use	15.0 gal/hour 56.8 l/hour
Power at rated engine speed	242.81 hp 181.1 kW
Fuel use	13.3 gal/hour 50.3 l/hour
Power at rated PTO speed	267.29 hp 199.3 kW
Fuel use	14.4 gal/hour 54.5 l/hour
Drawbar performance
Max power	212.62 hp 158.6 kW
Fuel use	13.4 gal/hour 50.7 l/hour
Gear 8 used for power test.
Max pull	32,799 lbs 14877 kg
Gear 3 used for pull test.
