John Deere 9360R

The John Deere 9360R is a tractor produced by John Deere. It is equipped with a 549.2 ci 9.0 L engine. The rated power output is 360 hp 268.5 kW. Transmission: John Deere PowerShift. Operating weight: 34420 to 37705 pounds.

Overview

	2012 - 2014 9R/RT SeriesFour-wheel Drive (4WD) tractor
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA
Original price was $280,427 in 2014

John Deere 9360R Engine
John Deere 9.0L 6-cyl diesel
Fuel tank	350 gal 1324.8 L
Engine details ...

John Deere 9360R Power
Engine (gross)	360 hp 268.5 kW
Engine (max)	396 hp 295.3 kW
PTO (claimed)	287 hp 214.0 kW
Drawbar (tested)	279.64 hp 208.5 kW
PTO (tested)	346.07 hp 258.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	fully-locking electro-hydraulic
Steering	hydraulic power
Hydraulic wet disc brakes
Trailer brakes	hydraulic optional
CommandView II cab standard with air-conditioning.

Hydraulics
Type	closed center pressure flow compensated
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	44 gpm 166.5 lpm
	48 gpm (PowerShift) 181.7 lpm
	78 gpm (High-Flow) 295.2 lpm
SCV flow	37 gpm 140.0 lpm
	45 gpm (19.1mm SCV) 170.3 lpm

Tractor hitch
Rear Type	4N/3
	4N/4
Control	electronic draft sensing
Rear lift	15,300 lbs 6940 kg
	20,000 lbs (optional) 9072 kg
Drawbar	Category 4 standard with optional heavy-duty support . Optional Category 5 with heavy-duty support rated at 5,440 kg. (2,470 kg)

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	34420 to 37705 pounds
Front tire	620/70R42
Rear tire	620/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Charging volts	12
Batteries	3
Battery CCA	925
Battery volts	12

Engine

Engine Detail — 549.2 ci / 9.0 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	549.2 ci 9.0 L
Bore/Stroke	4.661x5.354 inches 118 x 136 mm
Emissions	Tier 4A
Emission control	exhaust gas recirculation (EGR)
Rated Power (gross)	360 hp 268.5 kW
Maximum Power (gross)	396 hp 295.3 kW
Fuel system	electronic high-pressure common rail
Compression	16:1
Rated RPM	2100
Starter volts	12

Transmission

Transmission options
24-speed partial power shift
18-speed full power shift

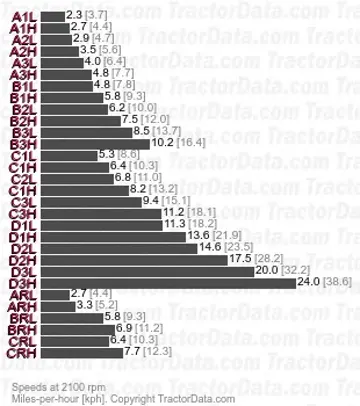

Transmission — John Deere PowrSync

Transmission	John Deere PowrSync
Type	partial power shift
Gears	24 forward and 6 reverse
Clutch	hydraulic wet disc
Three gears (1-3) in four ranges (A-D) with high-low power shift. Synchronized shifting between gears and ranges.
With Group 47 rear tires.

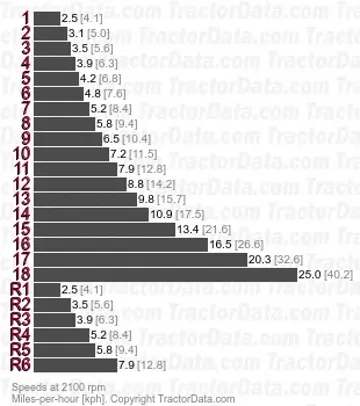

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	hydraulic wet disc
With Group 47 rear tires.

Dimensions

John Deere 9360R Tires
Ag front	620/70R42
Ag rear	620/70R42

Dimensions
Wheelbase	137.8 inches 350 cm
Length	282 inches 716 cm
With hitch Length	295 inches 749 cm
Width	120 inches 304 cm
Front axle	4.33 by 120 inches 109 by 3048 mm
Front axle	4.72 by 120 inches 119 by 3048 mm (
Rear axle	4.33 by 120 inches 109 by 3048 mm
Rear axle	4.72 by 120 inches 119 by 3048 mm (optional)

John Deere 9360R Weight
Shipping	34420 lbs 15612 kg
Operating	37705 lbs (480/80R46 duals) 17102 kg
Max capacity	38553 lbs 17487 kg

John Deere 9360R Height
Hood	106 inches 269 cm
Cab	143 inches 363 cm
	149 inches (GPS) 378 cm
Exhaust	175 inches 444 cm

Tests

OCED Tractor Test 2030
Diesel 18-speed 4WD May 22 - June 4, 2012 Link: OCED Tractor Test 2030 file
PTO performance
Max power	346.07 hp 258.1 kW
Fuel use	19.2 gal/hour 72.7 l/hour
Power at rated engine speed	309.30 hp 230.6 kW
Fuel use	17.5 gal/hour 66.2 l/hour
Power at rated PTO speed	344.13 hp 256.6 kW
Fuel use	19.1 gal/hour 72.3 l/hour
Drawbar performance
Max power	279.64 hp 208.5 kW
Fuel use	17.8 gal/hour 67.4 l/hour
Gear 7 used for power test.
Max pull	36076 lbs 16364 kg
Gear 1 used for pull test.
