John Deere 9410R

The John Deere 9410R is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The rated power output is 410 hp 305.7 kW. Transmission: John Deere PowerShift. Operating weight: 38060 to 38785 pounds.

Overview

	2012 - 2014 9R/RT SeriesFour-wheel Drive (4WD) tractor
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA
Original price was $310,609 in 2014

John Deere 9410R Engine
John Deere 13.5L 6-cyl diesel
Fuel tank	350 gal 1324.8 L
Engine details ...

John Deere 9410R Power
Engine (gross)	410 hp 305.7 kW
Engine (max)	451 hp 336.3 kW
PTO (claimed)	319 hp 237.9 kW
Drawbar (tested)	321.85 hp 240.0 kW
PTO (tested)	377.93 hp 281.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	fully-locking electro-hydraulic
Steering	hydraulic power
Hydraulic wet disc brakes
Trailer brakes	hydraulic optional
CommandView II cab standard with air-conditioning.

Hydraulics
Type	closed center pressure flow compensated
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	44 gpm 166.5 lpm
	48 gpm (PowerShift) 181.7 lpm
	78 gpm (High-Flow) 295.2 lpm
SCV flow	37 gpm 140.0 lpm
	45 gpm (19.1mm SCV) 170.3 lpm

Tractor hitch
Rear Type	4N/3
	4N/4
Control	electronic draft sensing
Rear lift	15,300 lbs 6940 kg
	20,000 lbs (optional) 9072 kg
Drawbar	Category 4 standard with optional heavy-duty support . Optional Category 5 with heavy-duty support rated at 5,440 kg. (2,470 kg)

Power Take-off (PTO)
Rear PTO	independent (optional)
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	38060 to 38785 pounds
Front tire	710/70R38
Rear tire	710/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Charging volts	12
Batteries	3
Battery CCA	925
Battery volts	12

Engine

Engine Detail — 826.7 ci / 13.5 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	826.7 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Emissions	Tier 4A
Emission control	exhaust gas recirculation (EGR)
Rated Power (gross)	410 hp 305.7 kW
Maximum Power (gross)	451 hp 336.3 kW
Fuel system	electronic unit injectors
Compression	16:1
Rated RPM	2100
Starter volts	12

Transmission

Transmission options
24-speed partial power shift
18-speed full power shift

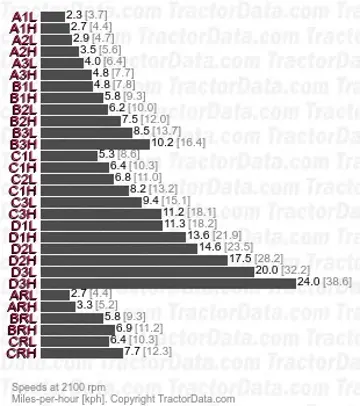

Transmission — John Deere PowrSync

Transmission	John Deere PowrSync
Type	partial power shift
Gears	24 forward and 6 reverse
Clutch	hydraulic wet disc
Three gears (1-3) in four ranges (A-D) with high-low power shift. Synchronized shifting between gears and ranges.
With Group 47 rear tires.

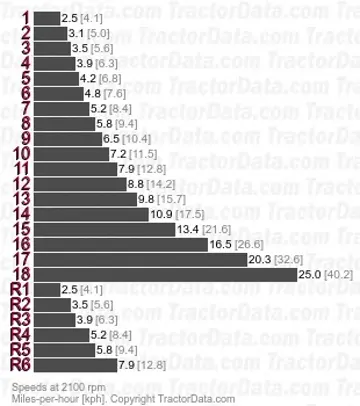

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	hydraulic wet disc
With Group 47 rear tires.

Dimensions

John Deere 9410R Tires
Ag front	710/70R38
Ag rear	710/70R38

Dimensions
Wheelbase	137.8 inches 350 cm
Length	282 inches 716 cm
With hitch Length	295 inches 749 cm
Width	120 inches 304 cm
Front axle	4.33 by 120 inches 109 by 3048 mm
Front axle	4.72 by 120 inches 119 by 3048 mm (
Rear axle	4.33 by 120 inches 109 by 3048 mm
Rear axle	4.72 by 120 inches 119 by 3048 mm (optional)

John Deere 9410R Weight
Shipping	38060 lbs 17264 kg
Operating	38785 lbs (480/80R46 duals) 17592 kg
Max capacity	44574 lbs 20218 kg

John Deere 9410R Height
Hood	106 inches 269 cm
Cab	143 inches 363 cm
	149 inches (GPS) 378 cm
Exhaust	175 inches 444 cm

Tests

OCED Tractor Test 2039
Diesel 18-speed 4WD September 17 - October 8, 2012 Link: OCED Tractor Test 2039 file
PTO performance
Max power	377.93 hp 281.8 kW
Fuel use	21.2 gal/hour 80.2 l/hour
Power at rated engine speed	328.75 hp 245.1 kW
Fuel use	21.0 gal/hour 79.5 l/hour
Power at rated PTO speed	368.32 hp 274.7 kW
Fuel use	21.5 gal/hour 81.4 l/hour
Drawbar performance
Max power	321.85 hp 240.0 kW
Fuel use	21.8 gal/hour 82.5 l/hour
Gear 7 used for power test.
Max pull	36433 lbs 16526 kg
Gear 2 used for pull test.
