John Deere 9510RT

The John Deere 9510RT is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The listed engine power is Diesel (net): 490 hp / 365.4 kW; Diesel (gross): 510 hp / 380.3 kW. Transmission: John Deere PowerShift. Drive type: crawler. Operating weight: 44910 to 46645 pounds.

Overview

	2012 - 2014 9R/RT SeriesAgricultural Crawler tractor 9R/RT Series Agricultural Crawler tractor

Production
Manufacturer	John Deere
Agricultural Crawler tractor
Built in Waterloo, Iowa, USA
Original price was $428,960 in 2014

Variants
9510R	4WD
9510RT	crawler

John Deere 9510RT Engine
John Deere 13.5L 6-cyl diesel
Fuel tank	340 gal 1286.9 L
Engine details ...

John Deere 9510RT Transmission
18-speed full power shift
Transmission details ...

John Deere 9510RT Power
Engine (gross)	510 hp 380.3 kW
Engine (net)	490 hp 365.4 kW
PTO (claimed)	319 hp 237.9 kW
Drawbar (tested)	391.80 hp 292.2 kW
PTO (tested)	358.38 hp 267.2 kW
Performance test details ...

Mechanical
Drive	crawler
Final drives	outboard planetary
Steering	hydrostatic power differential
Hydraulic wet disc brakes
CommandView II cab standard with air-conditioning.

Hydraulics
Type	closed center pressure flow compensated
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	48 gpm 181.7 lpm
	78 gpm (High-Flow) 295.2 lpm
SCV flow	37 gpm 140.0 lpm
	45 gpm (19.1mm SCV) 170.3 lpm

Tractor hitch
Rear Type	4N/4
Control	electronic draft sensing
Rear lift	15,300 lbs 6940 kg
	20,000 lbs (optional) 9072 kg
Drawbar	Category 5 wide-swing drawbar standard, rated to 4,581 kg. Optional heavy-duty kit rated to 5,440 kg.

Power Take-off (PTO)
Rear PTO	independent (optional)
Rear PTO Type	1000 (1.75)

Dimensions & Tracks
Wheelbase	116 inches 294 cm
Weight	44910 to 46645 pounds
30-inch tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	3
Battery CCA	925
Battery volts	12

Engine

Engine Detail — 826.7 ci / 13.5 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	826.7 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Emissions	Interim Tier 4
Emission control	exhaust gas recirculation (EGR)
Rated Power (net)	490 hp 365.4 kW
Rated Power (gross)	510 hp 380.3 kW
Cooling system	variable ratio belt drive
Compression	16:1
Rated RPM	2100
Idle RPM	900-2200
Operating RPM	1500-2100
Starter	electric
Starter volts	12
Oil capacity	50.7 qts 48.0 L
Coolant capacity	58.2 qts 55.1 L

Transmission

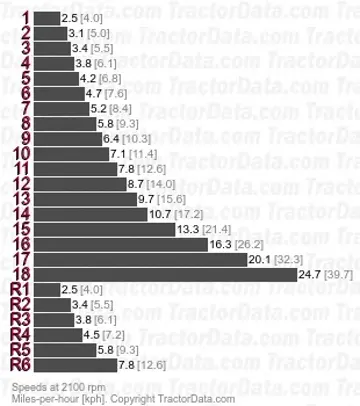

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	hydraulic wet disc

Dimensions

John Deere 9510RT Tracks
Width	30 inches 76 cm

Dimensions
Wheelbase	116 inches 294 cm
Length	237 inches 601 cm
Width	136 inches (30-in track) 345 cm
	142 inches (36-in track) 360 cm
	156 inches (frame weights) 396 cm
Height (cab)	134 inches 340 cm
Height (exhaust)	155 inches 393 cm
Shipping weight	44910 lbs 20371 kg
Operating weight	46645 lbs 21158 kg
Ground clearance	16 inches 40 cm
Clearance (drawbar)	19 inches 48 cm

Tests

OCED Tractor Test 2043
Diesel 18-speed crawler October 2 - 16, 2012 Link: OCED Tractor Test 2043 file
PTO performance
Max power	358.38 hp 267.2 kW
Fuel use	20.6 gal/hour 78.0 l/hour
Power at rated engine speed	313.42 hp 233.7 kW
Fuel use	20.8 gal/hour 78.7 l/hour
Power at rated PTO speed	353.42 hp 263.5 kW
Fuel use	21.3 gal/hour 80.6 l/hour
Drawbar performance
Max power	391.80 hp 292.2 kW
Fuel use	26.0 gal/hour 98.4 l/hour
Gear 7 used for power test.
Max pull	48210 lbs 21868 kg
Gear 1 used for pull test.
