John Deere 111H

The John Deere 111H is a tractor produced by John Deere Lawn Tractors. It is equipped with a 399 cc 24.4 ci engine. The listed engine power is Gasoline (listed): 11 hp / 8.2 kW. Transmission: infinite forward and reverse. Operating weight: 470 lbs 213 kg.

Overview

	1982 - 1984 100 Lawn SeriesLawn tractor 100 Lawn Series Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price was $2,649 in 1983

Variants
111	gear transmission
111H	hydrostatic transmission

John Deere 111H Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	2.5 gal 9.5 L
Engine details ...

John Deere 111H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	44.7 inches 113 cm
Weight	470 lbs 213 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	3
Battery volts	12

References
Operator's Manual 111 Hydrostatic Lawn Tractor (OM-M84079) published in 1981
Lawn Tractors and Riding Mowers published in 1982, by John Deere
Lawn Tractors & Riding Mowers 1983 published by John Deere
Consumer Products Price List published in 1983, by John Deere
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere

Engine

Engine Detail — 399 cc / 24.4 ci Gasoline

Manufacturer	Briggs & Stratton 252707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	399 cc 24.4 ci
Bore/Stroke	3.4375x2.625 inches 87 x 67 mm
Power	11 hp 8.2 kW
Starter	electric
Starter volts	12
Sparkplug	AC CS-45
	Champion RJ17LM *CJ-8 in the operator manual, users report that the RJ17M is the correct plug
	Autolite A79
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Manufacturer	Eaton
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.25 qts 2.1 L
Single-range hydrostatic transmission operated with right-hand control lever.

Dimensions

John Deere 111H Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	44.7 inches 113 cm
Length	61.9 inches 157 cm
Height	39.4 inches 100 cm
Weight	470 lbs 213 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount John Deere
	2-blade with manual lift
Cutting width	38 inches 96 cm
Overall width	49.7 inches 126 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

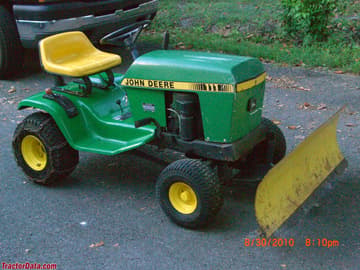

John Deere 111H with front-mount blade and tire chains.

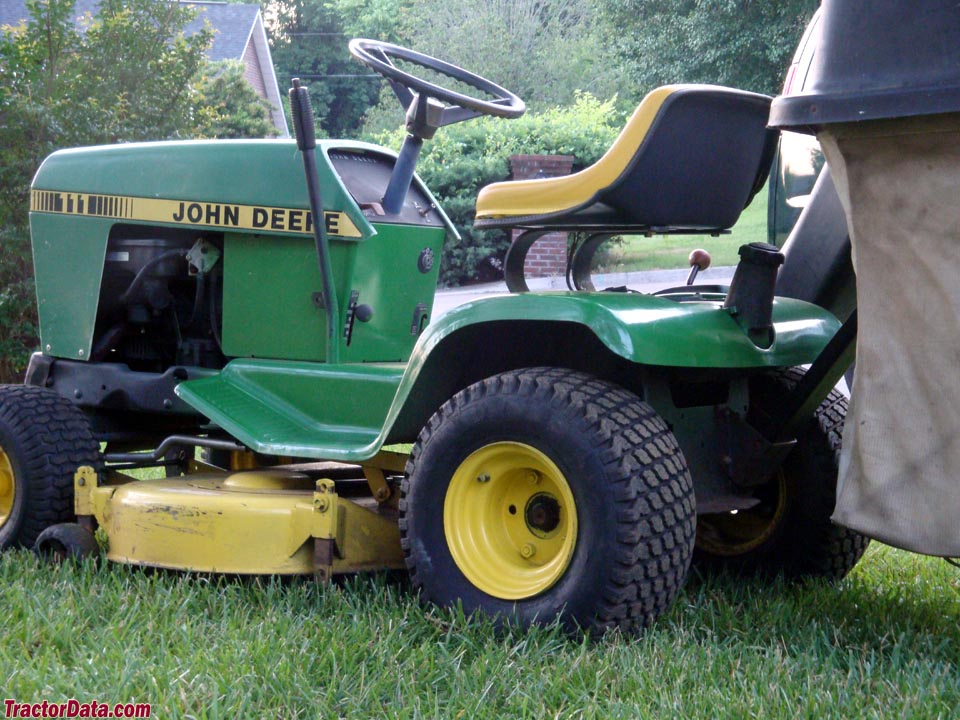

John Deere 111H with mower and rear bagger.
