John Deere X110

The John Deere X110 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The listed engine power is Gasoline (gross): 13.4 hp / 10.0 kW. Transmission: Tuff Torq T40. Operating weight: 450 lbs 204 kg.

Overview

	2007 - 2010 X100 SeriesLawn tractor
2007 - 2010
X100 Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA

John Deere X110 Engine
10.0KW Briggs & Stratton 501cc 1-cyl gasoline
Fuel tank	3.9 gal 14.8 L
Engine details ...

John Deere X110 Transmission
hydrostatic
Transmission details ...

Mechanical
Steering	manual
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Weight	450 lbs 204 kg
Front tire	15x6.00-6
Rear tire	20x8.0-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	regulated circuit
Charging amps	9
Battery volts	12
Battery Group	BCI U1

Engine

Engine Detail — 501 cc / 30.6 ci Gasoline

Manufacturer	Briggs & Stratton 31
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	501 cc 30.6 ci
Bore/Stroke	3.57x3.06 inches 91 x 78 mm
Power (gross)	13.4 hp 10.0 kW
Air cleaner	paper and foam
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.012 inches 0.305 mm
Intake valve clearance	0.004 inches 0.102 mm
Exhaust valve clearance	0.006 inches 0.152 mm
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — Tuff Torq T40

Transmission	Tuff Torq T40
Type	hydrostatic

Dimensions

John Deere X110 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	20x8.0-8

Dimensions
Length	68.75 inches 174 cm
Width	51.75 inches 131 cm
Height	42.5 inches 107 cm
Weight	450 lbs 204 kg

Attachments

42" Mower deck
Type	mid-mount John Deere 42C
	2-blade with manual lift
Cutting width	42 inches 106 cm
Overall width	51.75 inches 131 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

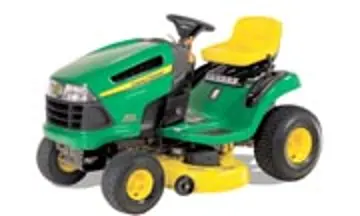

John Deere X110 tractor photo
