John Deere 155C

The John Deere 155C is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Tuff Torq HD K46. Operating weight: 524 lbs 237 kg.

Overview

	2006 Lawn tractor
2006
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $2,599 in 2006

John Deere 155C Engine
25HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

John Deere 155C Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	electric

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	524 lbs 237 kg
Front tire	16x6.5-8
Rear tire	22x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	regulated circuit
Charging amps	16
Battery volts	12
Battery Group	U1

References
Operator's Manual 100 Series (OMGX21821) published in 2006

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	724 cc 44.2 ci
Bore/Stroke	3.15x2.64 inches 80 x 67 mm
Power	25 hp 18.6 kW
Air cleaner	paper with foam
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.225 inches 5.715 mm
Intake valve clearance	0.005 inches 0.127 mm
Exhaust valve clearance	0.005 inches 0.127 mm
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — Tuff Torq HD K46

Transmission	Tuff Torq HD K46
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

John Deere 155C Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	22x9.5-12

Dimensions
Wheelbase	48.9 inches 124 cm
Length	69 inches 175 cm
Width	60.5 inches 153 cm
Height	46 inches 116 cm
Weight	524 lbs 237 kg

Attachments

48" Mower deck
Type	mid-mount John Deere
	manual lift
Cutting width	48 inches 121 cm

Photos

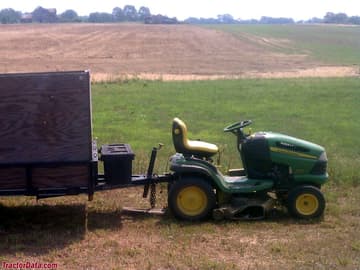

John Deere 155C
