John Deere 425
The John Deere 425 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 617 cc 37.7 ci engine. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW; Gasoline (listed): 1.1 hp / 0.8 kW. Transmission: Tuff Torq K91. Operating weight: 805 to 900 pounds.
Engine Power
Gasoline (listed): 20 hp / 14.9 kW; Gasoline (listed): 1.1 hp / 0.8 kW
Fuel & Capacities
6.5 gal
24.6 L
Transmission
Tuff Torq K91
Operating Weight
805 to 900 pounds
Overview
 | 1992 - 2001
400 SeriesGarden tractor
400 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $8,995 in 1995 | |
John Deere 425 Engine | |
|---|---|
20HP Kawasaki 617cc 2-cyl gasoline | |
Fuel tank | 6.5 gal
24.6 L |
Engine details ...  | |
John Deere 425 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Steering | power |
four-wheel steering optional | |
Wet disc brakes | |
Open operator station. Cozy cab available with optional heater. | |
Hydraulics | |
|---|---|
Type | Gerotor |
Pressure | 1000 psi
69.0 bar |
Mid valves | 2 OptOptional |
Pump flow | 4.65 gpm
17.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Rear lift | 650 lbs
294 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent *Rear PTO optional. Tractor must be off for shifting between rear, mid, or both PTOs. |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Mid PTO | independent |
Clutch | electro-hydraulic |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
2WS Wheelbase | 50.4 inches
128 cm |
AWS Wheelbase | 49.4 inches
125 cm |
Weight | 805 to 900 pounds |
Front tire | 16x7.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 20 |
Battery CCA | 340 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
400 Series Lawn and Garden Tractors published in 1993, by John Deere | |
400 Series Lawn and Garden Tractors published in 1994, by John Deere | |
400 Series Product Information Handbook published in 1992, by John Deere | |
Beauty or the Beast? published in 2000, by John Deere | |
Operator's Manual 425 and 445 (OMM117697) published in 1993 | |
Lawn and Garden Product Information Handbook published in 1996, by John Deere | |
Lawn and Garden Product Information Handbook published in 1997, by John Deere | |
Lawn and Garden Product Information Handbook published in 2000, by John Deere | |
Lawn and Garden Product Information Handbook published in 2001, by John Deere | |
John Deere Lawn and Garden Tractors published in 1995 | |
Lawn and Garden Tractors published in 1998, by John Deere | |
Lawn and Garden Tractors published in 2000, by John Deere | |
Lawn & Grounds Care Sales Manual published in 1997, by John Deere* | |
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere | |
Operator's Manual 40 Loader (OMM123903) published in 1996 | |
*Publication contains known errors. |
Engine
Engine Detail — 617 cc / 37.7 ci Gasoline
Manufacturer | Kawasaki FD620D |
Fuel Type | Gasoline |
Configuration | 2-cylinder, liquid-cooled horizontal-shaft V-twin |
Early versions of the engine used plastic cam gears. Steel cams were used beginning with engine serial number 149283. | |
Displacement | 617 cc
37.7 ci |
Bore/Stroke | 2.992x2.68 inches
76 x 68 mm |
Power | 20 hp
14.9 kW |
Fuel system | carburetor |
Air cleaner | paper element with pre-cleander |
Compression | 9:1 |
Rated RPM | 3550 |
Idle RPM | 1450-3550 |
Starter | electric |
Starter volts | 12 |
Starter power | 1.1 hp
0.8 kW |
Coolant capacity | 3 qts
2.8 L |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.6 qts
1.5 L |

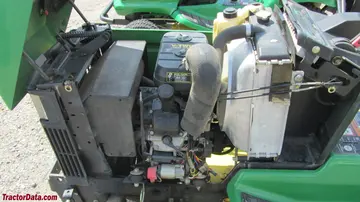

John Deere 425 Engine | |
|---|---|
 |
Transmission
Transmission — Tuff Torq K91
Transmission | Tuff Torq K91 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
2WS Oil capacity | 7 qts
6.6 L |
AWS Oil capacity | 6 qts
5.7 L |
 | |

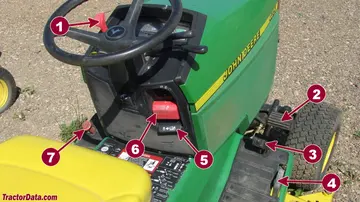

425 Transmission Controls | |
|---|---|
 | |
1 | Throttle |
2 | Brake |
3 | Forward |
4 | Reverse |
5 | Cruise control |
6 | Parking brake |
7 | Differential lock |
John Deere 425 Transmission | |
|---|---|
 |
Dimensions
John Deere 425 Tires | |
|---|---|
Lawn/turf front | 16x7.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
2WS Wheelbase | 50.4 inches
128 cm |
AWS Wheelbase | 49.4 inches
125 cm |
Length | 75 inches
190 cm |
Width | 47 inches
119 cm |
Height | 45.9 inches
116 cm |
Height (cab) | 74 inches
187 cm |
2WS Weight | 805 lbs
365 kg |
AWS Weight | 900 lbs
408 kg |
5-bolt flange rear axle | |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
The 425 was compatible with a 42-inch hydraulic tiller (M04390X) on the three-point hitch. To mount the front blade or snowblower the 425 requires the hydraulic couplers (BM17763) and the front hitch (BM17347). The front PTO kit (BM17330) is required for a snowblower. |
Photos
John Deere 425 with all-wheel steering, left side.

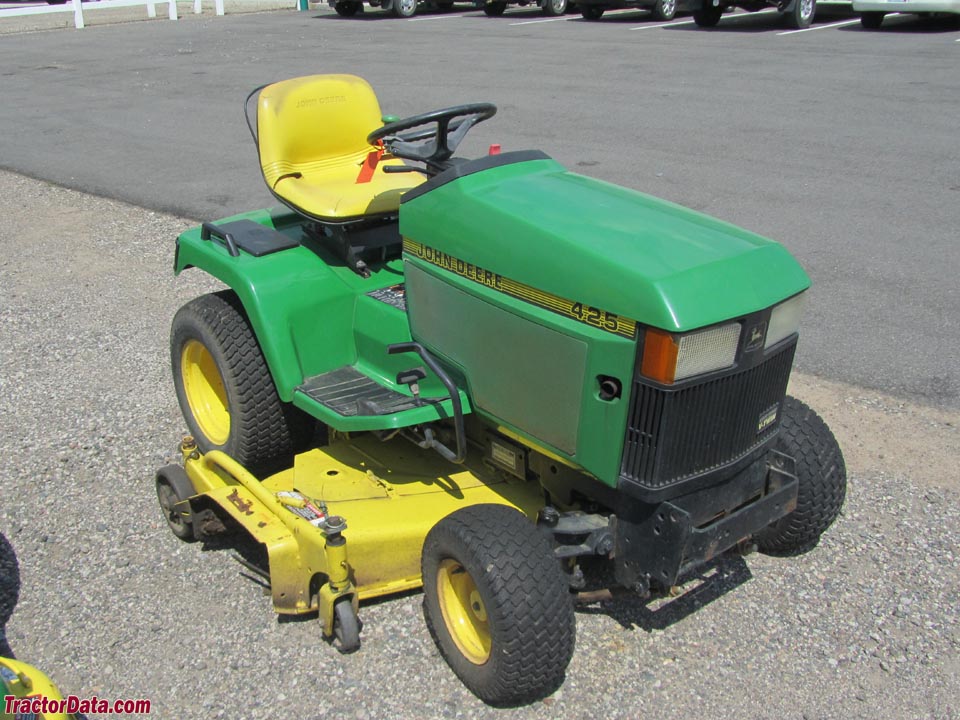

John Deere 425, right side.

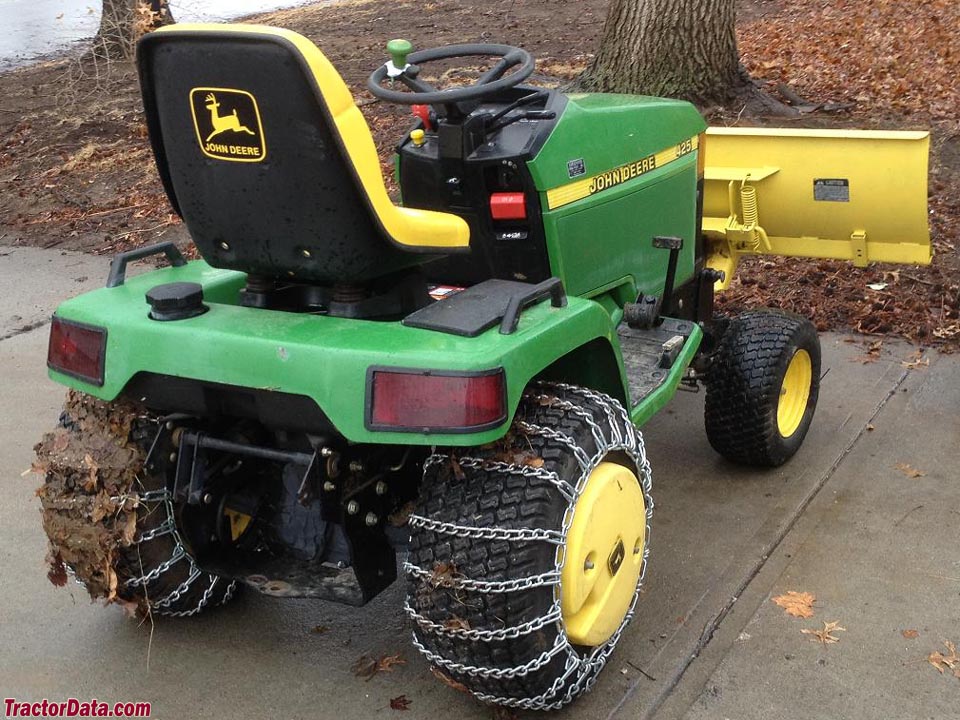

John Deere 425 with chains and front blade, rear view.

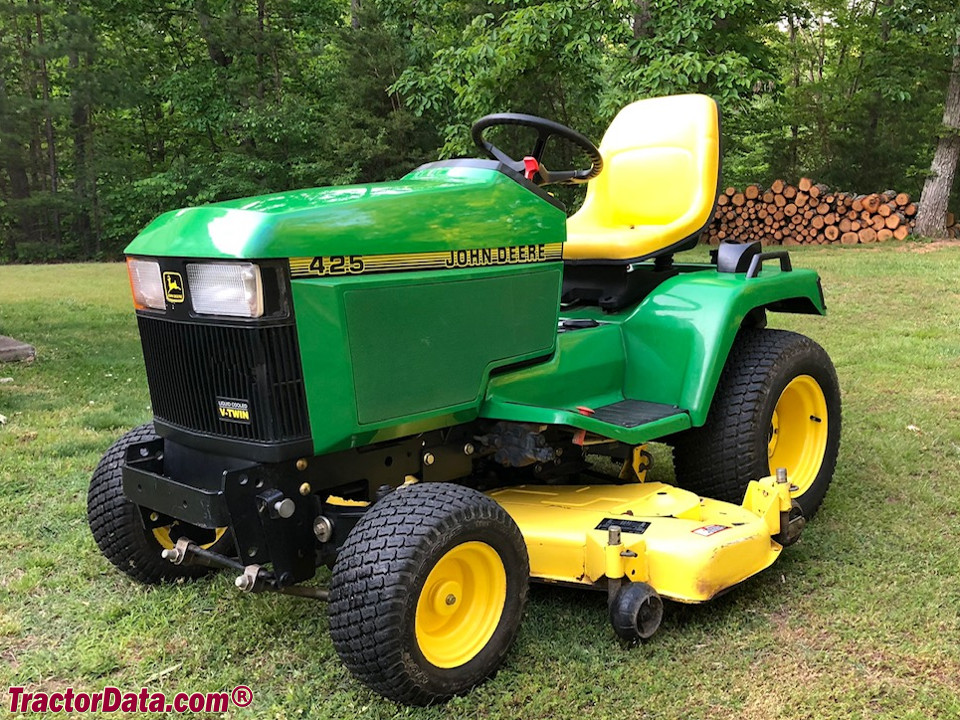

John Deere 425 with mower and three-point hitch.

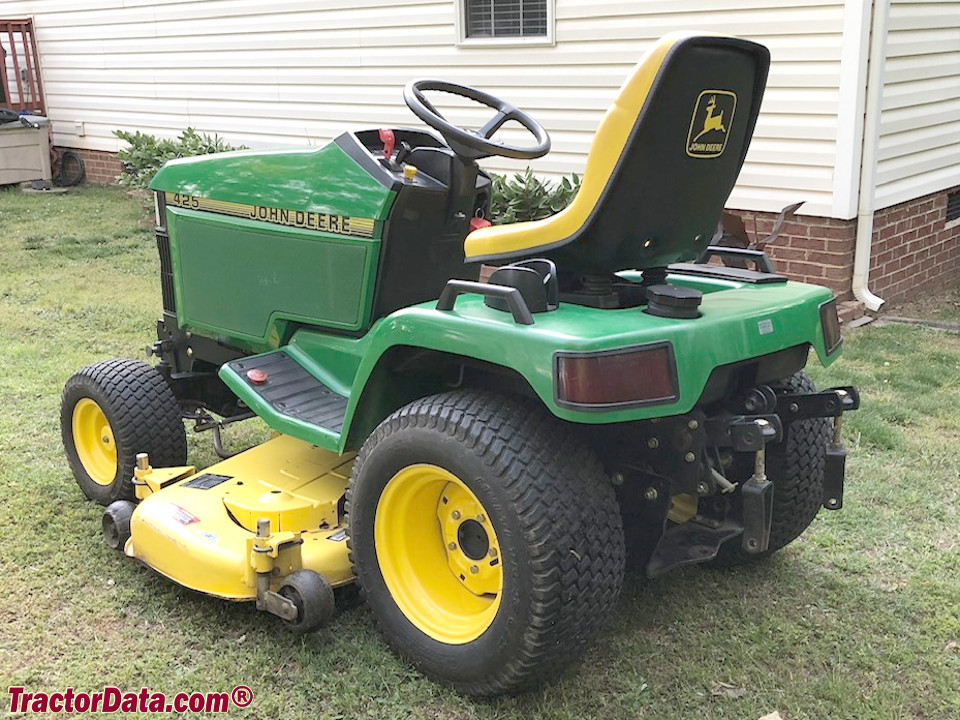

John Deere 425 with mower and three-point hitch.

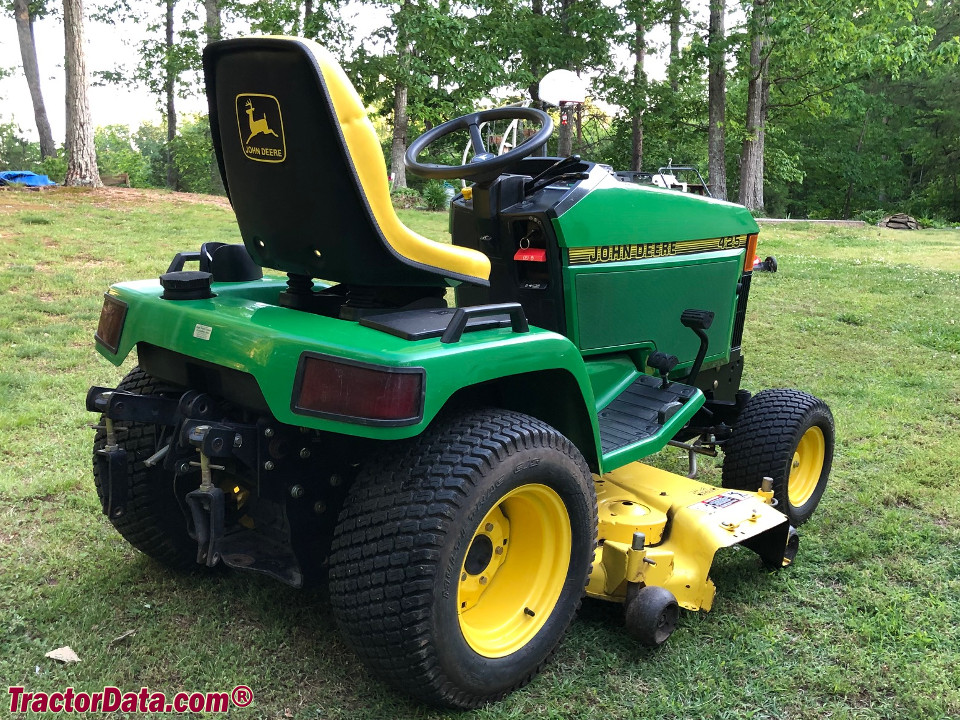

John Deere 425 with mower and three-point hitch.

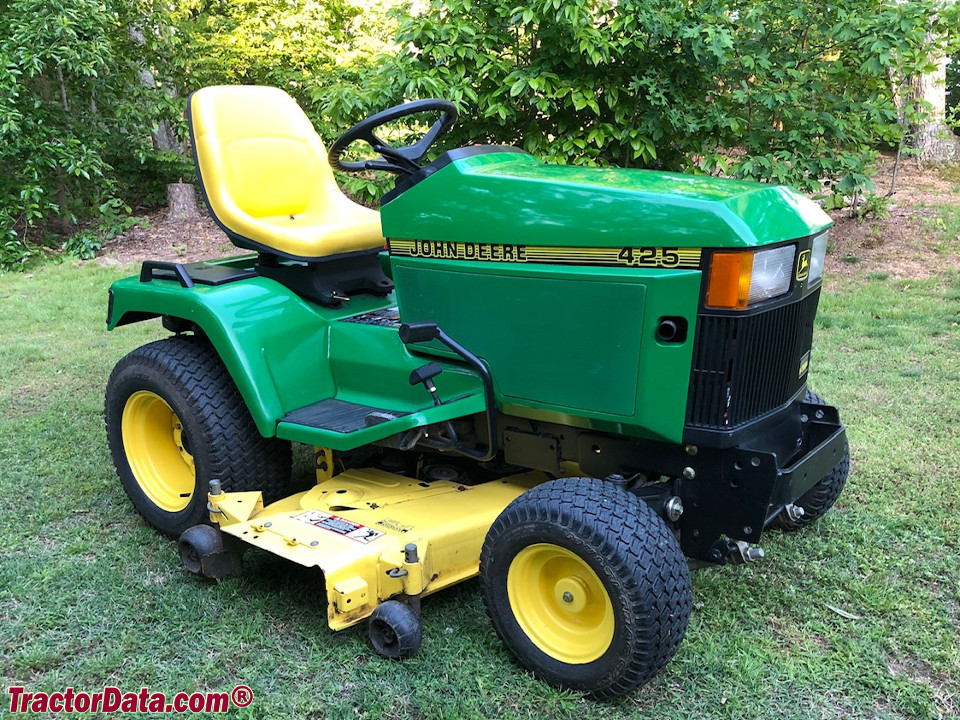

John Deere 425 with mower and three-point hitch.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere 425.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
