John Deere 1580

The John Deere 1580 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 1642 cc 100.2 ci engine. The listed engine power is Diesel (gross): 37.4 hp / 27.9 kW. Transmission: infinite forward and reverse (2-range). Drive type: 4x4 MRWD 4WD. Operating weight: 2120 lbs 961 kg.

Overview

	2015 - 1500 SeriesFront-mount mower
2015 -
1500 Series
Front-mount mower

2015 -
1500 Series
Front-mount mower

Production
Manufacturer	John Deere
Front-mount mower
Built in Fuquay-Varina, North Carolina, USA
Original price was $34,489 in 2021

Variants
1580	ROPS
1585	Cab

John Deere 1580 Engine
37.4HP Yanmar 1642cc 3-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

John Deere 1580 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x4 MRWD 4WD
Differential lock	mechanical front
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Pump flow	6.3 gpm 23.8 lpm

Power Take-off (PTO)
Front PTO	independent
Clutch	wet disc
Front PTO Type	2000

Dimensions & Tires
Wheelbase	48.2 inches 122 cm
Weight	2120 lbs 961 kg
Front tire	26x12-12
Rear tire	20x10.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery CCA	480
Battery volts	12

References
Front Mowers / Wide-Area Mowers published in 2018, by John Deere*
*Publication contains known errors.

Engine

	2015 - 1500 SeriesFront-mount mower
2015 -
1500 Series
Front-mount mower

2015 -
1500 Series
Front-mount mower

Engine Detail — 1642 cc / 100.2 ci Diesel

Manufacturer	Yanmar 3TNV88C
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled horizontal-shaft inline
Displacement	1642 cc 100.2 ci
Bore/Stroke	3.46x3.54 inches 88 x 90 mm
Power (gross)	37.4 hp 27.9 kW
Air cleaner	dry
Rated RPM	3000
Starter	electric
Starter volts	12

Transmission

	2015 - 1500 SeriesFront-mount mower
2015 -
1500 Series
Front-mount mower

2015 -
1500 Series
Front-mount mower

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

	2015 - 1500 SeriesFront-mount mower
2015 -
1500 Series
Front-mount mower

2015 -
1500 Series
Front-mount mower

John Deere 1580 Tires
Lawn/turf front	26x12-12
Lawn/turf rear	20x10.00-10

Dimensions
Wheelbase	48.2 inches 122 cm
Length	86.7 inches 220 cm
Height (ROPS)	83.7 inches 212 cm
Weight	2120 lbs 961 kg
Ground clearance	7 inches 17 cm

Attachments

	2015 - 1500 SeriesFront-mount mower
2015 -
1500 Series
Front-mount mower

2015 -
1500 Series
Front-mount mower

Attachment overview
60" front-mount mower deck
72" front-mount mower deck
62" front-mount mower deck
Snowblower
Blade

Photos

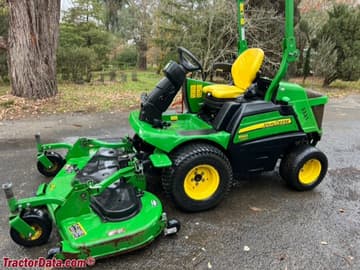

John Deere 1580 front-mount mower.
