John Deere 997
The John Deere 997 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 1330 cc 81.2 ci engine. The listed engine power is Diesel (net): 27 hp / 20.1 kW; Diesel (gross): 31 hp / 23.1 kW. Transmission: Kanzaki DUP 17S. Operating weight: 1774 lbs (60 deck) 804 kg.
Engine Power
Diesel (net): 27 hp / 20.1 kW; Diesel (gross): 31 hp / 23.1 kW
Fuel & Capacities
11.5 gal
43.5 L
Transmission
Kanzaki DUP 17S
Operating Weight
1774 lbs (60 deck)
804 kg
Overview
 | 2005 - 2014
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Zero-turn mower | |
Built in Fuquay-Varina, North Carolina, USA | |
John Deere 997 Engine | |
|---|---|
31HP Yanmar 1330cc 3-cyl diesel | |
Fuel tank | 11.5 gal
43.5 L |
Engine details ...  | |
John Deere 997 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electro-hydraulic |
Mid PTO Type | 2000 |
Engine RPM | 2000@2800 |
Dimensions & Tires | |
|---|---|
Weight | 1774 to 1842 pounds |
Front tire | 15x6-6 |
Rear tire | 26x12-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 40 |
Battery CCA | 490 |
Battery volts | 12 |
References | |
|---|---|
 | |
Commercial Mowing Equipment published in 2006, by John Deere | |
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere | |
ZTrak PRO 900 Series Mowers published in 2010, by John Deere | |
Operator's Manual Mid-Mount Z-Trak 997 (OMTCU29065) published in 2011 | |
Z-Trak Professional Series (DKA2347) published in 2009 | |
ZTrak Mowers published in 2011, by John Deere |
Engine
Engine Detail — 1330 cc / 81.2 ci Diesel
Manufacturer | Yanmar 3TNV82A |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 1330 cc
81.2 ci |
Bore/Stroke | 3.23x3.31 inches
82 x 84 mm |
Power (net) | 27 hp
20.1 kW |
Power (gross) | 31 hp
23.1 kW |
Fuel system | direct injection |
Air cleaner | dry |
Rated RPM | 3000 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Kanzaki DUP 17S
Transmission | Kanzaki DUP 17S |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
John Deere 997 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 26x12-12 |
Dimensions | |
|---|---|
Length | 96 inches (60 deck)
243 cm |
99 inches (72 deck)
251 cm | |
Height (ROPS) | 74.8 inches
189 cm |
Height (Folded ROPS) | 50.4 inches
128 cm |
Weight | 1774 lbs (60 deck)
804 kg |
1842 lbs (72 deck)
835 kg | |
Attachments
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
72" mid-mount mower deck |

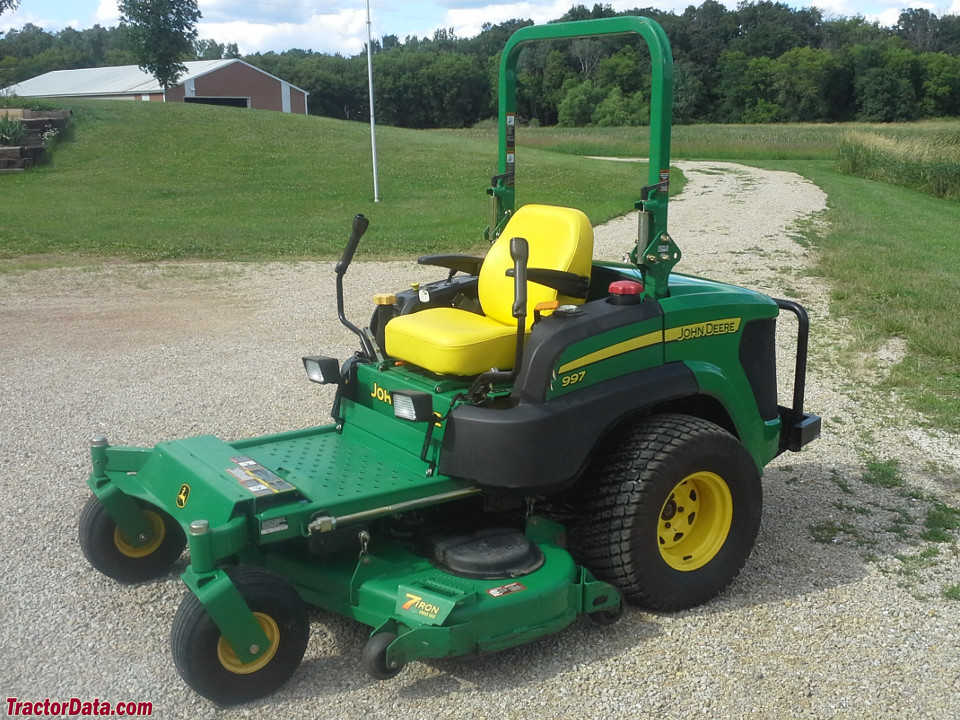

Photos
John Deere 997
John Deere 997
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere 997.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere 997 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere 997.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
Direct Competitor Comparison
Compare John Deere 997 against same-era industry alternatives in the same horsepower class.
Current Model
John Deere Lawn Tractors
John Deere 997
Engine Power:Diesel (net): 27 hp / 20.1 kW; Diesel (gross): 31 hp / 23.1 kW
★ Baseline Reference
