John Deere 1585
The John Deere 1585 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 1642 cc 100.2 ci engine. The rated power output is 37.4 hp 27.9 kW. Transmission: infinite forward and reverse (2-range). Drive type: 4x4 MRWD 4WD. Operating weight: 2593 lbs 1176 kg.
Engine Power
37.4 hp
27.9 kW
Drive & Traction
4x4 MRWD 4WD
Fuel & Capacities
16 gal
60.6 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
2593 lbs
1176 kg
John Deere Lawn Tractors John Deere 1585 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2015 -
1500 SeriesFront-mount mower |
|---|---|
2015 - | |
1500 Series | |
Front-mount mower | |
2015 - | |
|---|---|
1500 Series | |
Front-mount mower |
Production | |
|---|---|
Manufacturer | John Deere |
Front-mount mower | |
Built in Fuquay-Varina, North Carolina, USA | |
Original price was $45,249 in 2021 | |
Variants | |
|---|---|
1580 | ROPS |
1585 | Cab |
John Deere 1585 Engine | |
|---|---|
37.4HP Yanmar 1642cc 3-cyl diesel | |
Fuel tank | 16 gal
60.6 L |
Engine details ...  | |
John Deere 1585 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | 4x4 MRWD 4WD |
Differential lock | mechanical front |
Power steering | |
Wet disc brakes | |
Cab with air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 6.3 gpm
23.8 lpm |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | wet disc |
Front PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.2 inches
122 cm |
Weight | 2593 lbs
1176 kg |
Front tire | 26x12-12 |
Rear tire | 20x10.00-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 95 |
Battery CCA | 480 |
Battery volts | 12 |
References | |
|---|---|
 | |
Front Mowers / Wide-Area Mowers published in 2018, by John Deere* | |
*Publication contains known errors. |
Engine
| 2015 -
1500 SeriesFront-mount mower |
|---|---|
2015 - | |
1500 Series | |
Front-mount mower | |
2015 - | |
|---|---|
1500 Series | |
Front-mount mower |
Engine Detail — 1642 cc / 100.2 ci Diesel
Manufacturer | Yanmar 3TNV88C |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 1642 cc
100.2 ci |
Bore/Stroke | 3.46x3.54 inches
88 x 90 mm |
Power (gross) | 37.4 hp
27.9 kW |
Air cleaner | dry |
Rated RPM | 3000 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2015 -
1500 SeriesFront-mount mower |
|---|---|
2015 - | |
1500 Series | |
Front-mount mower | |
2015 - | |
|---|---|
1500 Series | |
Front-mount mower |
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
| 2015 -
1500 SeriesFront-mount mower |
|---|---|
2015 - | |
1500 Series | |
Front-mount mower | |
2015 - | |
|---|---|
1500 Series | |
Front-mount mower |
John Deere 1585 Tires | |
|---|---|
Lawn/turf front | 26x12-12 |
Lawn/turf rear | 20x10.00-10 |
Dimensions | |
|---|---|
Wheelbase | 48.2 inches
122 cm |
Length | 86.7 inches
220 cm |
Height (cab) | 85.2 inches
216 cm |
Weight | 2593 lbs
1176 kg |
Ground clearance | 7 inches
17 cm |
Attachments
| 2015 -
1500 SeriesFront-mount mower |
|---|---|
2015 - | |
1500 Series | |
Front-mount mower | |
2015 - | |
|---|---|
1500 Series | |
Front-mount mower |
Attachment overview | |
|---|---|
60" front-mount mower deck | |
72" front-mount mower deck | |
62" front-mount mower deck | |
Snowblower | |
Blade |
Photos

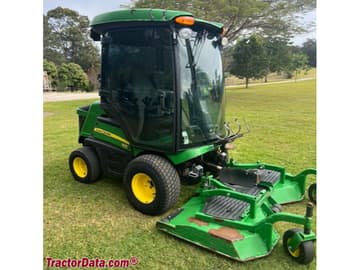

John Deere 1585 front-mount mower.
