John Deere 190C

The John Deere 190C is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Tuff Turq HD K62. Operating weight: 579 lbs 262 kg.

Overview

	2006 Lawn tractor
2006
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price was $2,999 in 2006

John Deere 190C Engine
25HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

John Deere 190C Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	electric

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	579 lbs 262 kg
Front tire	16x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	regulated circuit
Charging amps	16
Battery volts	12
Battery Group	U1

References
Operator's Manual 100 Series (OMGX21821) published in 2006

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	724 cc 44.2 ci
Bore/Stroke	3.15x2.64 inches 80 x 67 mm
Power	25 hp 18.6 kW
Air cleaner	paper with foam
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.225 inches 5.715 mm
Intake valve clearance	0.005 inches 0.127 mm
Exhaust valve clearance	0.005 inches 0.127 mm
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — Tuff Turq HD K62

Transmission	Tuff Turq HD K62
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

John Deere 190C Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	48.9 inches 124 cm
Length	69 inches 175 cm
Width	67.7 inches 171 cm
Height	46 inches 116 cm
Weight	579 lbs 262 kg

Attachments

54" Mower deck
Type	mid-mount John Deere
	manual lift
Cutting width	54 inches 137 cm

Photos

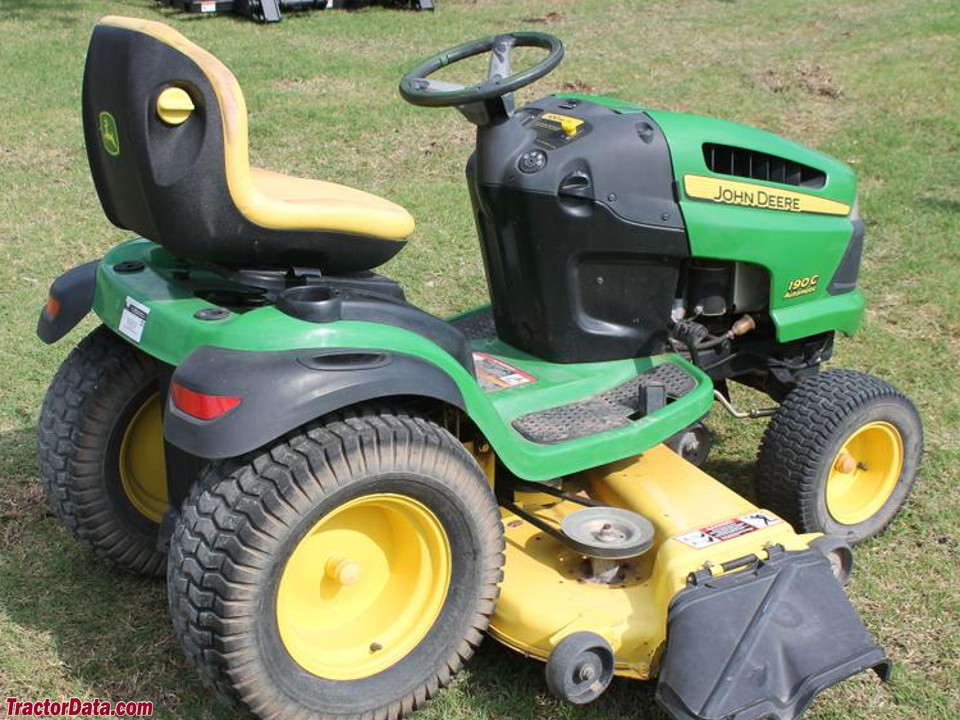

John Deere 190C

John Deere 190C
