John Deere 330

The John Deere 330 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 658 cc 40.2 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Sundstrand Series 15 Model 90. Operating weight: 900 lbs 408 kg.

Overview

	1986 300 SeriesGarden tractor
1986
300 Series
Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA

John Deere 330 Engine
16HP Yanmar 658cc 3-cyl diesel
Engine details ...

John Deere 330 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Integral mechanical shoe brakes
Open operator station.

Capacity
Fuel	4.5 gal 17.0 L
Hydraulic system	1.25 gal 4.7 L

Hydraulics
Capacity	1.25 gal 4.7 L
Valves	1

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electric
Rear PTO Type	2000
Front PTO	independent
Clutch	electric
Front PTO Type	3450

Dimensions & Tires
Wheelbase	46 inches 116 cm
Weight	900 lbs 408 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	20
Battery volts	12

References
Operator's Manual 330 (OM-M88939) published in 1985
Lawn & Garden Tractors published in 1986, by John Deere
Technical Manual 322, 330, 332 and 430 Lawn and Garden Tractors. (TM1591) published in 1995
Operator's Manual 38-Inch Mid-Mount Rotary Mower (200 and 300 Series) (OMM71721) published in 1986
Operator's Manual 49 Snowthrower (OMM89078) published in 1986

Engine

Engine Detail — 658 cc / 40.2 ci Diesel

Manufacturer	Yanmar 3TN66UJ
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled horizontal-shaft inline
Displacement	658 cc 40.2 ci
Bore/Stroke	2.60x2.62 inches 66 x 67 mm
Power (gross)	16 hp 11.9 kW
Air cleaner	dry
Compression	22.4
Idle RPM	1300-3450
Oil capacity	2.5 qts 2.4 L
Coolant capacity	2.9 qts 2.7 L

Transmission

Transmission — Sundstrand Series 15 Model 90

Transmission	Sundstrand Series 15 Model 90
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	6.5 qts 6.2 L

Dimensions

John Deere 330 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	46 inches 116 cm
Length	69.5 inches 176 cm
Width	43.3 inches 109 cm
Height	44.5 inches 113 cm
Weight	900 lbs 408 kg
Front tread	32 inches 81 cm
Rear tread	30.5/32.8 inches 77/83 cm

Attachments

Attachment overview
38" mid-mount mower deck
46" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

John Deere 330

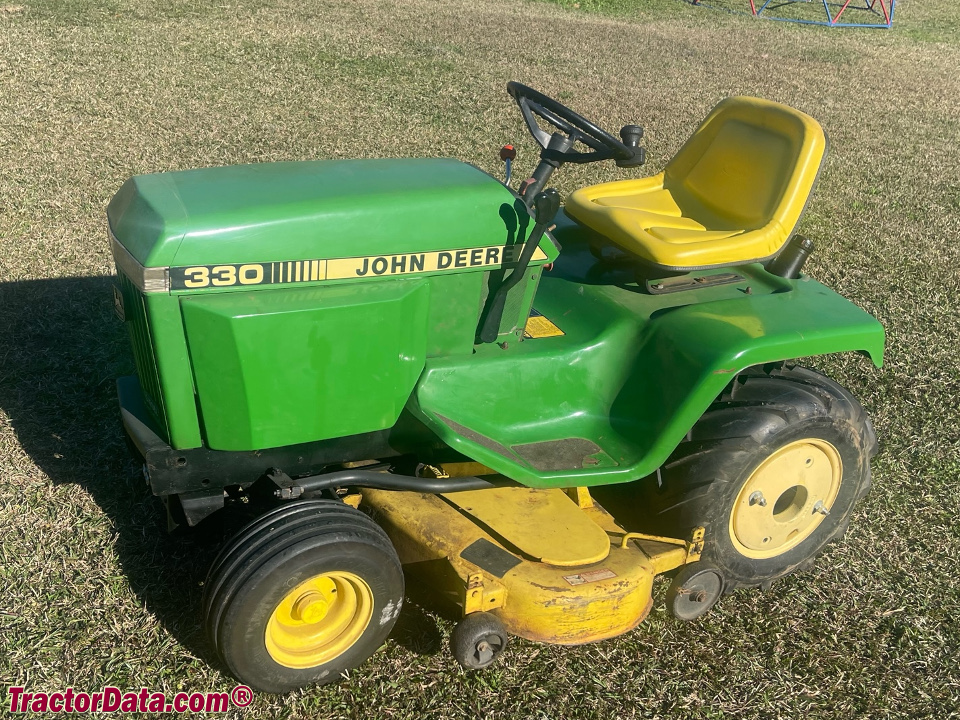

John Deere 330 lawn and garden tractor.

John Deere 330 lawn and garden tractor.

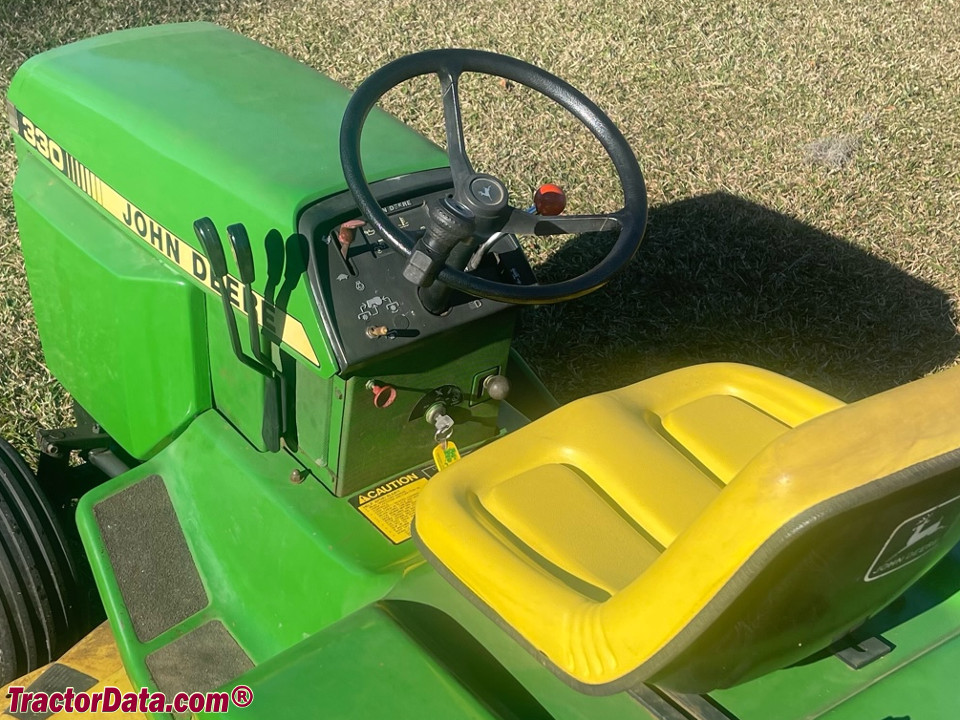

John Deere 330 operator station and controls.
