John Deere 757
The John Deere 757 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 675 cc 41.2 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Parker Ross TF15. Operating weight: 1130 lbs 512 kg.
Engine Power
25 hp
18.6 kW
Fuel & Capacities
9.5 gal
36.0 L
Transmission
Parker Ross TF15
Operating Weight
1130 lbs
512 kg
John Deere Lawn Tractors John Deere 757 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2004
700 SeriesZero-turn mower |
|---|---|
2002 - 2004 | |
700 Series | |
Zero-turn mower | |
2002 - 2004 | |
|---|---|
700 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | John Deere |
Zero-turn mower | |
Built in Fuquay-Varina, North Carolina, USA | |
John Deere 757 Engine | |
|---|---|
25HP Kawasaki 675cc 2-cyl gasoline | |
Fuel tank | 9.5 gal
36.0 L |
Engine details ...  | |
John Deere 757 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Weight | 1130 lbs
512 kg |
Front tire | 13x5.00-6 |
Rear tire | 24x12-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 20 |
Battery CCA | 340 |
Battery volts | 12 |
References | |
|---|---|
 | |
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere | |
7-Iron Commercial Mowing Equipment published in 2002, by John Deere |
Engine
| 2002 - 2004
700 SeriesZero-turn mower |
|---|---|
2002 - 2004 | |
700 Series | |
Zero-turn mower | |
2002 - 2004 | |
|---|---|
700 Series | |
Zero-turn mower |
Engine Detail — 675 cc / 41.2 ci Gasoline
Manufacturer | Kawasaki FD751D |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 675 cc
41.2 ci |
Bore/Stroke | 2.96x2.99 inches
75 x 76 mm |
Power | 25 hp
18.6 kW |
Air cleaner | dry |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2002 - 2004
700 SeriesZero-turn mower |
|---|---|
2002 - 2004 | |
700 Series | |
Zero-turn mower | |
2002 - 2004 | |
|---|---|
700 Series | |
Zero-turn mower |
Transmission — Parker Ross TF15
Transmission | Parker Ross TF15 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2002 - 2004
700 SeriesZero-turn mower |
|---|---|
2002 - 2004 | |
700 Series | |
Zero-turn mower | |
2002 - 2004 | |
|---|---|
700 Series | |
Zero-turn mower |
John Deere 757 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 24x12-12 |
Lawn/turf front | 23x10.5-12 |
Dimensions | |
|---|---|
Length | 79 inches
200 cm |
Height | 44 inches
111 cm |
Weight | 1130 lbs
512 kg |
Attachments
| 2002 - 2004
700 SeriesZero-turn mower |
|---|---|
2002 - 2004 | |
700 Series | |
Zero-turn mower | |
2002 - 2004 | |
|---|---|
700 Series | |
Zero-turn mower |
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
60" mid-mount mower deck |
Photos

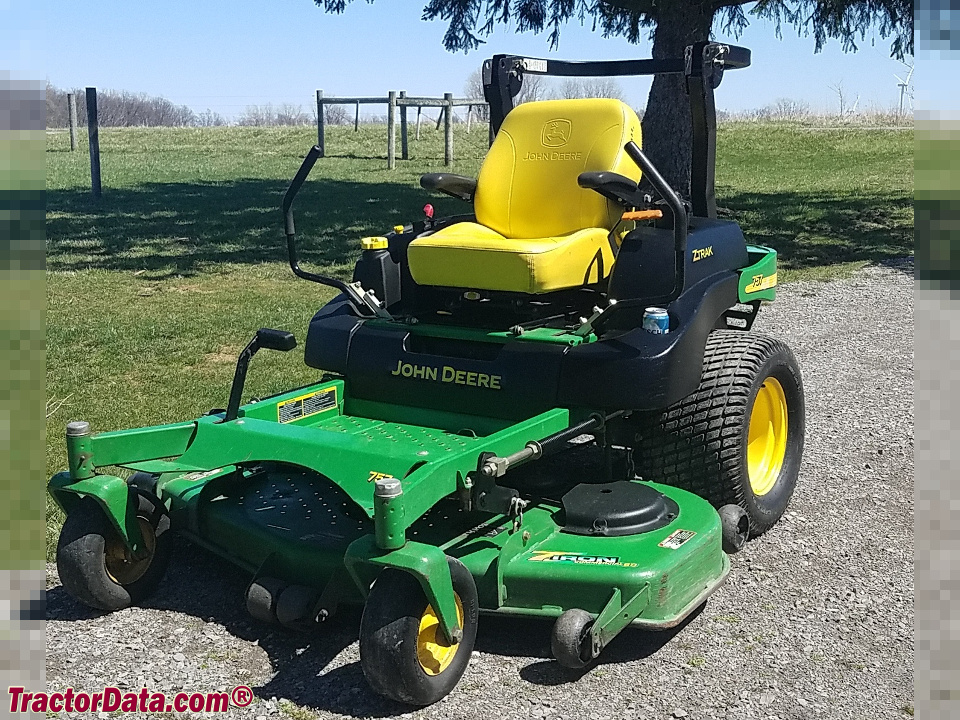

John Deere 757
