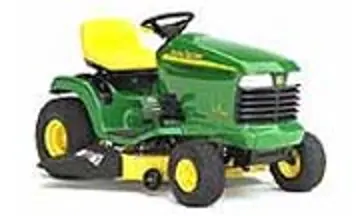

John Deere LT150

The John Deere LT150 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 426 cc 26 ci engine. The listed engine power is Gasoline (gross): 15 hp / 11.2 kW; Gasoline (gross): 15 hp / 11.2 kW. Transmission: Tuff Torq K46. Operating weight: 395 lbs 179 kg.

Overview

	2002 - 2005 LT SeriesLawn tractor
2002 - 2005
LT Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price was $2,559 in 2005

Variants
LT150G	gear drive
LT150H	hydrostatic

John Deere LT150 Engine
15HP Kohler 426cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical disc brakes
Open operator station. Foam seat with 14-inches of travel.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	395 lbs 179 kg
Front tire	15x6-6
Rear tire	20x10-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	160
Battery volts	12

References
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Lawn and Garden Product Information Handbook published in 2003, by John Deere
Lawn and Garden Product Information Handbook published in 2004, by John Deere
Lawn and Garden Product Information Handbook published in 2005, by John Deere
Premium Lawn and Garden Tractors published in 2004, by John Deere
LT Series Lawn Tractors published in 2002, by John Deere
Operator's Manual LT150, LT160 Lawn Tractors (OMM145684) published in 2001

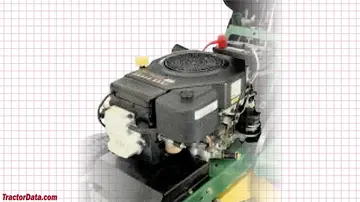

Engine

Engine Detail — 426 cc / 26 ci Gasoline

Manufacturer	Kohler Command CV426S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Original engine. The CV426S was used during the 2002 model year.
Displacement	426 cc 26 ci
Bore/Stroke	3.54x2.64 inches 90 x 67 mm
Power (gross)	15 hp 11.2 kW
Starter volts	12
Sparkplug gap	0.040 inches 1.016 mm
Oil capacity	2 qts 1.9 L
Oil change	100 h

Engine Detail — 426 cc / 26 ci Gasoline

Manufacturer	Kohler CV15S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
The CV-15S was introduced on the Deere LT150 in the 2003 model year, tractor serial number 35001.
Displacement	426 cc 26 ci
Power (gross)	15 hp 11.2 kW
Air cleaner	paper and foam
Idle RPM	1650-3350
Oil change	100 h

John Deere LT150 Engine

Transmission

Transmission options
5-speed gear
hydrostatic

Transmission — Dana 4360

Transmission	Dana 4360
Type	belt-driven gear
Gears	5 forward and 1 reverse
Oil change	sealed unit, owner service is not recommended
The 5-speed transmission was built during the 2002 model year only.

Transmission — Tuff Torq K46

Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	sealed unit, owner service is not recommended

Dimensions

John Deere LT150 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	20x10-8

Dimensions
Wheelbase	48 inches 121 cm
Length	67.9 inches 172 cm
Width	36.2 inches 91 cm
Height	41 inches 104 cm
Shipping weight	395 lbs (tractor only) 179 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount John Deere
	2-blade with manual lift
Cutting width	38 inches 96 cm
Overall width	52 inches 132 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

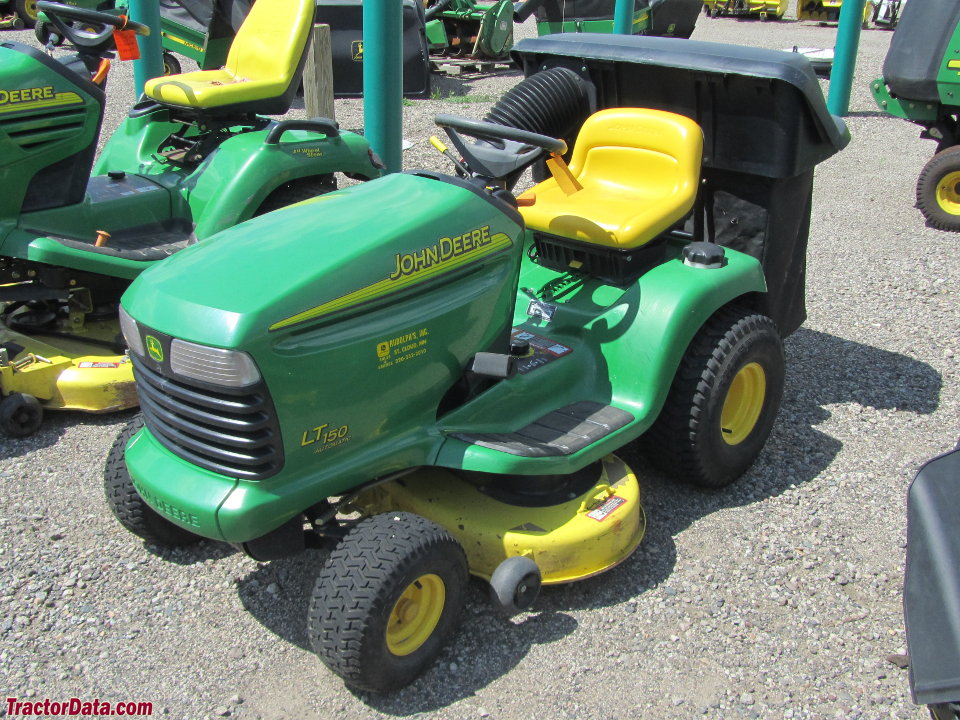

John Deere L150 with bagger.

John Deere L150 with bagger.
