John Deere LT155

The John Deere LT155 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 426 cc 26 ci engine. The listed engine power is Gasoline (listed): 15 hp / 11.2 kW. Transmission: Tuff-Torq K51. Operating weight: 388 to 475 pounds.

Engine Power
Gasoline (listed): 15 hp / 11.2 kW
Fuel & Capacities
2 gal 7.6 L
Transmission
Tuff-Torq K51
Operating Weight
388 to 475 pounds

Overview

John Deere LT155 tractor photo
1998 - 2001 LT SeriesLawn tractor LT Series Lawn tractor
Production
Manufacturer
John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price
$2,499 (1997 38 )
$2,699 (1997 42 )
John Deere LT155 Engine
15HP Kohler 426cc 1-cyl gasoline
Fuel tank
2 gal 7.6 L
Engine details ...
John Deere LT155 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Wheelbase
46.3 inches 117 cm
Weight
388 to 475 pounds
Front tire
15x6.00-6
Rear tire
20x10.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery CCA
160
Battery volts
12
References
LT155 references literature
Lawn and Garden Product Information Handbook published in 1998, by John Deere
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
LT Series Lawn Tractors published in 1998, by John Deere
Operator's Manual LT133, LT155 and LT166 (OMM142698) published in 2000
Lawn & Grounds Care Sales Manual published in 1997, by John Deere*
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
*Publication contains known errors.

Engine

Engine Detail — 426 cc / 26 ci Gasoline

Manufacturer
Kohler CV15S
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
426 cc 26 ci
Bore/Stroke
3.55x2.64 inches 90 x 67 mm
Power
15 hp 11.2 kW
Starter
electric
Starter volts
12
Sparkplug gap
0.040 inches 1.016 mm
Oil capacity
1.9 qts 1.8 L

Transmission

Transmission — Tuff-Torq K51

Transmission
Tuff-Torq K51
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil change
sealed unit, owner service is not recommended
Hydrostatic transmission with two right-side foot pedals and right-side brake. Free-wheeling lever at rear of tractor.
With 20x10.00-8 rear tires.
LT155 K51 belt-driven hydrostatic speeds

Dimensions

John Deere LT155 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
20x10.00-8
Dimensions
Wheelbase
46.3 inches 117 cm
Length
67.91 inches 172 cm
Width
36 inches 91 cm
Height
40.6 inches 103 cm
John Deere LT155 Weight
470 lbs (with 38" deck) 213 kg
475 lbs (with 42" deck) 215 kg
Shipping
388 lbs 175 kg

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
Snowblower
Blade

Photos

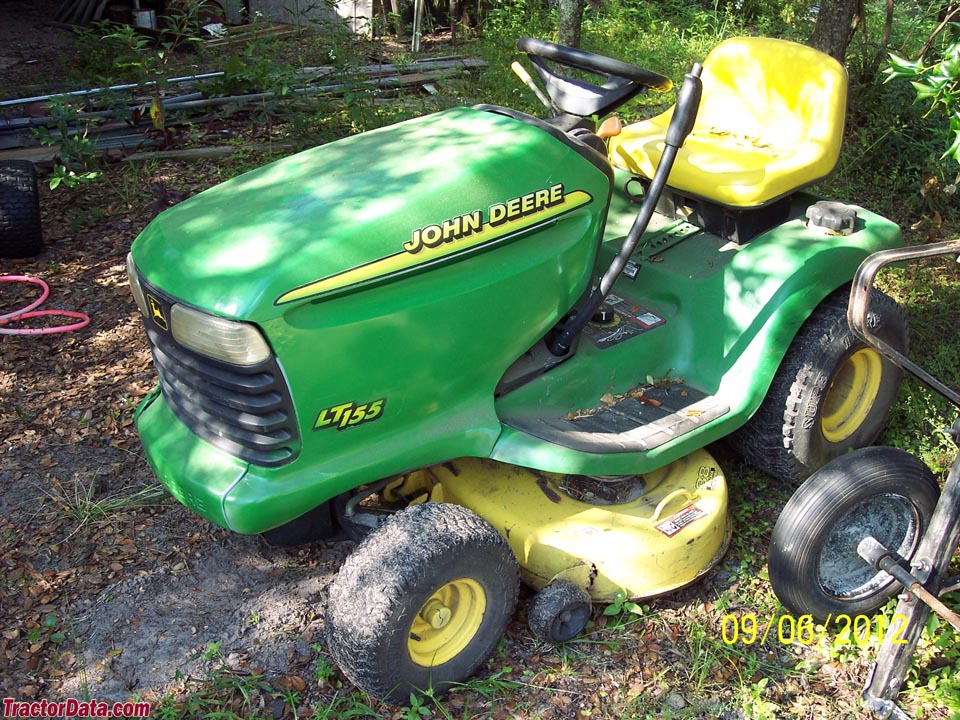

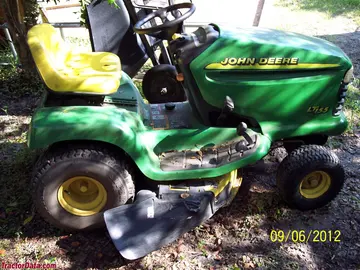

John Deere LT155

John Deere LT155

John Deere LT155

John Deere LT155

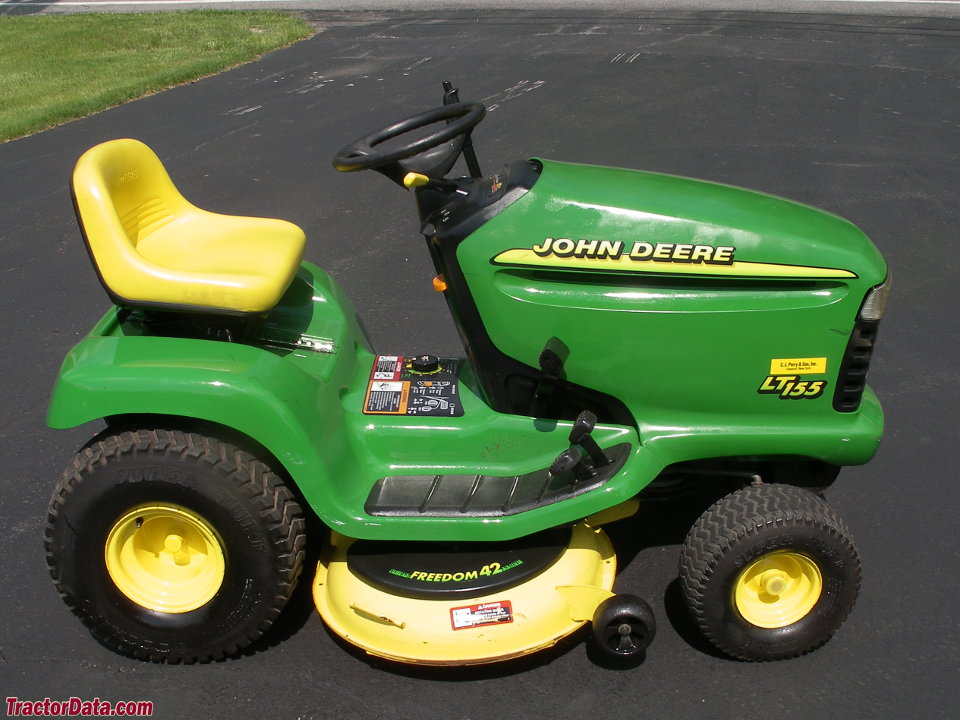

John Deere LT155 with Freedom 42 mower deck.

John Deere LT155 with Freedom 42 mower deck.

Recommended Implements & Sizing Guide

Engineering recommendations for John Deere Lawn Tractors John Deere LT155 based on its 15 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere LT155.

Estimated Continuous Field Runtime: 2.6 hrs

Approximately 2.6 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere Lawn Tractors John Deere LT155 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere LT155.

Converted Equivalents:

Horsepower (HP)15 hp
Kilowatts (kW)11.2 kW
Metric Horsepower (PS / CV)15.2 PS

Direct Competitor Comparison

Compare John Deere LT155 against same-era industry alternatives in the same horsepower class.

Current Model
John Deere Lawn Tractors

John Deere LT155

Engine Power:Gasoline (listed): 15 hp / 11.2 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota B1402

Engine Power:13.8
Production Years:1981 - 1985
International HarvesterMarket Competitor

International Harvester D-214

Engine Power:14
Production Years:1958 - 1962
IsekiMarket Competitor

Iseki TU135F

Engine Power:13.5
Production Years:1986 - 1990
HinomotoMarket Competitor

Hinomoto E14

Engine Power:13.8
Production Years:1977 - 1979
