John Deere LX255

The John Deere LX255 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 426 cc 26 ci engine. The listed engine power is Gasoline (listed): 15 hp / 11.2 kW. Transmission: Tuff Torq K62. Operating weight: 483 lbs 219 kg.

Engine Power
Gasoline (listed): 15 hp / 11.2 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
Tuff Torq K62
Operating Weight
483 lbs 219 kg

Overview

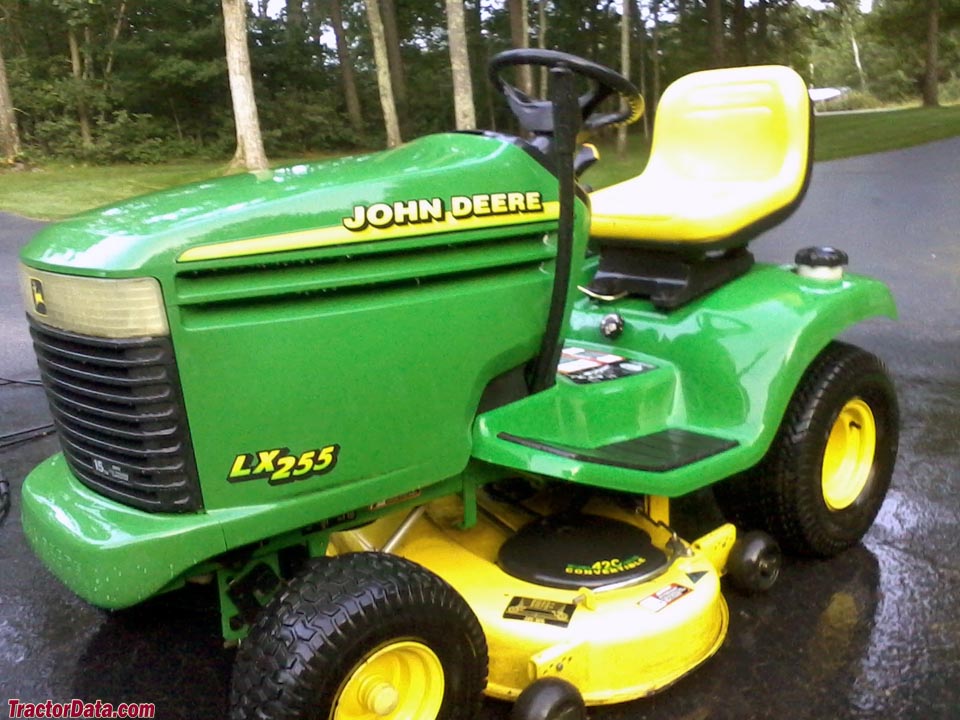

John Deere LX255 tractor photo
1999 - 2001 LX200 SeriesLawn tractor LX200 Series Lawn tractor
Production
Manufacturer
John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price was $3,649 in 1999
John Deere LX255 Engine
15HP Kohler 426cc 1-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
John Deere LX255 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical wet disc brakes
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
47.5 inches 120 cm
Weight
483 lbs 219 kg
Front tire
15x6.00-6
Rear tire
20x10.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
13
Battery CCA
500
Battery volts
12
Battery Group
51
References
LX255 references literature
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
LX Series Lawn Tractors published in 2000, by John Deere
Operator's Manual LX255, LX277, LX277AWS, LX279, LX288 (OMM142612) published in 1998
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere

Engine

Engine Detail — 426 cc / 26 ci Gasoline

Manufacturer
Kohler CV15S-41571
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
426 cc 26 ci
Bore/Stroke
3.55x2.64 inches 90 x 67 mm
Power
15 hp 11.2 kW
Air cleaner
paper with foam pre-cleaner
Compression
8.5:1
Torque
25.3 lb-ft 34.3 Nm
Torque RPM
2400
Starter volts
12
Sparkplug gap
0.040 inches 1.016 mm
Oil capacity
1.9 qts 1.8 L

Transmission

Transmission — Tuff Torq K62

Transmission
Tuff Torq K62
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil change
fill as needed
LX255 K62 belt-driven hydrostatic speeds

Dimensions

John Deere LX255 Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
20x10.00-8
Dimensions
Wheelbase
47.5 inches 120 cm
Length
69.4 inches 176 cm
Width
36.8 inches 93 cm
Height
43.6 inches 110 cm
Shipping weight
483 lbs 219 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Advertised attachments for the LX200 series included two rear baggers: 7-bushel for the 42-inch deck and a 2-bag Power Flow for the 48-inch deck. Forty inch aerators, tow-behind thatcherator, and 38 or 48 inch front thatchers. Sprayers in 6, 15, and 25-gallon sizes. The No. 7 utility cart was also listed as compatible.

Photos

John Deere LX255

John Deere LX255

Recommended Implements & Sizing Guide

Engineering recommendations for John Deere Lawn Tractors John Deere LX255 based on its 15 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere LX255.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere Lawn Tractors John Deere LX255 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere LX255.

Converted Equivalents:

Horsepower (HP)15 hp
Kilowatts (kW)11.2 kW
Metric Horsepower (PS / CV)15.2 PS

Direct Competitor Comparison

Compare John Deere LX255 against same-era industry alternatives in the same horsepower class.

Current Model
John Deere Lawn Tractors

John Deere LX255

Engine Power:Gasoline (listed): 15 hp / 11.2 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota B1402

Engine Power:13.8
Production Years:1981 - 1985
International HarvesterMarket Competitor

International Harvester D-214

Engine Power:14
Production Years:1958 - 1962
IsekiMarket Competitor

Iseki TU135F

Engine Power:13.5
Production Years:1986 - 1990
HinomotoMarket Competitor

Hinomoto E14

Engine Power:13.8
Production Years:1977 - 1979
