John Deere R92

The John Deere R92 is a tractor produced by John Deere Lawn Tractors. The listed engine power is Gasoline (listed): 11 hp / 8.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 300 lbs 136 kg.

Engine Power
Gasoline (listed): 11 hp / 8.2 kW
Fuel & Capacities
1.25 gal 4.7 L
Transmission
5 forward and 1 reverse
Operating Weight
300 lbs 136 kg

Overview

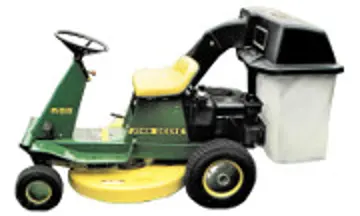

John Deere R92 tractor photo
1985 - 1986 Riding lawn mower
Production
Manufacturer
John Deere
Riding lawn mower
John Deere R92 Engine
11HP Briggs & Stratton 1-cyl gasoline
Fuel tank
1.25 gal 4.7 L
Engine details ...
John Deere R92 Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual
Mechanical band brakes
Open operator station
Power Take-off (PTO)
Mid PTO
independent
Clutch
mechanical
Dimensions & Tires
Wheelbase
42 inches 106 cm
Weight
300 lbs 136 kg
Front tire
11x4.00-5
Rear tire
16x6.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
R92 references literature
Riding Mowers & Lawn Tractors published in 1985, by John Deere
John Deere Lawn Tractors and Riding Mowers published in 1986
Operator's Manual R70, R72, R92, S82, and S92 Riding Mowers (OM-M88160) published in 1985
Grounds Care Equipment Purchasing Guide published in 1983, by John Deere

Engine

Engine Detail — Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Power
11 hp 8.2 kW
Air cleaner
dry element
Starter
electric
Starter volts
12
Oil capacity
1.125 qts 1.1 L
Oil change
25 h

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
5 forward and 1 reverse
R92  belt-driven gear speeds

Dimensions

John Deere R92 Tires
Lawn/turf front
11x4.00-5
Lawn/turf rear
16x6.50-8
Dimensions
Wheelbase
42 inches 106 cm
Length
56.8 inches 144 cm
Height
38 inches 96 cm
Weight
300 lbs 136 kg

Attachments

30" Mower deck
Type
mid-mount John Deere
1-blade with manual lift
Cutting width
30 inches 76 cm
Overall width
41 inches 104 cm
Cut height
1 to 3.5 inch 2 to 8 cm

Photos

John Deere R92 tractor photo

John Deere R92 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere R92.

Estimated Continuous Field Runtime: 2.3 hrs

Approximately 2.3 hours of continuous field operation at ~75% rated power on a full tank (1.3 gal / 4.7 L).

Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere Lawn Tractors John Deere R92 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere R92.

Converted Equivalents:

Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
