John Deere X530

The John Deere X530 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 675 cc 41.2 ci engine. The listed engine power is Gasoline (gross): 25 hp / 18.6 kW. Transmission: Tuff Torq K72A. Operating weight: 153 lbs 69 kg.

Engine Power
Gasoline (gross): 25 hp / 18.6 kW
Fuel & Capacities
5 gal 18.9 L
Transmission
Tuff Torq K72A
Operating Weight
153 lbs 69 kg

Overview

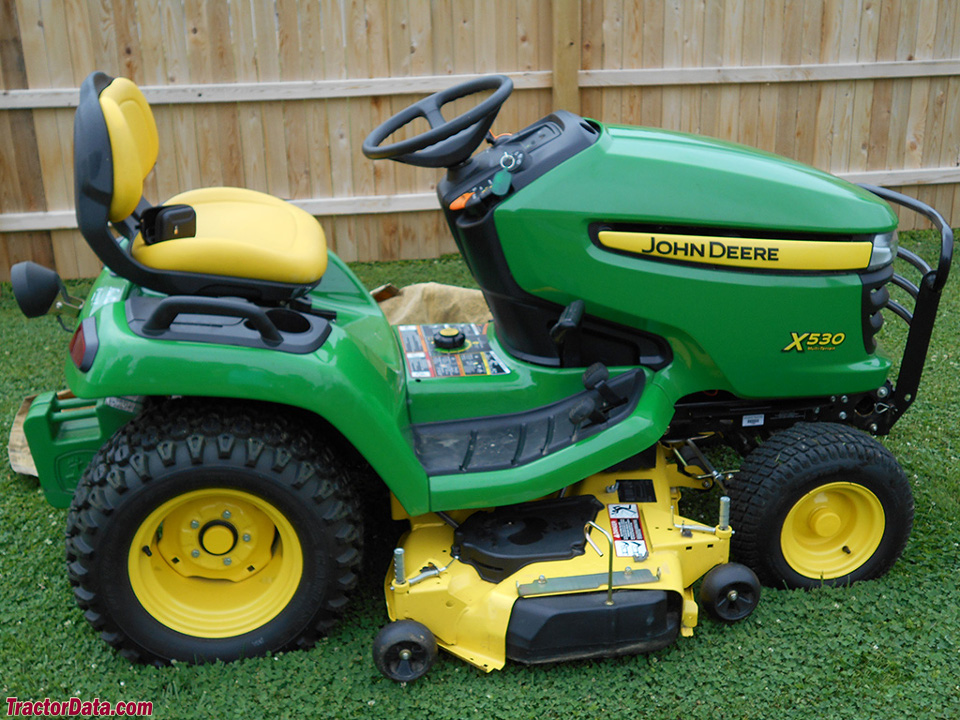

John Deere X530 tractor photo
2010 - 2015 Model year 2010-20112011-2015 Select X500 SeriesGarden tractor Select X500 Series Garden tractor
Production
Manufacturer
John Deere
Garden tractor
Original price was $6,799 in 2009
Variants
X530
two-wheel steer
X534
four-wheel steer
John Deere X530 Engine
25HP Kawasaki 675cc 2-cyl gasoline
Fuel tank
5 gal 18.9 L
Engine details ...
John Deere X530 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Differential lock
foot-activated standard
Steering
hydraulic power
Wet disc brakes
Open operator station with 15-inch seat and 7-inch adjustment. Cupholder, toolbox, and 12-volt outlet standard.
Tractor hitch
Type
sleeve hitch OptOptional
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
51.2 inches 130 cm
Weight
850 lbs 385 kg
Front tire
16x6.5-8
Rear tire
24x12-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
500
Battery volts
12
References
X530 references literature
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere

Engine

Engine Detail — 675 cc / 41.2 ci Gasoline

Manufacturer
Kawasaki FH721V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled
Displacement
675 cc 41.2 ci
Bore/Stroke
2.96x2.99 inches 75 x 76 mm
Power (gross)
25 hp 18.6 kW
Fuel system
carburetor
Starter
electric
Starter volts
12

Transmission

Transmission — Tuff Torq K72A

Transmission
Tuff Torq K72A
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil capacity
5.6 qts 5.3 L
Hydrostatic transmission operated with two foot pedals and dash-mounted cruise control.
X530 K72A belt-driven hydrostatic speeds

Dimensions

John Deere X530 Tires
Lawn/turf front
16x6.5-8
Lawn/turf rear
24x12-12
Dimensions
Wheelbase
51.2 inches 130 cm
Length
79 inches 200 cm
Width
41 inches 104 cm
Height
48 inches 121 cm
Weight
850 lbs (with mower) 385 kg

Attachments

Attachment overview
54" mid-mount mower deck
Snowblower
Blade
The John Deere X530 was compatible with a 30-inch mechanical-drive tiller.
54" Mower deck
Type
mid-mount John Deere 54X
3-blade with hydraulic lift
Cutting width
54 inches 137 cm
Belt
M154897 (drive)
M154960 (deck)
Weight
153 lbs 69 kg
Overall width
64.5 inches 163 cm
Cut height
1 to 4 inch 2 to 10 cm
Cut positions
13

Photos

John Deere X530

John Deere X530

Recommended Implements & Sizing Guide

Engineering recommendations for John Deere Lawn Tractors John Deere X530 based on its 25 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere X530.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere Lawn Tractors John Deere X530 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere X530.

Converted Equivalents:

Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS

Direct Competitor Comparison

Compare John Deere X530 against same-era industry alternatives in the same horsepower class.

Current Model
John Deere Lawn Tractors

John Deere X530

Engine Power:Gasoline (gross): 25 hp / 18.6 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1523

Engine Power:22.5
Production Years:2005 - 2010
KubotaMarket Competitor

Kubota B9200

Engine Power:22.5
Production Years:1986 - 1990
ChallengerMarket Competitor

Challenger MT225B

Engine Power:22.5
Production Years:2005 - 2008
AGCOMarket Competitor

AGCO ST22A

Engine Power:22.5
Production Years:2003 - 2008
