John Deere X534

The John Deere X534 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 675 cc 41.2 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Tuff Torq K72C. Operating weight: 756 lbs 342 kg.

Overview

	2006 - 2015 Model year 2006-20102011-2015 Select X500 SeriesGarden tractor
2006 - 2015
Model year 2006-20102011-2015
Select X500 Series
Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA

Variants
X530	two-wheel steer
X534	four-wheel steer

John Deere X534 Engine
25HP Kawasaki 675cc 2-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

John Deere X534 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Steering	power four-wheel
Open operator station with 16-inch seat and 7-inch adjustment. Cupholder, toolbox, and 12-volt outlet standard. Tilt steering wheel.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	51.2 inches 130 cm
Weight	756 lbs 342 kg
Front tire	16x6.5-8
Rear tire	23x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	500
Battery volts	12

References
Select Series Tractors published in 2007, by John Deere
Select Series Tractors published in 2009, by John Deere
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere
Operator's Manual X500 Series Tractors (OMM153412) published in 2005
Operator's Manual X500 Series Tractors (OMM155821) published in 2006
Operator's Manual X500 Series Tractors (OMM157372) published in 2008

Engine

Engine Detail — 675 cc / 41.2 ci Gasoline

Manufacturer	Kawasaki FH721V
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	675 cc 41.2 ci
Bore/Stroke	2.96x2.99 inches 75 x 76 mm
Power (gross)	25 hp 18.6 kW
Fuel system	carburetor
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Intake valve clearance	0.006 inches (cold) 0.152 mm
Exhaust valve clearance	0.006 inches (cold) 0.152 mm
Oil capacity	2.1 qts 2.0 L

Transmission

Transmission — Tuff Torq K72C

Transmission	Tuff Torq K72C
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.6 qts 5.3 L
Hydrostatic transmission operated with two foot pedals and dash-mounted cruise control.

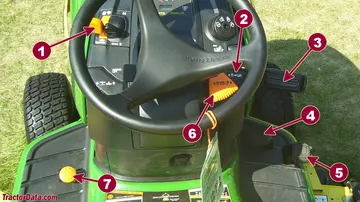

X534 Transmission Controls
1	Throttle
2	Cruise control
3	Brake
4	Forward
5	Reverse
6	Parking brake
7	Differential lock

Dimensions

John Deere X534 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x9.5-12

Dimensions
Wheelbase	51.2 inches 130 cm
Length	79 inches 200 cm
Width	45 inches 114 cm
Height	48 inches 121 cm
Operating weight	756 lbs*Weight of tractor only. 342 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Right-side profile of the Deere X534.

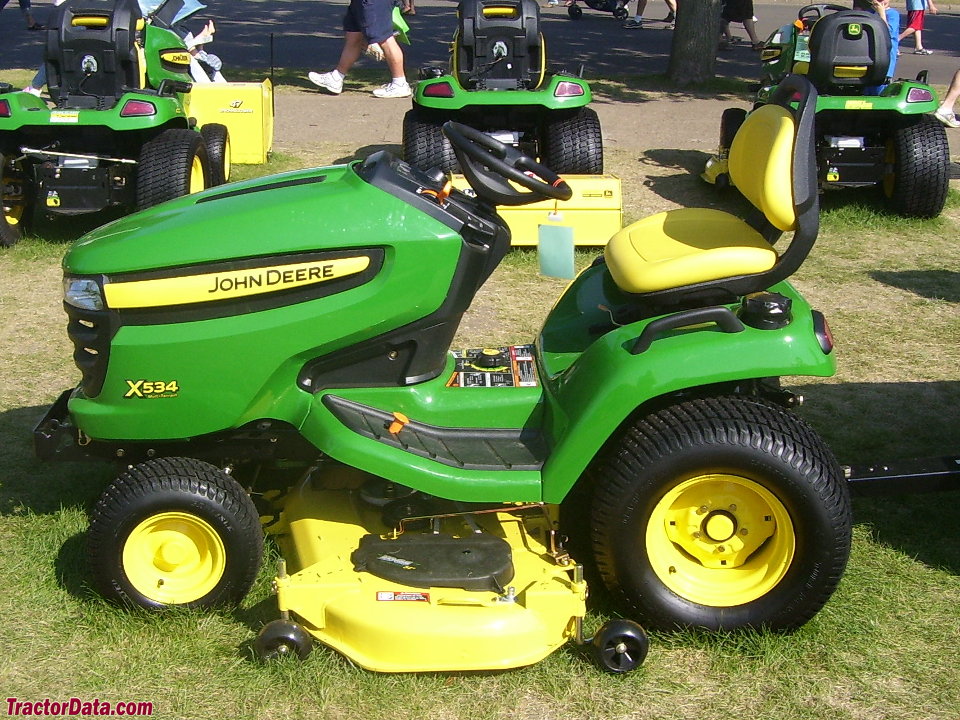

John Deere X534 left-side profile.

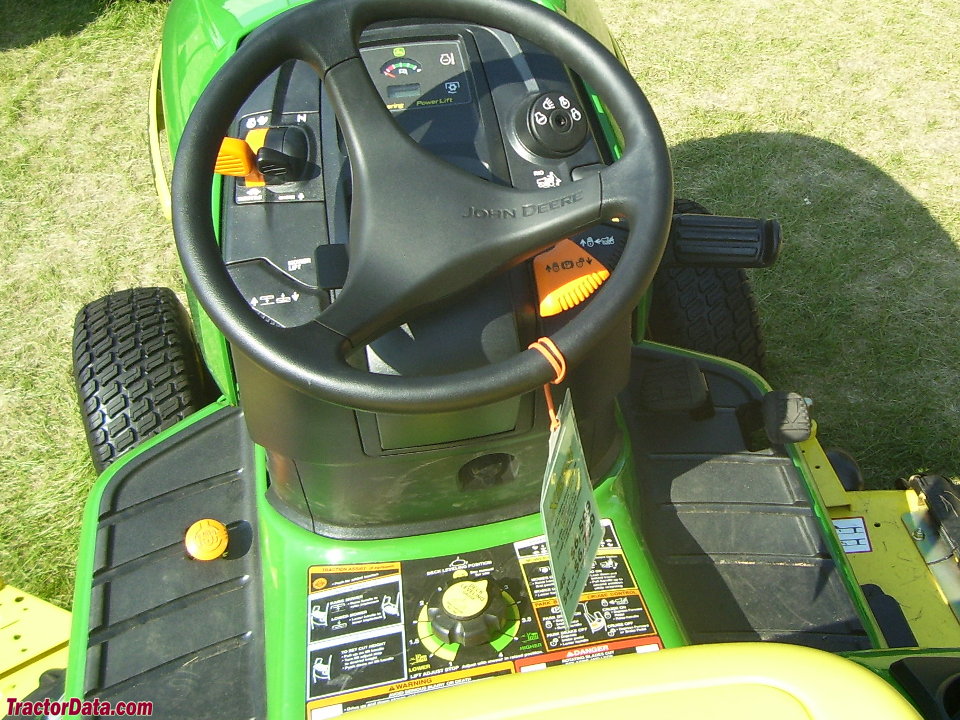

John Deere X534 operator station and controls.
