John Deere X585

The John Deere X585 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 745 cc 45.5 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Tuff Torq K92. Operating weight: 955 lbs 433 kg.

Overview

	2002 - 2006 HDGT X SeriesGarden tractor
2002 - 2006
HDGT X Series
Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $11,499 in 2002

Variants
X485	2WD two-wheel steer
X485AWS	all-wheel steer
X585	4WD
X585SE	upgraded seat, wheels, and brush guard

John Deere X585 Engine
25HP Kawasaki 745cc 2-cyl gasoline
Engine details ...

John Deere X585 Transmission
hydrostatic
Transmission details ...

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Open operator station. Optional hard or soft weather enclosures. Optional heater.

Capacity
Fuel	6.5 gal 24.6 L
Front axle	4.5 qts 4.3 L

Hydraulics
Pressure	1000 psi 69.0 bar
Valves	2
Total flow	6.2 gpm 23.5 lpm

Tractor hitch
Rear Type	0 OptOptional
	1-limited OptOptional
Rear lift	450 lbs 204 kg

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	540
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	55.7 inches 141 cm
Weight	955 lbs 433 kg
Front tire	18x8.5-10
Rear tire	26x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
Battery volts	12

References
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Lawn and Garden Product Information Handbook published in 2003, by John Deere
Lawn and Garden Product Information Handbook published in 2004, by John Deere
Lawn and Garden Product Information Handbook published in 2005, by John Deere
Premium Lawn and Garden Tractors published in 2004, by John Deere
Lawn and Garden Tractors published in 2000, by John Deere
Operator's Manual X575, X585 (OMM148365) published in 2002
Operator's Manual X575, X585 (OMM150217) published in 2003
Deere Season 2002 published by John Deere

Engine

Engine Detail — 745 cc / 45.5 ci Gasoline

Manufacturer	Kawasaki FD711D
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled horizontal-shaft V-Twin
The dealer sales manual identifies this engine as a FD671D-DFI. The Deere parts manual also lists a FD750D.
Displacement	745 cc 45.5 ci
Bore/Stroke	3.07x3.07 inches 78 x 78 mm
Power (gross)	25 hp 18.6 kW
Fuel system	fuel injected
Air cleaner	dual paper element
Compression	8.0:1
Idle RPM	1600-3550
Torque	36.1 lb-ft 49.0 Nm
Torque RPM	2000
Starter volts	12
Oil capacity	1.9 qts 1.8 L
Coolant capacity	4.2 qts 4.0 L

John Deere X585 Engine

Transmission

Transmission — Tuff Torq K92

Transmission	Tuff Torq K92
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.0 qts 6.6 L
Oil type	Low Viscosity HY-GARD (J20D)	Low Viscosity HY-GARD
With 26x12-12 rear tires.

	Low Viscosity HY-GARD

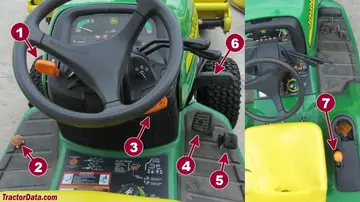

X585 Transmission Controls
1	Throttle
2	Differential Lock
3	Parking Brake
4	Forward
5	Reverse
6	Brake
7	Four-wheel Drive

Dimensions

John Deere X585 Tires
Ag rear	23x12.00-12
Lawn/turf front	18x8.5-10
Lawn/turf rear	26x12-12
Lawn/turf front	18x7-8
	18x8.50-8
Lawn/turf rear	26x10.5-12

Dimensions
Wheelbase	55.7 inches 141 cm
Length	75.0 inches 190 cm
Width	46.8 inches 118 cm
Height	51.2 inches 130 cm
Weight	955 lbs 433 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
62" mid-mount mower deck
Snowblower
Blade
Front-end loader
The X585 was compatible with a 42-inch (M04390X/M04391X) hydraulic tiller on the three-point hitch. The models 450 and 647 tillers required the three-point hitch and rear PTO.
