John Deere X739

The John Deere X739 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 745 cc 45.5 ci engine. The listed engine power is Gasoline (gross): 25.5 hp / 19.0 kW. Transmission: Tuff Torq K90. Operating weight: 1044 lbs*Weight of tractor only. 473 kg.

Overview

	2013 - X700 SeriesGarden tractor
2013 -
X700 Series
Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price	$11,719 (2018 )
	$12,119 (2019 )

Variants
X739	4WD 4-wheel steer
X738	4WD 2-wheel steer
X734	2WD 4-wheel steer
X730	2WD 2-wheel steer

John Deere X739 Engine
25.5HP Kawasaki 745cc 2-cyl gasoline
Fuel tank	5.2 gal 19.7 L
Engine details ...

John Deere X739 Transmission
hydrostatic
Transmission details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power four-wheel steering
Internal wet disc brakes
Open operator station with tilt-back seat. Optional hard cab.

Tractor hitch
Rear Type	0 OptOptional
	1-limited OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	540
Front PTO	independent
Clutch	electro-hydraulic

Dimensions & Tires
Wheelbase	54.5 inches 138 cm
Weight	1044 lbs 473 kg
Front tire	18x8.50-10
Rear tire	26x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	regulated
Charging amps	20
Battery volts	12

References
Riding Lawn Tractors published in 2021, by John Deere
Riding Lawn Tractors published in 2022, by John Deere
Signature Series published in 2013, by John Deere
Signature Series published in 2016, by John Deere
Signature Series published in 2018, by John Deere
Operator's Manual X710, X730, X734, X738, X379 (OMM166905) published in 2012

Engine

Engine Detail — 745 cc / 45.5 ci Gasoline

Manufacturer	Kawasaki FD750D
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled horizontal-shaft V-Twin
Displacement	745 cc 45.5 ci
Bore/Stroke	3.07x3.07 inches 78 x 78 mm
Power (gross)	25.5 hp 19.0 kW
Fuel system	electronic fuel injection (EFI)
Starter	electric
Starter volts	12

John Deere X739 Engine

Transmission

Transmission — Tuff Torq K90

Transmission	Tuff Torq K90
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

X739 Transmission Controls
1	Throttle
2	Brake
3	Forward
4	Reverse
5	Parking brake
6	Cruise control
7	Differential lock

Dimensions

John Deere X739 Tires
Lawn/turf front	18x8.50-10
Lawn/turf rear	26x12-12

Dimensions
Wheelbase	54.5 inches 138 cm
Length	75 inches 190 cm
Height	51.2 inches*Height at seat. 130 cm
Weight	1044 lbs*Weight of tractor only. 473 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

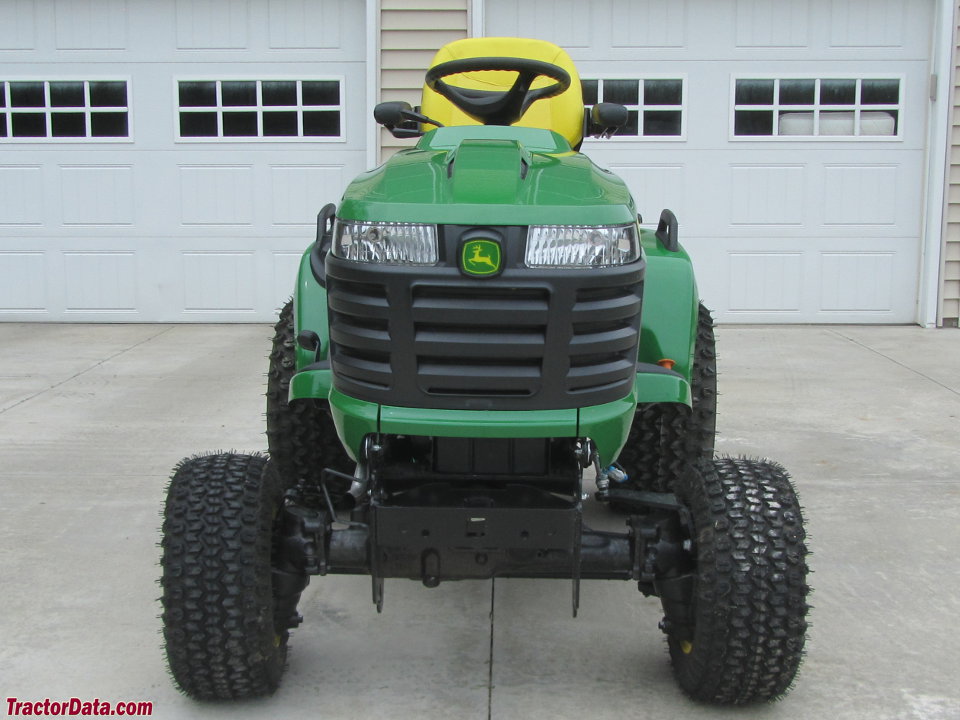

John Deere X739 garden tractor.

Early-style John Deere X739 operator station and controls.

Detail of the John Deere X739 steerable rear wheel.

Optional X700 series air-ride seat mounted on the Deere X739.

John Deere X739 with 60-inch mower deck.
