John Deere X744

The John Deere X744 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 904 cc 55.2 ci engine. The rated power output is 24 hp 17.9 kW. Transmission: Tuff Torq K92. Operating weight: 1060 lbs*Weight of tractor only. 480 kg.

Overview

	2006 - 2012 Select X700 SeriesGarden tractor
2006 - 2012
Select X700 Series
Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $10,899 in 2011

Variants
X740	two-wheel drive
X744	2WD, all-wheel steer
X748	four-wheel drive
X749	4WD, all-wheel steer

John Deere X744 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	four-wheel hydrostatic power
Wet disc brakes
Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab.

Hydraulics
Pressure	924 psi 63.7 bar
Valves	2
Total flow	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type	0 OptOptional
	1-Limited OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	540
Mid PTO	independent
Mid PTO Type	2000
Front PTO	optional
Front PTO Type	2000

Dimensions & Tires
Wheelbase	54.5 inches 138 cm
Weight	1060 lbs 480 kg
Front tire	18x8.8-8
Rear tire	26x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	500
Battery volts	12

References
Select Series Tractors published in 2007, by John Deere
Select Series Tractors published in 2009, by John Deere
Select Series Tractors published in 2012, by John Deere
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere

Engine

Engine options
24HP Yanmar 1116cc 3-cyl diesel
24HP Yanmar 904cc 3-cyl diesel

Engine Detail — 1116 cc / 68.1 ci Diesel

Manufacturer	Yanmar 3TNV76
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled OHV
Original engine. The 3TNV76 was used from 2006 through the 2010 model year.
Displacement	1116 cc 68.1 ci
Power (gross)	24 hp 17.9 kW
Fuel system	indirect injection
Air cleaner	paper element
Compression	23.4:1
Idle RPM	1450-3425
Starter volts	12
Starter power	1.6 hp 1.2 kW
Oil capacity	2.75 qts 2.6 L
Coolant capacity	3 qts 2.8 L

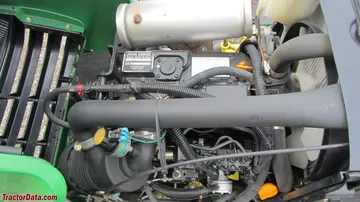

John Deere X744 Engine

Engine Detail — 904 cc / 55.2 ci Diesel

Manufacturer	Yanmar 3TNM72
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled OHV
In 2011, (tractor serial number 060001) the 3TNM72 replaced the original engine.
Displacement	904 cc 55.2 ci
Power (gross)	24 hp 17.9 kW
Fuel system	indirect injection
Air cleaner	paper element
Pre-heating	glow plugs
	block heater OptOptional
	coolant heater OptOptional
Compression	23.4:1
Idle RPM	1450-3600
Oil capacity	3.4 qts 3.2 L
Coolant capacity	3 qts 2.8 L

Transmission

Transmission — Tuff Torq K92

Transmission	Tuff Torq K92
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	6 qts 5.7 L
Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard.
26-inch tires.

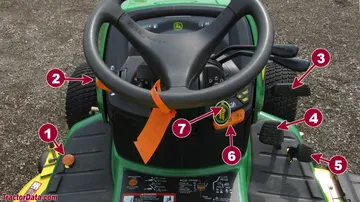

X744 Transmission Controls
1	Differential Lock
2	Throttle
3	Parking Brake
4	Forward
5	Reverse
6	Parking Brake
7	Cruise Control

Dimensions

John Deere X744 Tires
Lawn/turf front	18x8.8-8
Lawn/turf rear	26x12-12

Dimensions
Wheelbase	54.5 inches 138 cm
Length	78.8 inches 200 cm
Width	46.8 inches 118 cm
Height	50 inches 127 cm
Weight	1060 lbs*Weight of tractor only. 480 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
62" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

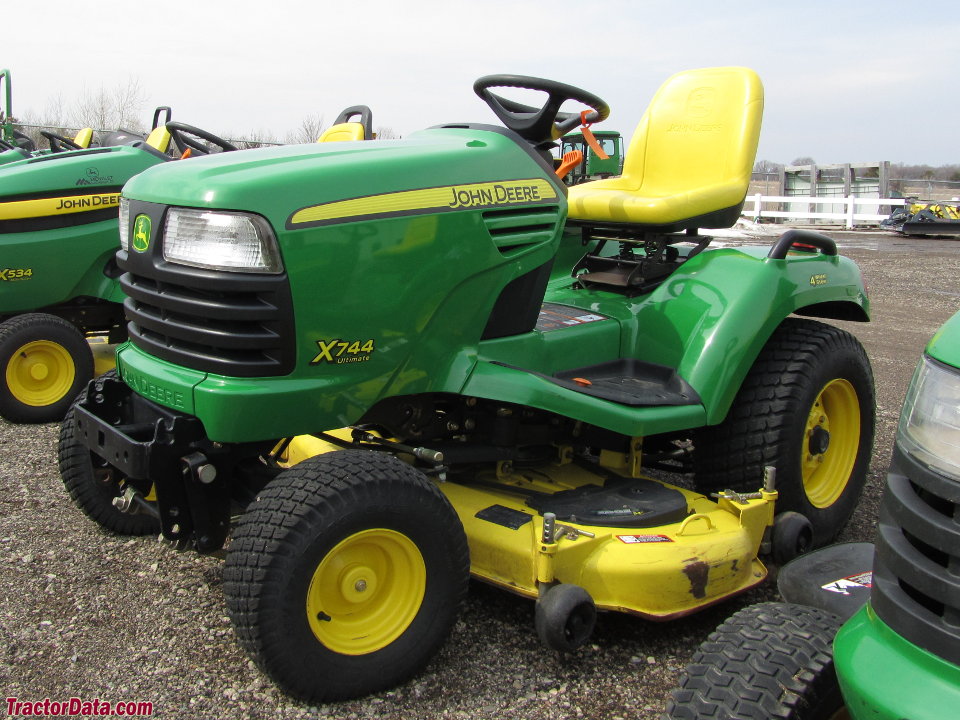

John Deere X744.

John Deere X744.

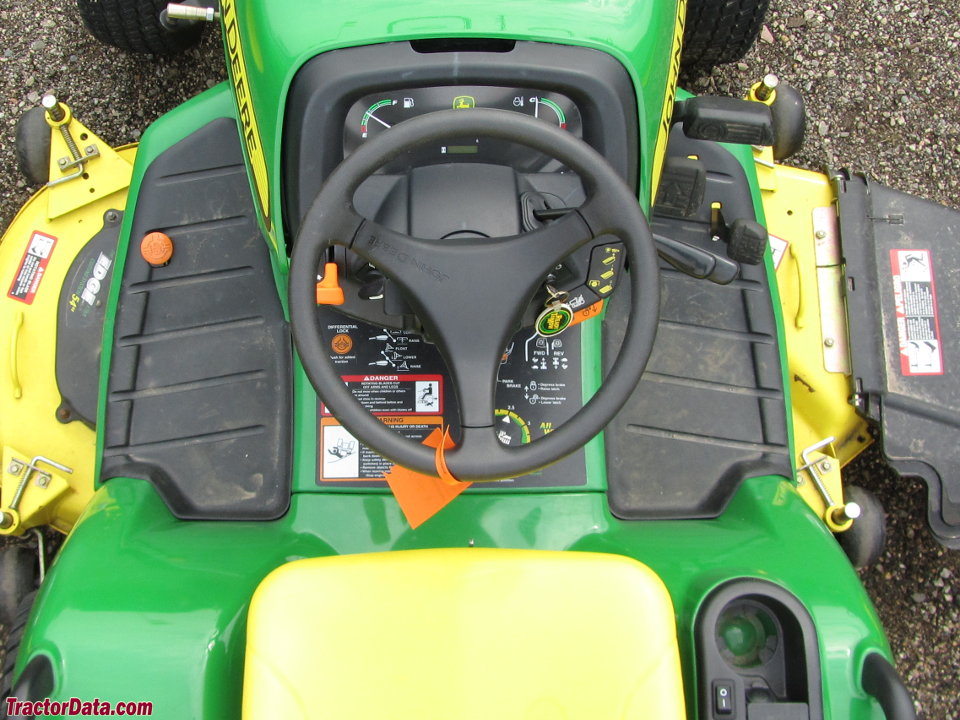

John Deere X744 operator station and controls.
