John Deere Z365R
The John Deere Z365R is a tractor produced by John Deere Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The rated power output is 24 hp 17.9 kW. Transmission: Hydro-Gear EZT. Operating weight: 575 lbs 260 kg.
Engine Power
24 hp
17.9 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
Hydro-Gear EZT
Operating Weight
575 lbs
260 kg
John Deere Lawn Tractors John Deere Z365R Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2021 -
Z300 SeriesZero-turn mower |
|---|---|
2021 - | |
Z300 Series | |
Zero-turn mower | |
2021 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | John Deere |
Zero-turn mower | |
Built in Greeneville, Tennessee, USA | |
Original price was $3,399 in 2021 | |
John Deere Z365R Engine | |
|---|---|
24HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
John Deere Z365R Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.7 inches
126 cm |
Weight | 575 lbs
260 kg |
Front tire | 13x5.0-6 |
Rear tire | 20x9.0-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
ZTrak Zero-Turn Mowers published in 2020, by John Deere |
Engine
| 2021 -
Z300 SeriesZero-turn mower |
|---|---|
2021 - | |
Z300 Series | |
Zero-turn mower | |
2021 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
Engine Detail — 724 cc / 44.2 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 724 cc
44.2 ci |
Bore/Stroke | 3.12x2.89 inches
79 x 73 mm |
Power | 24 hp
17.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2021 -
Z300 SeriesZero-turn mower |
|---|---|
2021 - | |
Z300 Series | |
Zero-turn mower | |
2021 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
Transmission — Hydro-Gear EZT
Transmission | Hydro-Gear EZT |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2021 -
Z300 SeriesZero-turn mower |
|---|---|
2021 - | |
Z300 Series | |
Zero-turn mower | |
2021 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
John Deere Z365R Tires | |
|---|---|
Lawn/turf front | 13x5.0-6 |
Lawn/turf rear | 20x9.0-10 |
Dimensions | |
|---|---|
Wheelbase | 49.7 inches
126 cm |
Length | 75.9 inches
192 cm |
Height | 41.2 inches
104 cm |
Weight | 575 lbs
260 kg |
Attachments
| 2021 -
Z300 SeriesZero-turn mower |
|---|---|
2021 - | |
Z300 Series | |
Zero-turn mower | |
2021 - | |
|---|---|
Z300 Series | |
Zero-turn mower |
48" Mower deck | |
|---|---|
Type | mid-mount John Deere |
3-blade | |
Cutting width | 48 inches
121 cm |
Photos

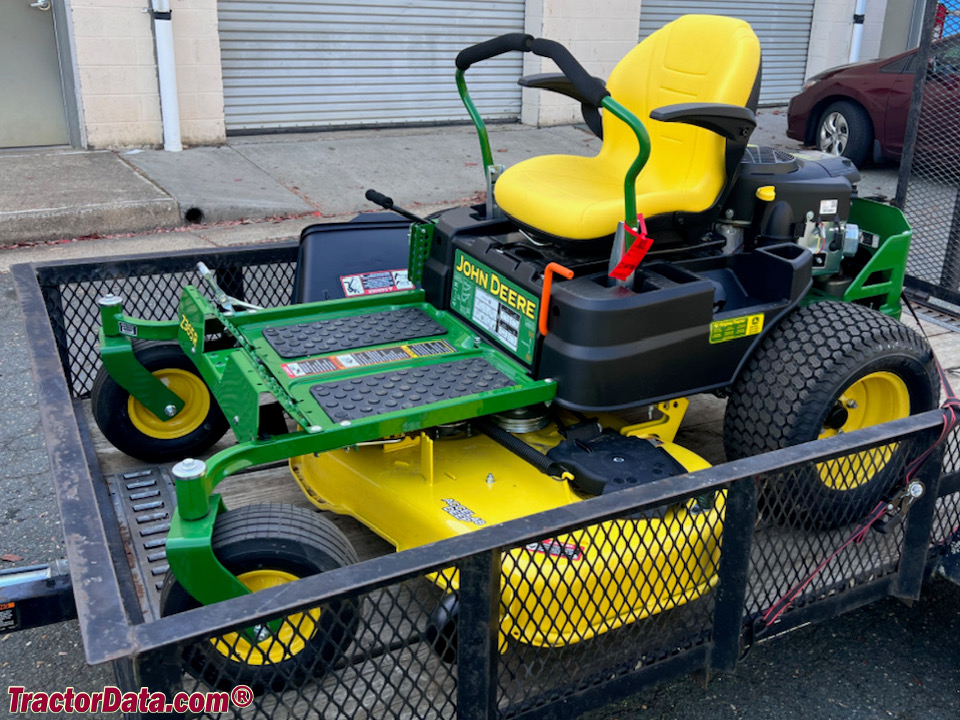

John Deere Z365R
