Kioti CK35
The Kioti CK35 is a tractor produced by Kioti. It is equipped with a 100.5 ci 1.6 L engine. The listed engine power is Diesel (gross): 34 hp / 25.4 kW. Transmission: Synchro shuttle. Operating weight: 3042 to 3118 pounds.
Engine Power
Diesel (gross): 34 hp / 25.4 kW
Fuel & Capacities
7.9 gal
29.9 L
Transmission
Synchro shuttle
Operating Weight
3042 to 3118 pounds
Overview
 | 2006 - 2014
CK SeriesCompact Utility tractor
CK Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kioti (a part of Daedong) |
Compact Utility tractor | |
Built in Daegu, South Korea | |
Variants | |
|---|---|
CK35 | shuttle |
CK35HST | hydrostatic |
Kioti CK35 Engine | |
|---|---|
Daedong 1.6L 3-cyl diesel | |
Fuel tank | 7.9 gal
29.9 L |
Engine details ...  | |
Kioti CK35 Power | |
|---|---|
Engine (gross) | 34 hp
25.4 kW |
Gear PTO (claimed) | 27.6 hp
20.6 kW |
Hydro PTO (claimed) | 26.5 hp
19.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Foldable ROPS. Canopy optional. |
Hydraulics | |
|---|---|
Valves | 0 to 2 |
Total flow | 12.9 gpm
48.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 1,764 lbs
800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 |
1000 OptOptional | |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 66.1 inches
167 cm |
Weight | 3042 to 3118 pounds |
Front tire | 7-14 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Kioti Compact Tractor CK25/CK30/CK35 published in 2007 | |
Kioti Compact Tractor CK20S/CK27/CK30/CK35 published in 2009 |
Engine
Engine Detail — 100.5 ci / 1.6 L Diesel
Manufacturer | Daedong 3A165LXD |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.5 ci
1.6 L |
Bore/Stroke | 3.43x3.64 inches
87 x 92 mm |
Power (gross) | 34 hp
25.4 kW |
Pre-heating | glow plugs |
Rated RPM | 2600 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
8-speed | |
hydrostatic |
Transmission — Synchro shuttle
Transmission | Synchro shuttle |
Gears | 8 forward and reverse |
 | |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Kioti CK35 Tires | |
|---|---|
Ag front | 7-14 |
Ag rear | 11.2-24 |
Lawn/turf front | 27x8.50-15 |
Lawn/turf rear | 41x14.00-20 |
Industrial front | 25x8.50-14 |
Industrial rear | 15-19.5 |
Dimensions | |
|---|---|
Wheelbase | 66.1 inches
167 cm |
Length | 122.2 inches
310 cm |
Width | 54.6 inches
138 cm |
Height | 96.8 inches
245 cm |
Gear Weight | 3042 lbs
1379 kg |
Hydro Weight | 3118 lbs
1414 kg |
Ground clearance | 13.82 inches
35 cm |
Photos

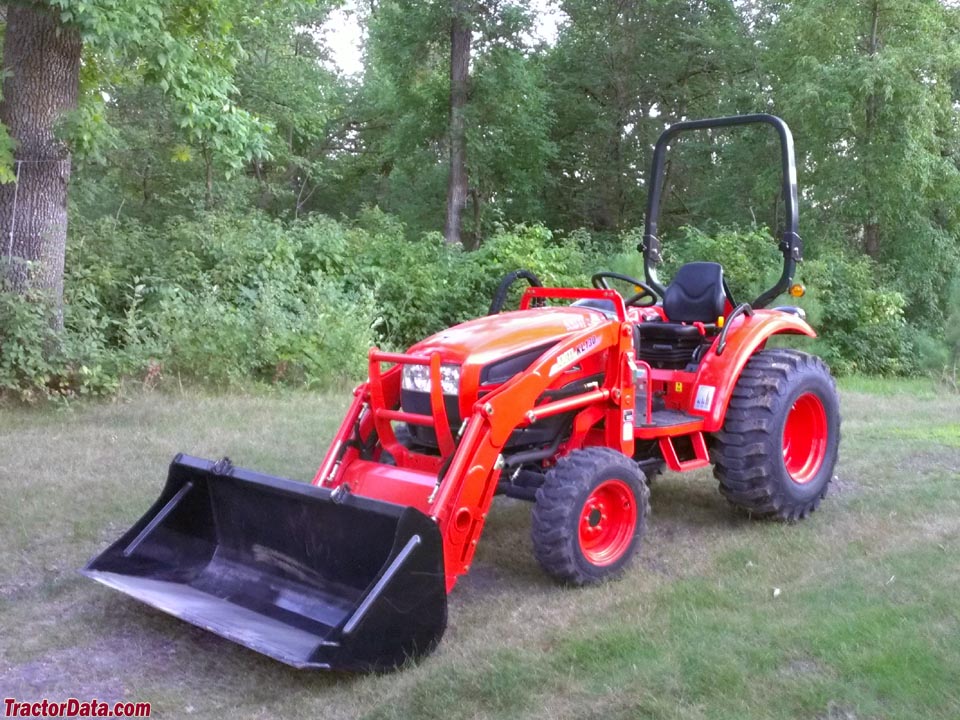

Kioti CK35
Recommended Implements & Sizing Guide
Engineering recommendations for Kioti CK35 based on its 34 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kioti CK35.
Estimated Continuous Field Runtime: 4.5 hrs
Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).
Estimated 75% Load Fuel Burn~1.8 gal/hr (6.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kioti CK35 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kioti CK35.
Converted Equivalents:
Horsepower (HP)34 hp
Kilowatts (kW)25.4 kW
Metric Horsepower (PS / CV)34.5 PS
