Kubota A-19

The Kubota A-19 is a tractor produced by Kubota. It is equipped with a 68.5 ci 1.1 L engine. The rated power output is 18.3 hp 13.6 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1477 lbs 669 kg.

Overview

	1988 - 1992 Aste SeriesSub-Compact Utility tractor
1988 - 1992
Aste Series
Sub-Compact Utility tractor

Production
Manufacturer	Kubota
Sub-Compact Utility tractor

Kubota A-19 Engine
Kubota 1.1L 3-cyl diesel
Fuel tank	4.5 gal 17.0 L
Engine details ...

Kubota A-19 Transmission
6-speed
Transmission details ...

Kubota A-19 Power
Engine	18.3 hp 13.6 kW

Mechanical
Four-wheel drive
Two-post ROPS.

Tractor hitch
Rear Type	0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	453@2600
	799@2600
	1194@2600

Dimensions & Tires
Wheelbase	53.2 inches 135 cm
Weight	1477 lbs 669 kg
Front tire	6-12
Rear tire	8.3-20
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 68.5 ci / 1.1 L Diesel

Manufacturer	Kubota D1105
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	68.5 ci 1.1 L
Bore/Stroke	3.07x3.09 inches 78 x 78 mm
Power	18.3 hp 13.6 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — 6 forward and 2 reverse

Gears	6 forward and 2 reverse

Dimensions

Kubota A-19 Tires
Standard tires (ag)	Front: 6-12. Rear: 8.3-20

Dimensions
Wheelbase	53.2 inches 135 cm
Length	99.8 inches 253 cm
Width	41.3 inches 104 cm
Height	50 inches 127 cm
Weight	1477 lbs 669 kg
Ground clearance	12.2 inches 30 cm
Front tread	32.3 inches 82 cm
Rear tread	31.9/35.4 inches 81/89 cm

Photos

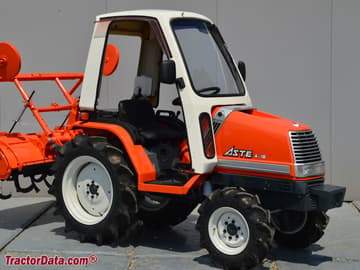

Kubota Aste A-19 compact utility tractor.
