Kubota B1-16
The Kubota B1-16 is a tractor produced by Kubota. It is equipped with a 56.57 ci 0.9 L engine. The rated power output is 16.5 hp 12.3 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1422 to 1521 pounds.
Engine Power
16.5 hp
12.3 kW
Fuel & Capacities
4.5 gal
17.0 L
Transmission
12 forward and 4 reverse
Operating Weight
1422 to 1521 pounds
Kubota B1-16 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1988
Bulltra SeriesSub-Compact Utility tractor |
|---|---|
1985 - 1988 | |
Bulltra Series | |
Sub-Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Sub-Compact Utility tractor | |
Built in Japan | |
Variants | |
|---|---|
B1-16D | 4WD |
Kubota B1-16 Engine | |
|---|---|
Kubota 0.9L 3-cyl diesel | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Kubota B1-16 Transmission | |
|---|---|
12-speed unsynchronized gear | |
Transmission details ...  |
Kubota B1-16 Power | |
|---|---|
Engine | 16.5 hp
12.3 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | manual |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/860/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.4 inches
135 cm |
Weight | 1422 to 1521 pounds |
Front tire | 4.00-12 |
2WD Rear tire | 8.3-20 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 56.57 ci / 0.9 L Diesel
Manufacturer | Kubota D950 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 56.57 ci
0.9 L |
Bore/Stroke | 2.95x2.76 inches
75 x 70 mm |
Power | 16.5 hp
12.3 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and 4 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 12 forward and 4 reverse |
Three gears (1-3), plus reverse, in two ranges with additional creeper range. | |
 | |
Dimensions
Kubota B1-16 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-12. Rear: 8.3-20 |
4WD Standard tires (ag) | Front: 5.00-12. Rear: 8.3-20 |
Dimensions | |
|---|---|
Wheelbase | 53.4 inches
135 cm |
Length | 91.3 inches
231 cm |
Width | 45.3 inches
115 cm |
2WD Height | 48.6 inches
123 cm |
4WD Height | 48.8 inches
123 cm |
2WD Weight | 1422 lbs
645 kg |
4WD Weight | 1521 lbs
689 kg |
2WD Front tread | 29.1 inches
73 cm |
4WD Front tread | 30.3 inches
76 cm |
Rear tread | 35.8/40.6 inches
90/103 cm |
Photos

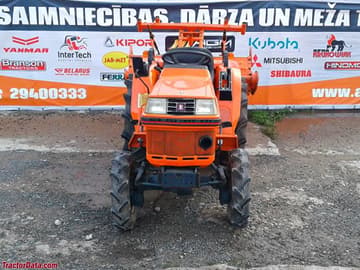

Kubota B1-16
Kubota B1-16
Kubota B1-16
Kubota B1-16
Kubota B1-16
Kubota B1-16 operator station and controls.
