Kubota B2230

The Kubota B2230 is a tractor produced by Kubota. It is equipped with a 61.1 ci 1.0 L engine. The listed engine power is Diesel (net): 19.4 hp / 14.5 kW; Diesel (gross): 21.7 hp / 16.2 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1587 to 2105 pounds.

Overview

	2007 - 2013 B30 SeriesCompact Utility tractor B30 Series Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota B2230 Engine
Kubota 1.0L 3-cyl diesel
Fuel tank	7.4 gal 28.0 L
Engine details ...

Kubota B2230 Power
Engine (gross)	21.7 hp 16.2 kW
Engine (net)	19.4 hp 14.5 kW
Gear PTO (claimed)	17.7 hp 13.2 kW
Hydro PTO (claimed)	16.8 hp 12.5 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Pressure	2205 psi 152.0 bar
Pump flow	5.4 gpm 20.4 lpm
Total flow	9.5 gpm 36.0 lpm
Steering flow	4.1 gpm 15.5 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	2138 lbs 969 kg

Power Take-off (PTO)
Gear Rear PTO	transmission
Hydro Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2592
Mid PTO	optional
Mid PTO Type	2500 (Kubota 10-tooth #5)
Engine RPM	2500@2600

Dimensions & Tires
Wheelbase	59.1 inches 150 cm
Weight	1587 to 2105 pounds
Front tire	6-12
Rear tire	9.5-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery volts	12

Engine

Engine Detail — 61.1 ci / 1.0 L Diesel

Manufacturer	Kubota D1005
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	61.1 ci 1.0 L
Bore/Stroke	2.99x2.90 inches 76 x 74 mm
Rated Power (net)	19.4 hp 14.5 kW
Power (gross)	21.7 hp 16.2 kW
Air cleaner	dry element
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

Transmission options
9-speed mechanical shuttle
hydrostatic

Transmission — 9 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	9 forward and reverse
With 9.5-16 rear tires. Reverse speeds are 1% faster than forward.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
With 9.5-16 rear tires.

Dimensions

Kubota B2230 Tires
Standard tires (ag)	Front: 6-12. Rear: 9.5-16
Lawn/turf front	22x8.50-12
Lawn/turf rear	31x13.5-15

Dimensions
Wheelbase	59.1 inches 150 cm
ROPS Length	107.7 inches 273 cm
Cab Length	111.6 inches 283 cm
Width	43.5 inches 110 cm
Height (ROPS)	89 inches 226 cm
Height (cab)	81.1 inches 205 cm
Ground clearance	9.5 inches 24 cm
Front tread	32.9 inches 83 cm
Rear tread	33.7 to 42.3 inches 85 to 107 cm

Kubota B2230 Weight
ROPS gear	1587 lbs 719 kg
ROPS hydro	1642 lbs 744 kg
Cab gear	2050 lbs 929 kg
Cab hydro	2105 lbs 954 kg

Photos

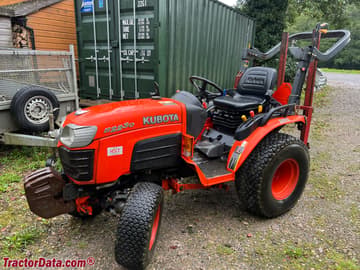

Kubota B2230
