Kubota GL19

The Kubota GL19 is a tractor produced by Kubota. It is equipped with a 85 ci 1.4 L engine. The rated power output is 18.7 hp 13.9 kW. Transmission: 16 forward and reverse. Operating weight: 2249 lbs 1020 kg.

Overview

	1990 - 1992 GL SeriesCompact Utility tractor
1990 - 1992
GL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota GL19 Engine
Kubota 1.4L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Kubota GL19 Power
Engine	18.7 hp 13.9 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	546/772/947/1254 (1.375)

Dimensions & Tires
Wheelbase	61 inches 154 cm
Weight	2249 lbs 1020 kg
Front tire	6-14
Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 85 ci / 1.4 L Diesel

Manufacturer	Kubota D1403
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	85 ci 1.4 L
Bore/Stroke	3.1x3.6 inches 79 x 91 mm
Power	18.7 hp 13.9 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed gear
16-speed power shift

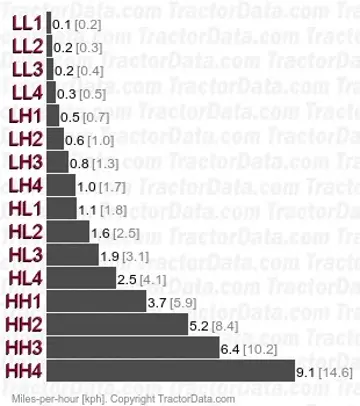

Transmission — 16 forward and reverse gear

Type	gear
Gears	16 forward and reverse
Four gears (1-4) in low/high ranges plus a creeper/field range shift with shuttle.

Transmission — 16 forward and reverse power shift

Type	power shift
Gears	16 forward and reverse
Eight power shift gears in two ranges with shuttle.

Dimensions

Kubota GL19 Tires
Standard tires (ag)	Front: 6-14. Rear: 8.3-24

Dimensions
Wheelbase	61 inches 154 cm
Length	116.1 inches 294 cm
Width	49.2 inches 124 cm
Height	56.7 inches 144 cm
Weight	2249 lbs 1020 kg
Ground clearance	13.2 inches 33 cm
Front tread	37.4 inches 94 cm
Rear tread	39.8/44.5 inches 101/113 cm

Photos

Kubota GL19 tractor photo
