Kubota GL280
The Kubota GL280 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: 16 forward and reverse. Operating weight: 2679 to 2976 pounds.
Engine Power
27.6 hp
20.6 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
16 forward and reverse
Operating Weight
2679 to 2976 pounds
Kubota GL280 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1993 - 1995
GL SeriesCompact Utility tractor |
|---|---|
1993 - 1995 | |
GL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
GL280 | ROPS |
GL280Q | cab |
Kubota GL280 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota GL280 Power | |
|---|---|
Engine | 27.6 hp
20.6 kW |
PTO (claimed) | 26.4 hp
19.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 5.6 gpm
21.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2061 lbs
934 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 544/770/944/1250 (1.375) |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 64.8 inches
164 cm |
Cab Wheelbase | 66.9 inches
169 cm |
Weight | 2679 to 2976 pounds |
Front tire | 8-16 |
Rear tire | 11.2-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.268x3.638 inches
83 x 92 mm |
Power | 27.6 hp
20.6 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |
Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |

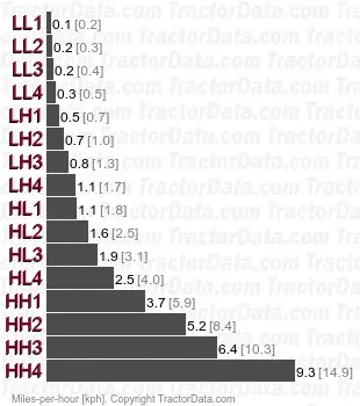

Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Dimensions
Kubota GL280 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 11.2-26 |
Dimensions | |
|---|---|
ROPS Wheelbase | 64.8 inches
164 cm |
Cab Wheelbase | 66.9 inches
169 cm |
ROPS Length | 120.1 inches
305 cm |
Cab Length | 123.2 inches
312 cm |
Width | 55.9 inches
141 cm |
Height (ROPS) | 78.5 inches
199 cm |
Height (cab) | 77.6 inches
197 cm |
ROPS Weight | 2679 lbs
1215 kg |
Cab Weight | 2976 lbs
1349 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 44.5 to 55.9 inches
113 to 141 cm |
