Massey Ferguson 1125

The Massey Ferguson 1125 is a tractor produced by Massey Ferguson. It is equipped with a 87.2 ci 1.4 L engine. The rated power output is 25 hp 18.6 kW. Transmission: 16 forward and reverse. Operating weight: 2424 to 2634 pounds.

Overview

	1992 - 1993 Compact Utility tractorIseki built
1992 - 1993
Compact Utility tractor
Iseki built

1992 - 1993
Compact Utility tractor
Iseki built

Production
Distributor	Massey Ferguson
Manufacturer	Iseki
Compact Utility tractor
Original price was $12,000 in 1992

Massey Ferguson 1125 Engine
Iseki 1.4L 3-cyl diesel
Engine details ...

Massey Ferguson 1125 Transmission
16-speed partially synchronized
Transmission details ...

Massey Ferguson 1125 Power
Engine	25 hp 18.6 kW
PTO (claimed)	22.5 hp 16.8 kW

Mechanical
Two- or four-wheel drive
Steering	power
Mechanical wet disc brakes
Two-post ROPS.

Capacity
Fuel	7.9 gal 29.9 L
Hydraulic system	6.6 gal 25.0 L
Steering	2.6 qts 2.5 L

Hydraulics
Type	open center
Capacity	6.6 gal 25.0 L
Pressure	2133 psi 147.1 bar
Valves	0 to 2
Pump flow	6.9 gpm 26.1 lpm
Steering cap.	2.6 qts 2.5 L

Tractor hitch
Rear Type	I
Control	position and response control
Rear lift (at ends)	2866 lbs 1300 kg
Rear lift (at 24"/610mm)	1940 lbs 879 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540 (1.375)
Mid PTO	independent OptOptional
Mid PTO Type	1960 (1.00)
Engine RPM	1960@2600

Dimensions & Tires
Wheelbase	63.8 inches 162 cm
Weight	2424 to 2634 pounds
Front tire	5.00-15
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	622
Battery volts	12

Engine

	1992 - 1993 Compact Utility tractorIseki built
1992 - 1993
Compact Utility tractor
Iseki built

1992 - 1993
Compact Utility tractor
Iseki built

Engine Detail — 87.2 ci / 1.4 L Diesel

Manufacturer	Iseki E3AG1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	87.2 ci 1.4 L
Bore/Stroke	3.307x3.385 inches 84 x 86 mm
Power	25 hp 18.6 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Pre-heating	glow plugs
Rated RPM	2600
Torque	66.5 lb-ft 90.2 Nm
Torque RPM	1600
Starter volts	12
Starter power	1.9 hp 1.4 kW
Oil capacity	5.1 qts 4.8 L
Coolant capacity	7.4 qts 7.0 L

Transmission

	1992 - 1993 Compact Utility tractorIseki built
1992 - 1993
Compact Utility tractor
Iseki built

1992 - 1993
Compact Utility tractor
Iseki built

Transmission — 16 forward and reverse partially synchronized

Type	partially synchronized
Gears	16 forward and reverse
Clutch	225mm disc

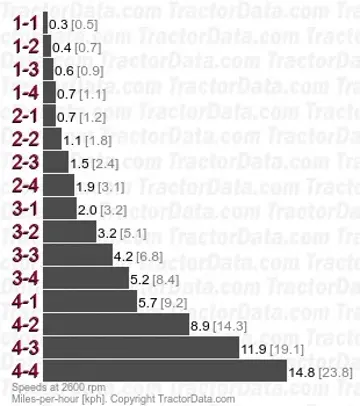

Four gears (1-4) in four ranges (1-4) with shuttle. Synchronized shifting in gears 3 and 4.
With 11.2-24 rear tires. Reverse speeds are 5% slower than forward speeds.

Dimensions

	1992 - 1993 Compact Utility tractorIseki built
1992 - 1993
Compact Utility tractor
Iseki built

1992 - 1993
Compact Utility tractor
Iseki built

Massey Ferguson 1125 Tires
Ag front	5.00-15 (2WD)
	7x16 (4WD)
Ag rear	11.2-24
Lawn/turf front	24x8.50-12 (2WD)
	212/80D-15 (4WD)
Lawn/turf rear	355/80D-20

Dimensions
Wheelbase	63.8 inches 162 cm
Length	117.7 inches 298 cm
Width	52 inches 132 cm
Height (ROPS)	81.3 inches 206 cm
2WD Weight	2424 lbs 1099 kg
4WD Weight	2634 lbs 1194 kg
Ground clearance	11.4 inches 28 cm
2WD Front tread	37.8 to 41.8 inches 96 to 106 cm
4WD Front tread	42.2 inches 107 cm
Rear tread	40.2 to 52.75 inches 102 to 133 cm

Attachments

	1992 - 1993 Compact Utility tractorIseki built
1992 - 1993
Compact Utility tractor
Iseki built

1992 - 1993
Compact Utility tractor
Iseki built

Photos

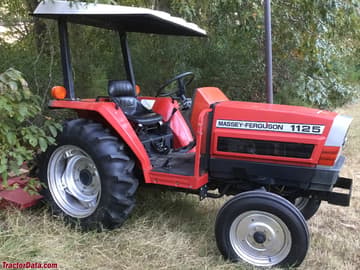

Massey Ferguson 1125
