Kubota GL281
The Kubota GL281 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 28.6 hp 21.3 kW. Transmission: U-Shift. Operating weight: 2679 to 3086 pounds.
Engine Power
28.6 hp
21.3 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
U-Shift
Operating Weight
2679 to 3086 pounds
Kubota GL281 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1996 - 2001
GL SeriesCompact Utility tractor |
|---|---|
1996 - 2001 | |
GL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota GL281 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota GL281 Power | |
|---|---|
Engine | 28.6 hp
21.3 kW |
PTO (claimed) | 27.6 hp
20.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 5.9 gpm
22.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 1918 lbs
870 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 545@2700 |
771@2700 | |
945@2700 | |
1252@2700 | |
-771@2700 | |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 64.8 inches
164 cm |
Cab Wheelbase | 66.9 inches
169 cm |
Weight | 2679 to 3086 pounds |
Front tire | 8-16 |
Rear tire | 11.2-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
GL (T0270-1920-8) published in 1996 | |
Grandel 1 Plus published in 1994, by Kubota |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.268x3.638 inches
83 x 92 mm |
Power | 28.6 hp
21.3 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |

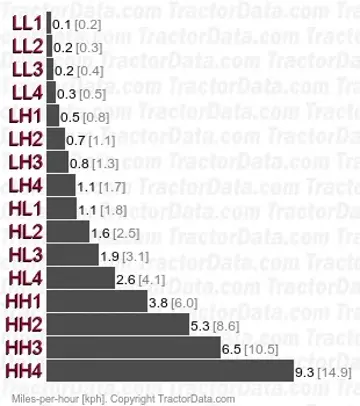

Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |
Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — U-Shift
Transmission | U-Shift |
Type | power shift |
Gears | 16 forward and reverse |
Eight power-shift gears in two ranges with shuttle. | |
Dimensions
Kubota GL281 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 11.2-26 |
Dimensions | |
|---|---|
ROPS Wheelbase | 64.8 inches
164 cm |
Cab Wheelbase | 66.9 inches
169 cm |
ROPS Length | 120.1 inches
305 cm |
Cab Length | 123.2 inches
312 cm |
Width | 55.1 inches
139 cm |
Height (ROPS) | 78.5 inches
199 cm |
Height (cab) | 78 inches
198 cm |
ROPS Weight | 2679 lbs
1215 kg |
Cab Weight | 3086 lbs
1399 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 44.5 to 55.9 inches
113 to 141 cm |
Photos
Kubota GL281
Kubota GL281
Kubota GL281
Kubota GL281
Kubota GL281
Kubota GL281 cab interior.
